2 Model MGR13C/MGR11U - MagneW3000 Electromagnetic FLowmeter Hyper-Fill
2 : Instrument installation
2-1 : Converter installation
(1) Mount the converter by four M4 screws. (M4 screws are not supplied with the
converter.)
(2) Rubber bush is attached to the bracket. Tighten the screws through the rubber bush
and mount the converter. Handle the rubber bush with care because the rubber
bush isolates the converter housing from the mounting wall.
(3) Locate the converter so that switches and terminals face to the front for easy
maintenance.
(4) One converter includes maximum four main boards. Each main board drives each
detector.
~Note • Do not mount the converter in the humid environment.
• Do not mount the converter where water splashes.

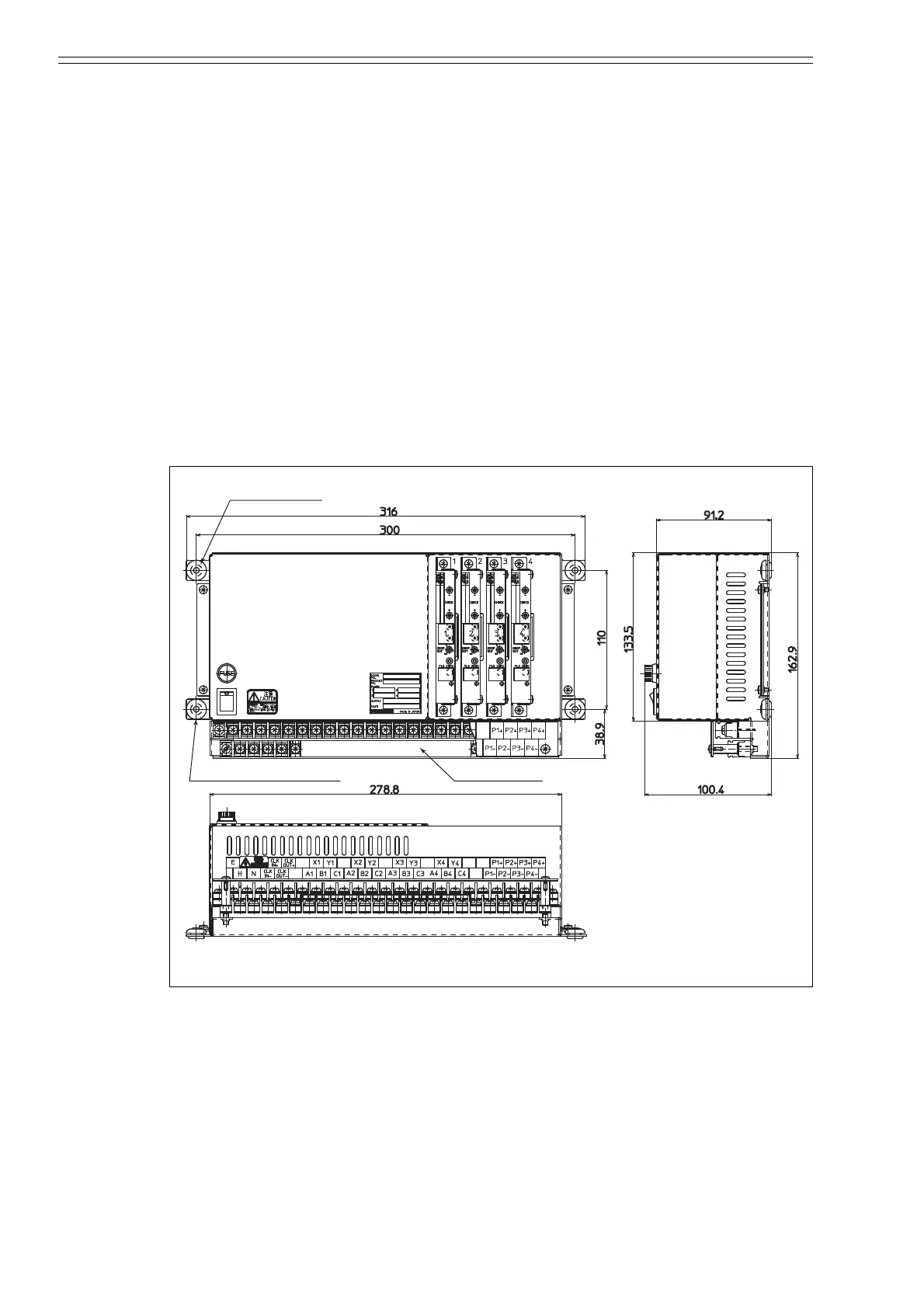

Figure 1
Rubber bush
Shield plate
4- 4.5 for M4 screw
φ
[Unit: mm]
