11 AB-6650

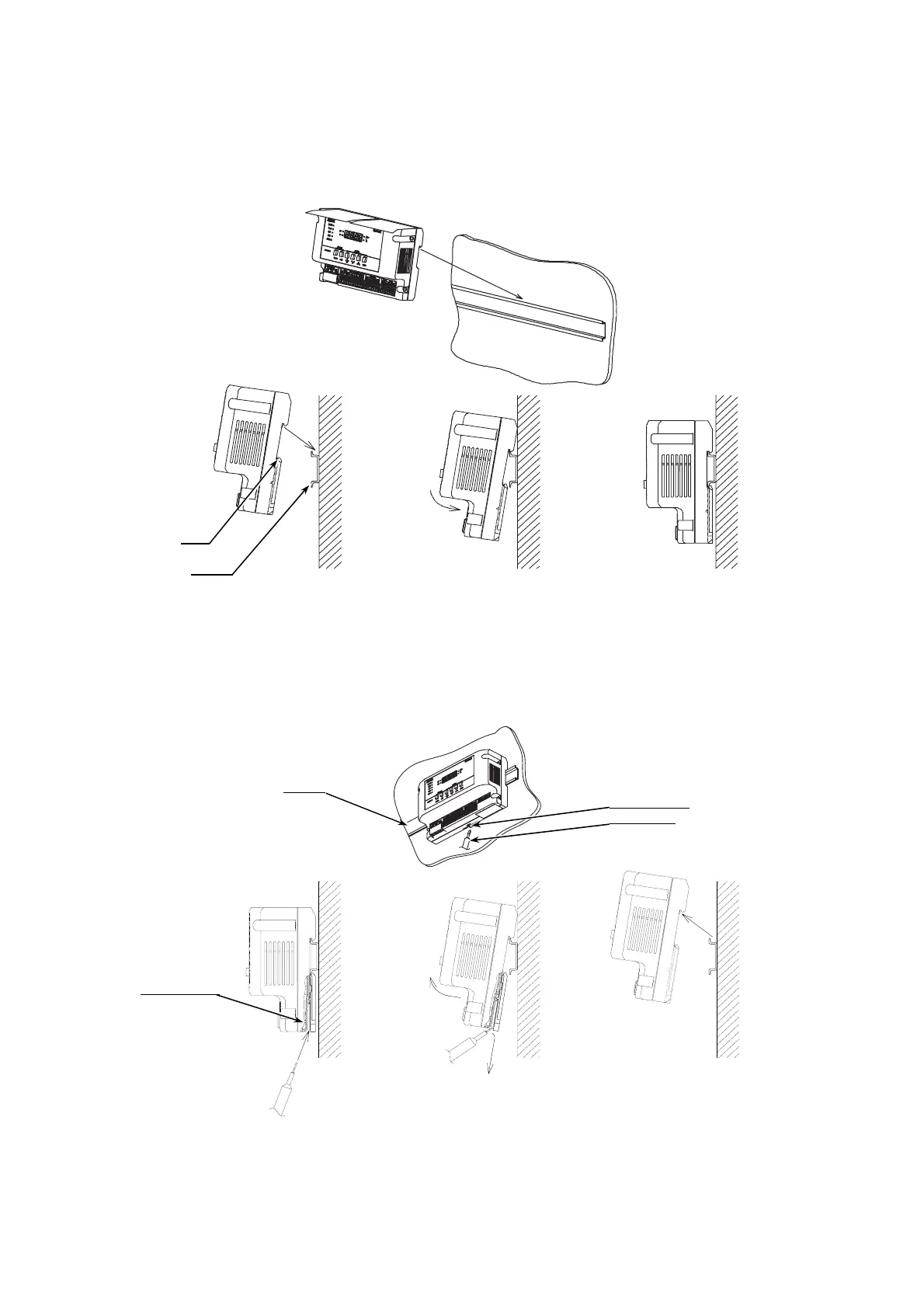

Installation procedure: Controller onto DIN rail
To mount onto DIN rail, DIN rail mounting brackets (Part No. 83104567-001) are required. Be sure to separately order
the brackets.
Mount the controller onto the DIN rail so that it does not fall from the DIN rail. Fix the bilateral sides of the controller with
DIN rail mounting brackets.
Controller
DIN rail
Controller
Hook
DIN rail
Figure 10. Controller installation onto DIN rail
Detaching procedure: Controller from DIN rail
To detach the controller from DIN rail, unhook the controller by pulling the DIN rail holder downward using a screwdriver
and lifting the lower part of the body as shown in Fig. 11. Do not strongly pull the DIN rail holder. If DIN rail holder comes
off from the controller, reinsert it until it clicks.
Controller
DIN rail
DIN rail holder
Screwdriver
DIN rail holder
Screwdriver
Figure 11. Controller detaching from DIN rail
