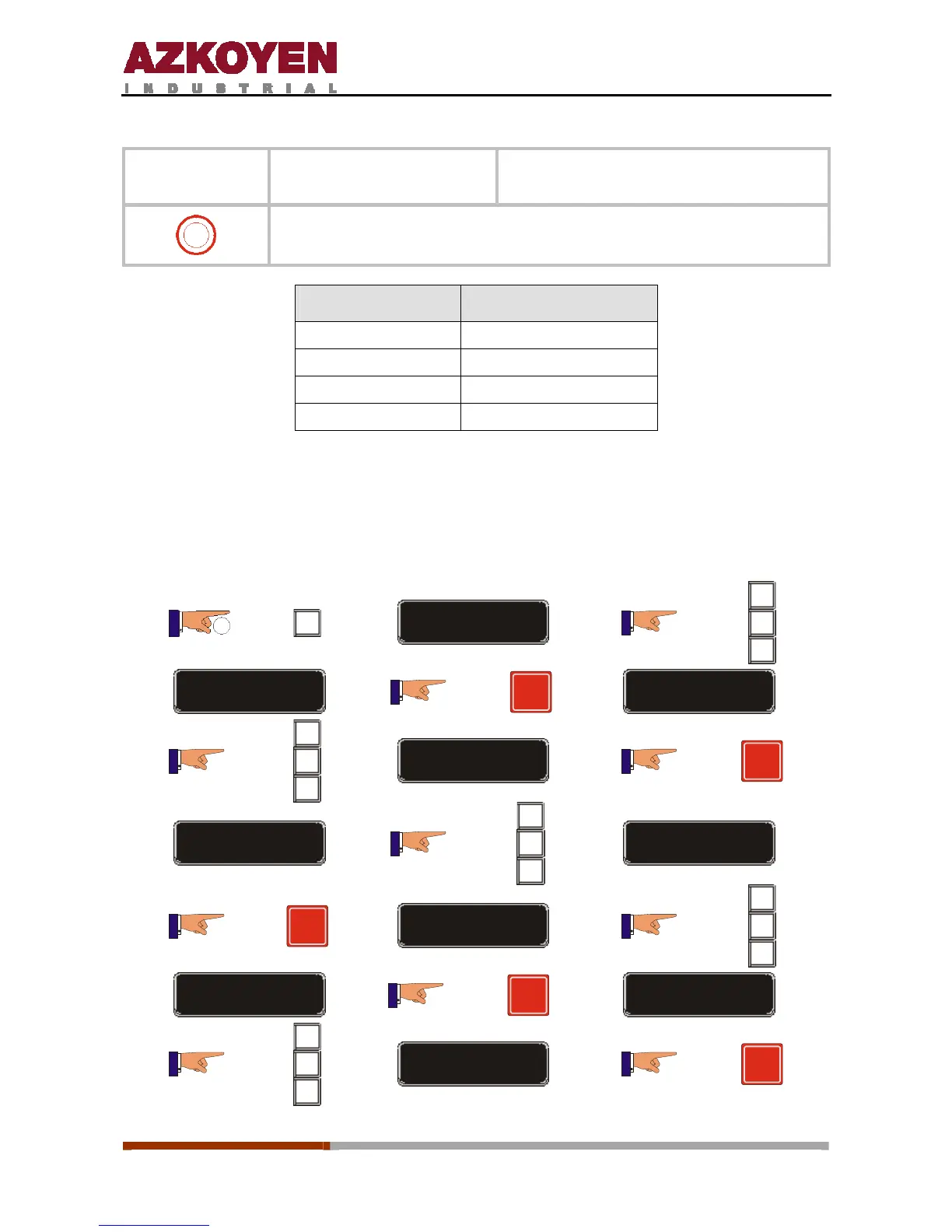

Function 451
<<EXTRACT DEV>>
Number of connectors on selection
button circuit boards.
2
This option allows you to define the number of connectors there are on
the extraction boards installed in the racks of the machine.
RACKS LOCATION
DOR Door
CAB Cabinet
CEN Centre rack
HAF Half channel rack
You programme the type of board, not the number of connectors. The possible values are: 5,
8, 9 or 13. The board with 13 is made up of an 8 connector board connected to a 5 connector
board.
If a rack does not exist, you should programme 255 for this rack.
2”
C
FUNCTION = 000
A
B
C
FUNCTION = 451
R
RACK DOR = 009
A
B
C
RACK DOR = XXX
R
RACK CAB = 008
A
B
C
RACK CAB = XXX
R
RACK CEN = 008
A
B
C
RACK CEN = XXX
R
RACK MED = 005
A
B
C
RACK MED = XXX
R
