User Manual
Page 13 of 44

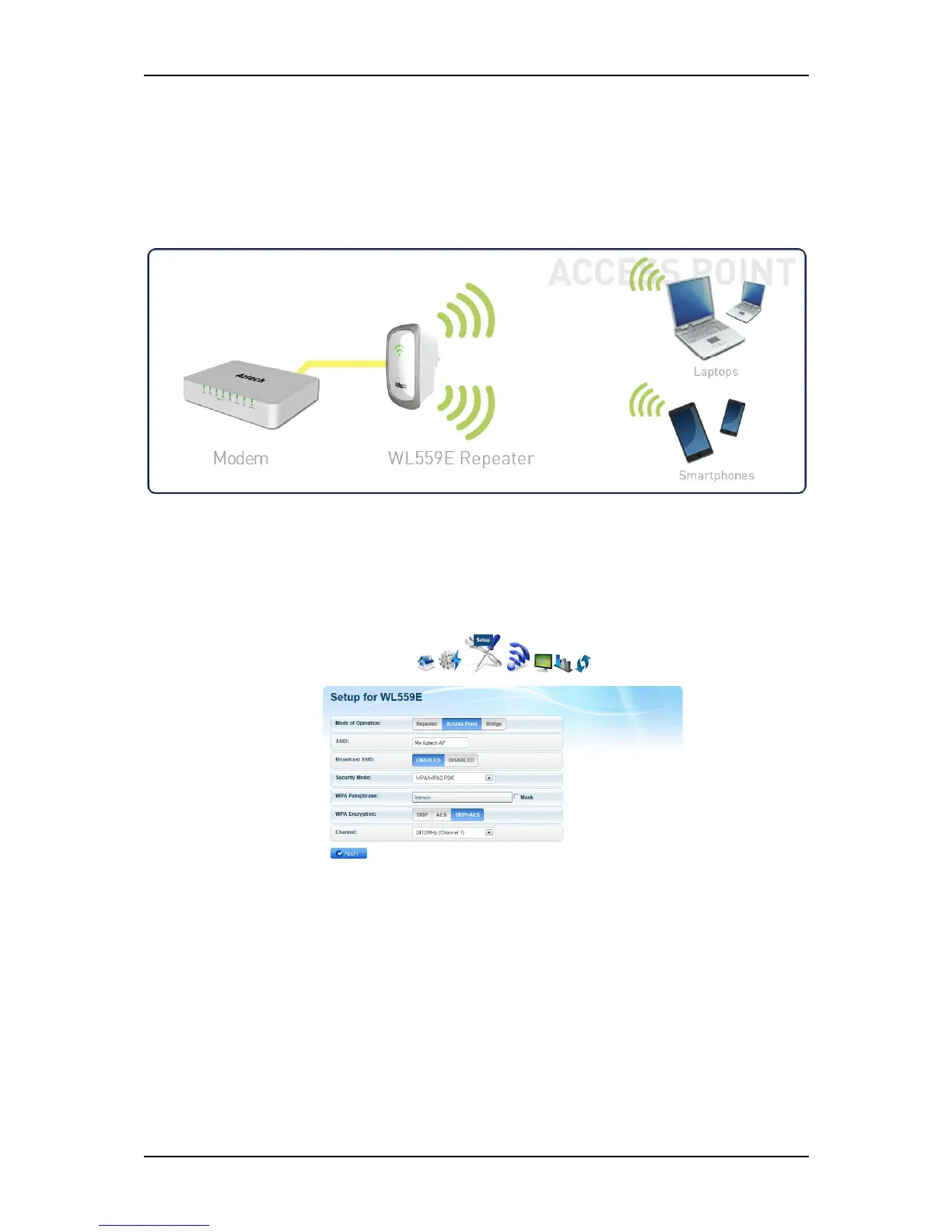

Access Point (AP)
Setup your WL559E as an access point to provide wireless network to router
that doesn’t have wireless feature.
a. Plug your WL559E to a power outlet.
b. Connect an Ethernet cable between the WL559E and Computer.
c. Launch web browser and you will be directed to the User Interface.
d. Go to Setup, set Mode of Operation to Access Point.
e. Type the name of your wireless network under SSID.
f. Type the password of the wireless network in the WPA Passphrase
textbox and click apply.
g. Connect the WL559E to router’s LAN port after the settings have
been saved.
