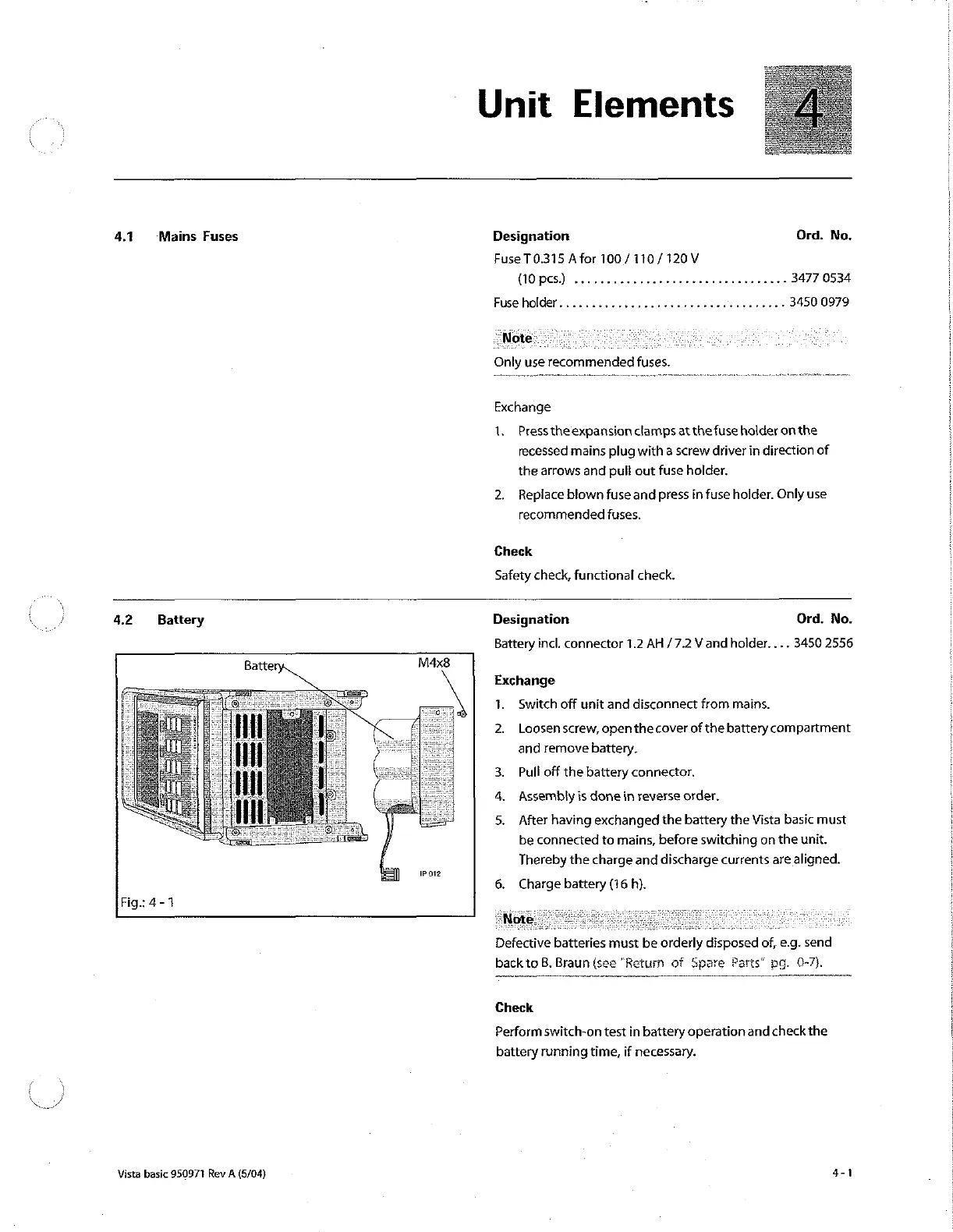

B. Braun Vista basic - Unit Elements; Mains Fuses; Battery

Unit Elements
41 Mains Fuses
Designation Ord. No.
Fuse T 0.315 A for 100/110/120V
(10 рс$.) .......- ke 3477 0534
Fuse holder. ......,..,.,.................,.... 3450 0979
“Note;
Only use recommended fuses.
Exchange
1. Presstheexpansion damps at the fuse holder on the
recessed mains plug with a screw driver in direction of
the arrows and pull out fuse holder.
2. Replaceblownfuseandpress in fuse holder. Only use
recommended fuses.
Check
Safety check, functional check.
4.2 Battery
Fig: 4-1
Vista basic 950971 Rev A (5/04)
Designation Ord. No.
Battery incl. connector 1.2 AH /7.2 V and holder. ... 3450 2556
Exchange
1. Switch off unit and disconnect from mains.
2. Loosenscrew, open the cover of the battery compartment
and remove battery.
Pull off the battery connector.
4. Assembly is done in reverse order.
After having exchanged the battery the Vista basic must
be connected to mains, before switching on the unit.
Thereby the charge and discharge currents are aligned.
6. Charge battery (16 h).
Defective batteries must be orderly disposed of, e.g. send
back to B. Braun (see "Return of Spare Parts” pg. 0-7).
Check
Perform switch-on test in battery operation and check the
battery running time, if necessary.
