B. Braun Vista basic - Door Lock

Unit Elements
43 Door Lock

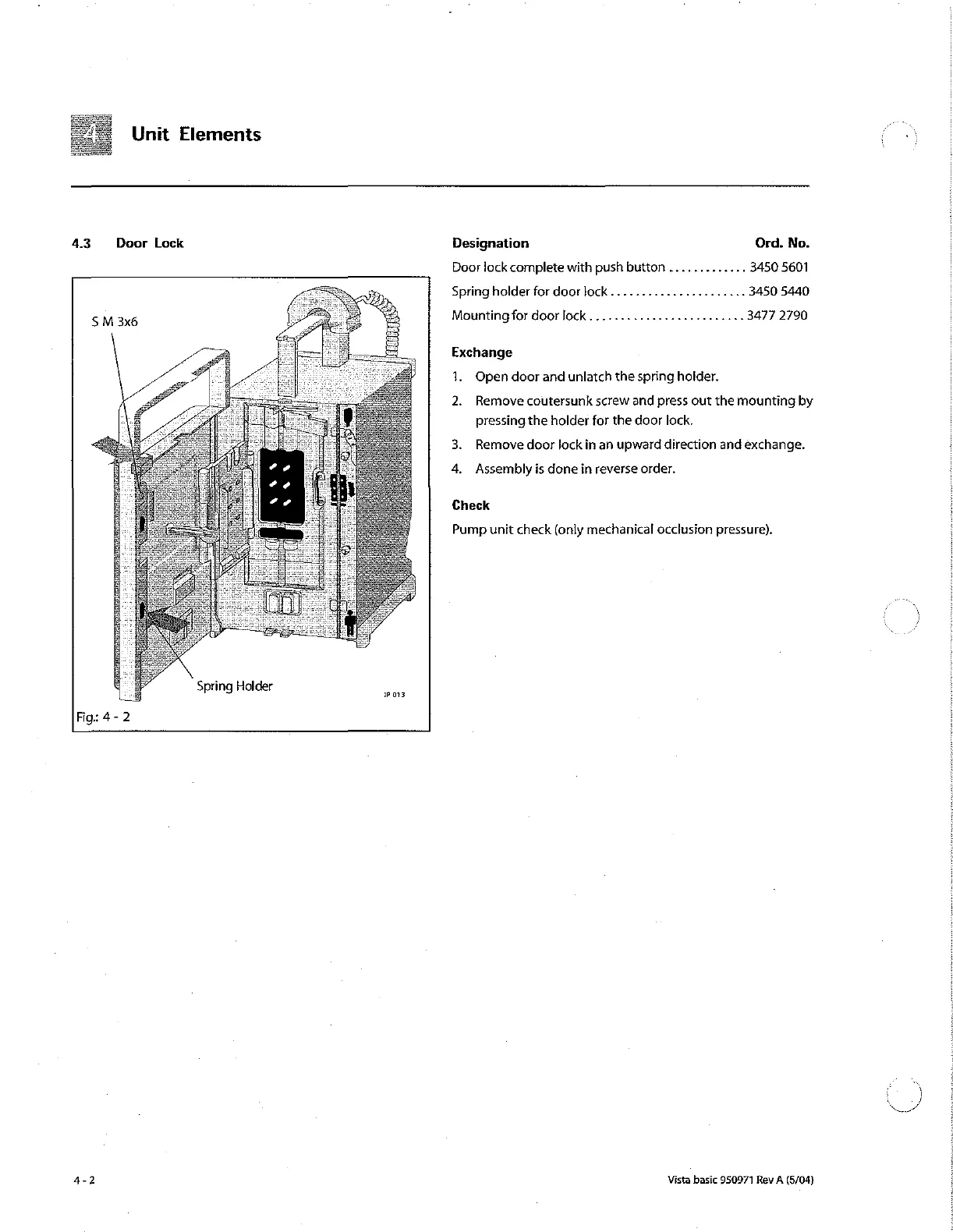

Fig: 4-2
Spring Holder
Designation Ord. No.
Door lock complete with push button ............. 3450 5601
Spring holder for door lock. ... 3450 5440
Mounting for door lock......................... 3477 2790
Exchange
1. Open door and unlatch the spring holder.
2. Remove coutersunk screw and press out the mounting by
pressing the holder for the door lock.
Remove door lock in an upward direction and exchange.
4. Assembly is done in reverse order.
Check
Pump unit check (only mechanical occlusion pressure).
Vista basic 950971 Rev A (5/04)
