6 Tangens Delta
40 DHV0053 b2 EN
© b2electronic gmbh
Step
Procedure
S3
Connect HV Test Lead
• Screw the HV test lead into the HVA HV output connector (11)
• Connect the HV cable shield to earth.
• Connect other end of HV test lead (clamp including screen protector) to the
DUT.
S4

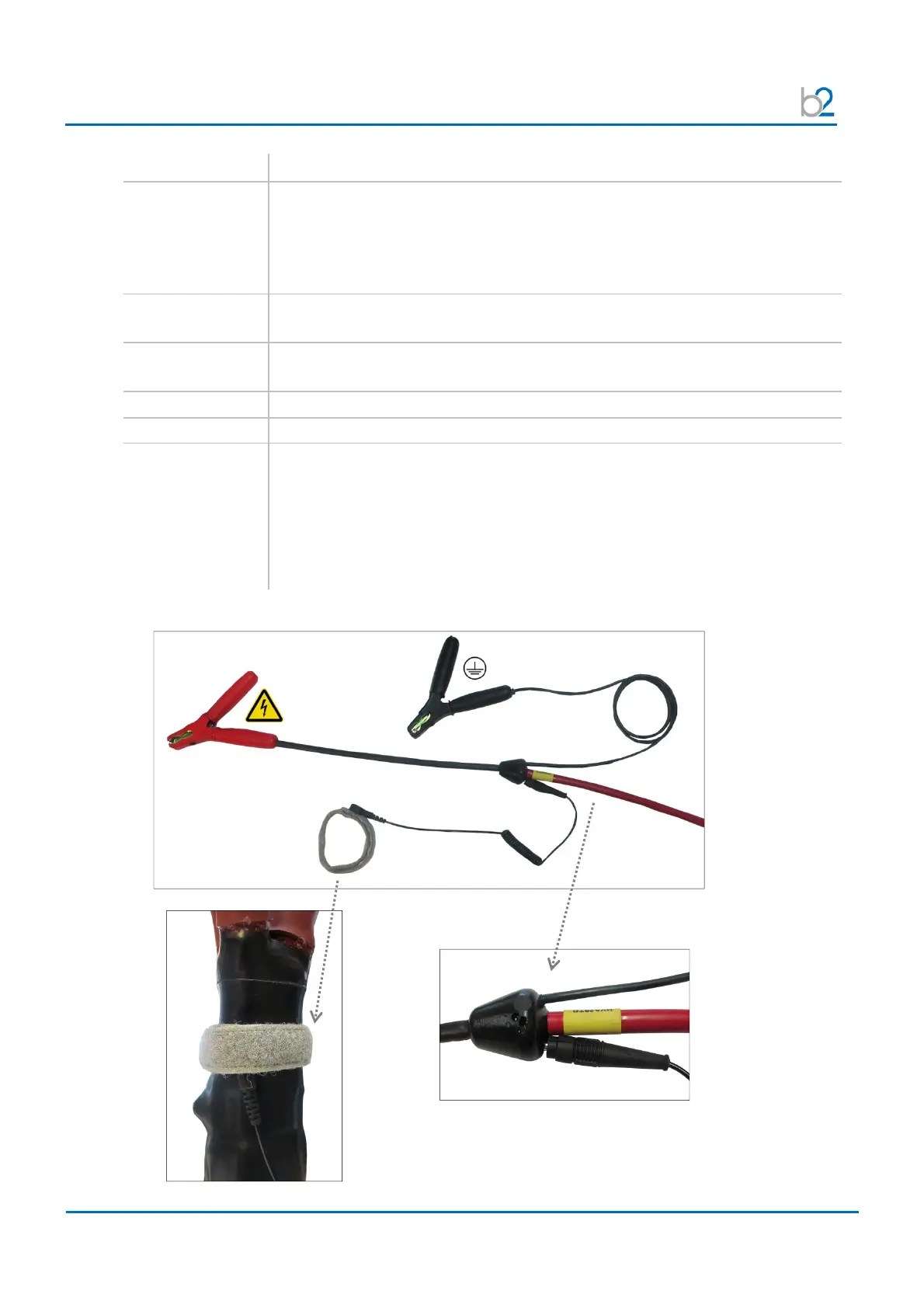

For 90% it is sufficient to clean the terminations. If necessary connect the
external guard like it’s shown in the pictures below (GH0584).
S5
Verify Connections
• Check that all cables are attached securely.
S6
Configure communication port (13)
S7
Turn key switch (7) to the “ON” position
S8
The HVA system automatically boots.
• Start-up default screen appears
”Start Test” screen
Select appropriate option from default screen and proceed to appropriate section
for further instructions:
• See 5.2 Manual Test Mode or
See 5.3 Automatic Test Mode
