5 Test Procedure
5.1 Equipment Set-up
Steps S1-S7 describe the Equipment Set-up procedure. When carrying out
multiple tests, the earth and power supply connections must always remain
intact. The HV test lead must be reconnected before each subsequent test (i.e.
repeat procedure as of step S3).

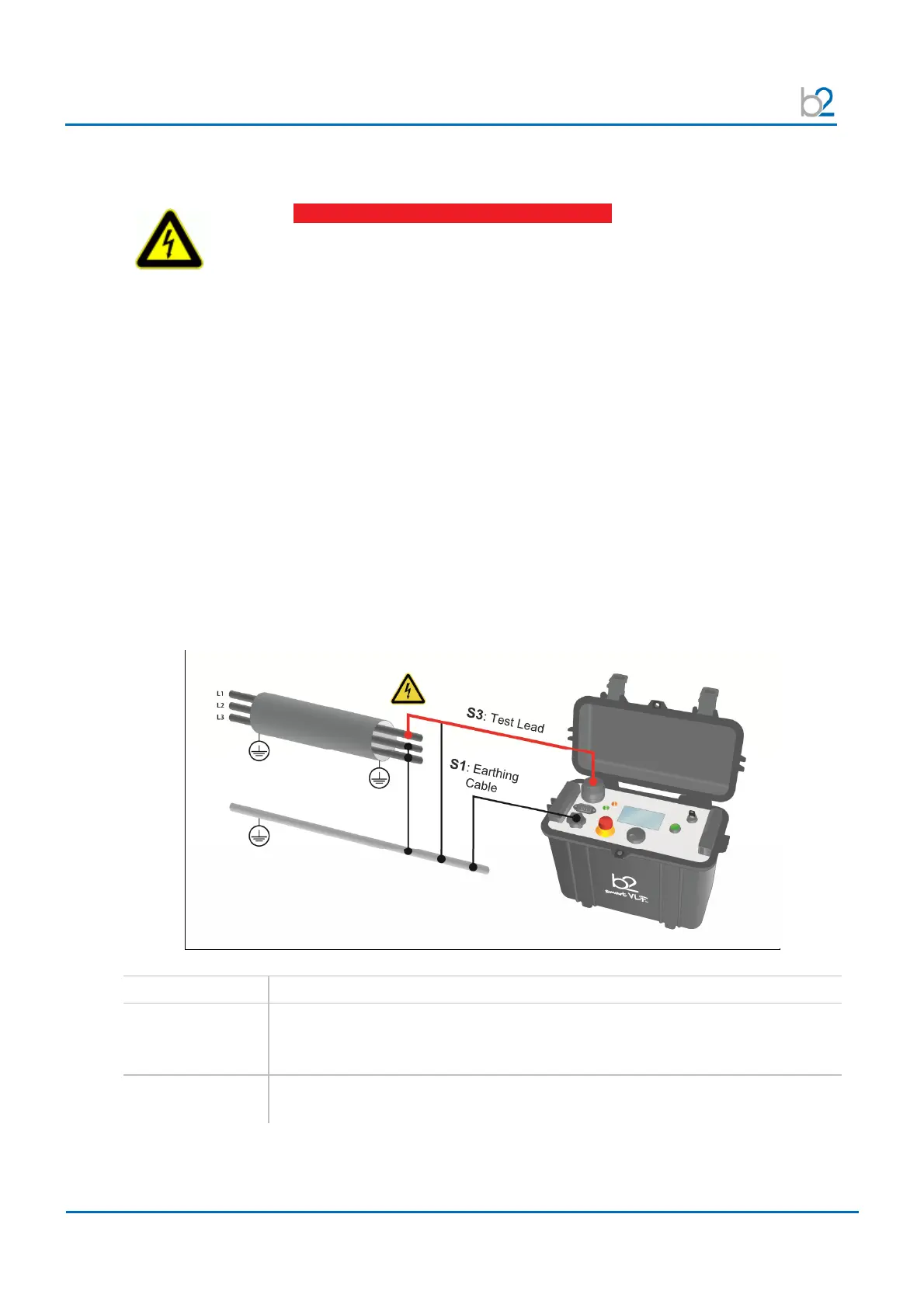

Connection Diagram: Cable Testing
Step Procedure
S1
Connect Earthing Cable
• Connect earthing cable to the HVA earthing connector (10)
• Connect earthing cable to the DUT ground
S2
Connect Power Supply Cable
• Connect the power supply cable to the HVA power supply plug (9)
DANGER
Electric Shock Hazard!
All procedures must comply with local safety regulations.
• Before operating the HVA28TD, equipment set-up procedure must be
completed!
• Cables must be connected in the proper sequence!
•
Before, turning on the power supply and before activating the HVA28TD,
verify that all system elements are properly grounded!
See 5.1 Equipment Set-up: Steps S1 –S7
DUT
