6 Tangens Delta
42 DHV0053 b2 EN
© b2electronic gmbh

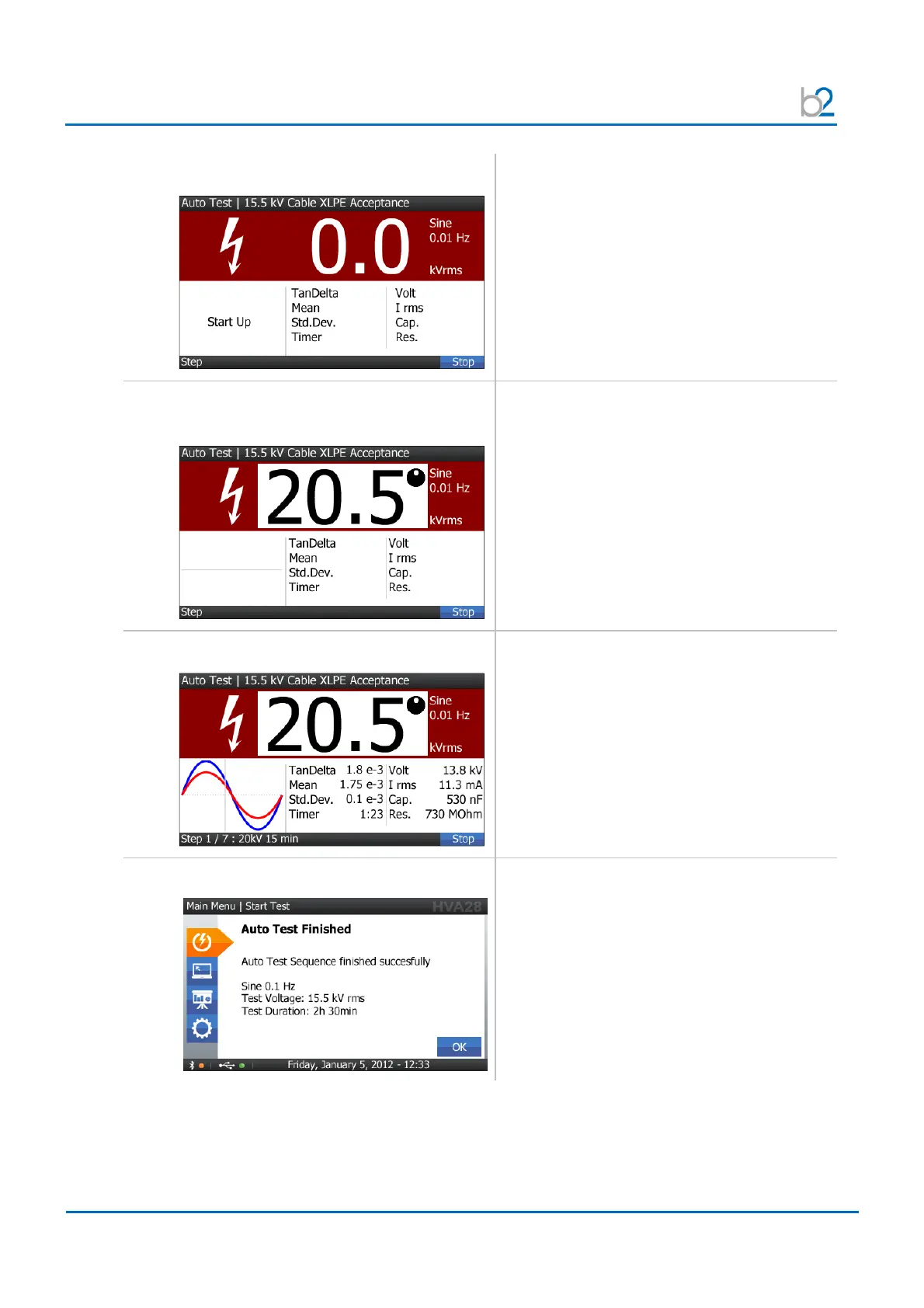

TD5: Test Start up
“Startup” appears on the screen to indicate
that the HVA is initializing the test
TD6: Set Test Voltage
(if not preset in step MS 8)
Rotate navigation knob (5) to modify the
voltage value.
• Min. test voltage = 0.0kV
• Max. voltage = 20.0kV rms (VLF), 28.0kV
(DC)
TD7: Test
Test begins automatically
The bottom of the screen indicates the lapsed
time
T: lapsed time / total test duration
TD8: Test End
Display indicates end of Manual Test
