Test Procedure
© b2 electronic GmbH
DHV0078 b2 EN
45

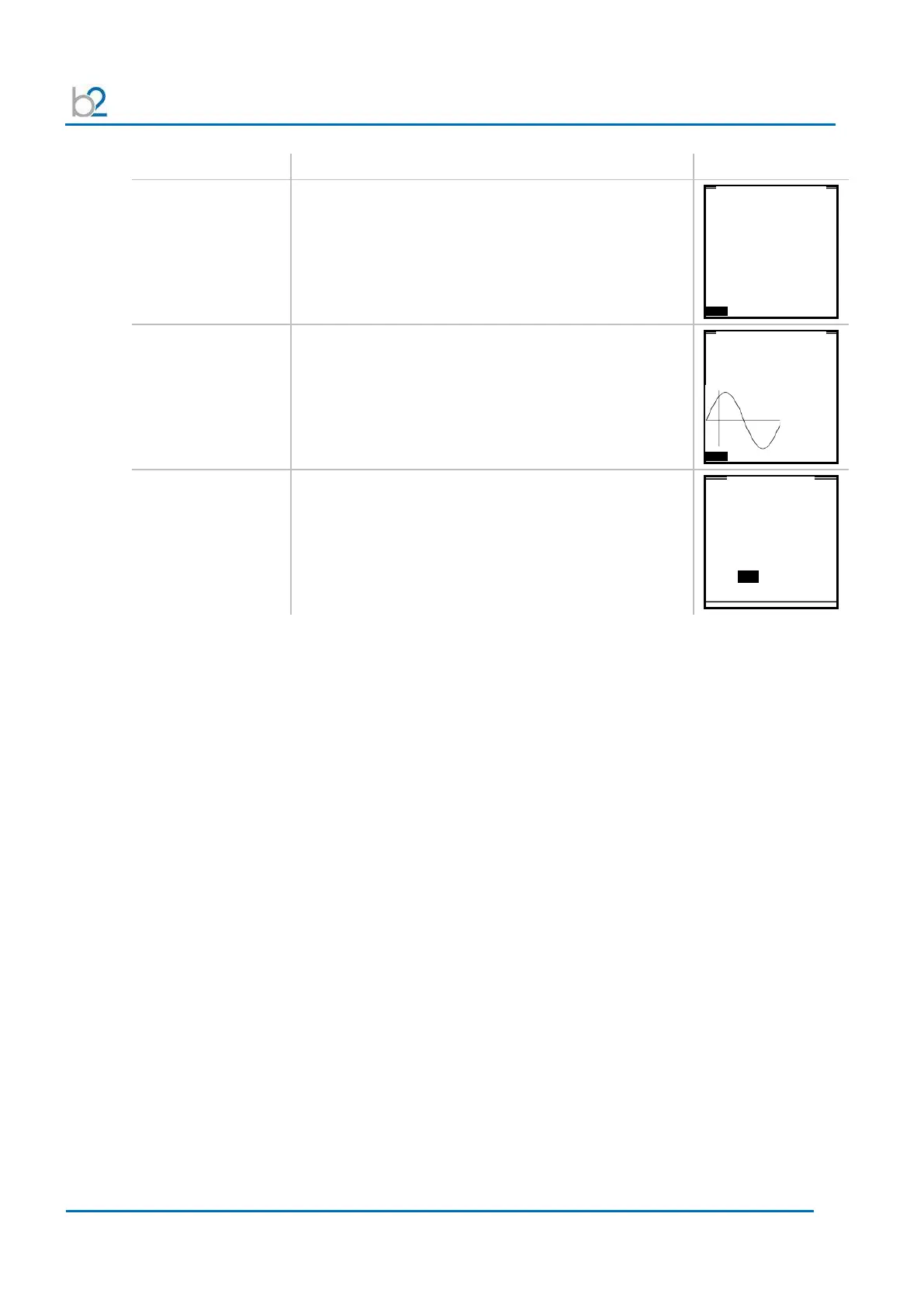

Step
Procedure
(run automatic test)
Example
AR7:
Test startup
“Startup” appears on the screen to indicate that the
HVA is initializing test
AR8:
Test
Test begins automatically
The bottom of the screen indicates the lapsed time
• T: lapsed time/total test duration
AR9:
Test end
Display indicates end of auto test
If Reporting is active, the user can immediately view
the report.
Auto Test Sine 0.1Hz
STOP T: 00:00 / 15min
1.0
kV
rms
0.0kV
0.0µA
Startup
Auto Test Sine 0.1Hz
STOP T: 00:03 / 15min
1.0
kV
rms
76.1kV
585µA
57.1nF
13GΩ
Auto Test Finished
Auto Test.
finished successfully
Sine 0.1 Hz
Test Voltage: 1.0 kVrms
Test Duration:15 min
View the report?
YES NO
