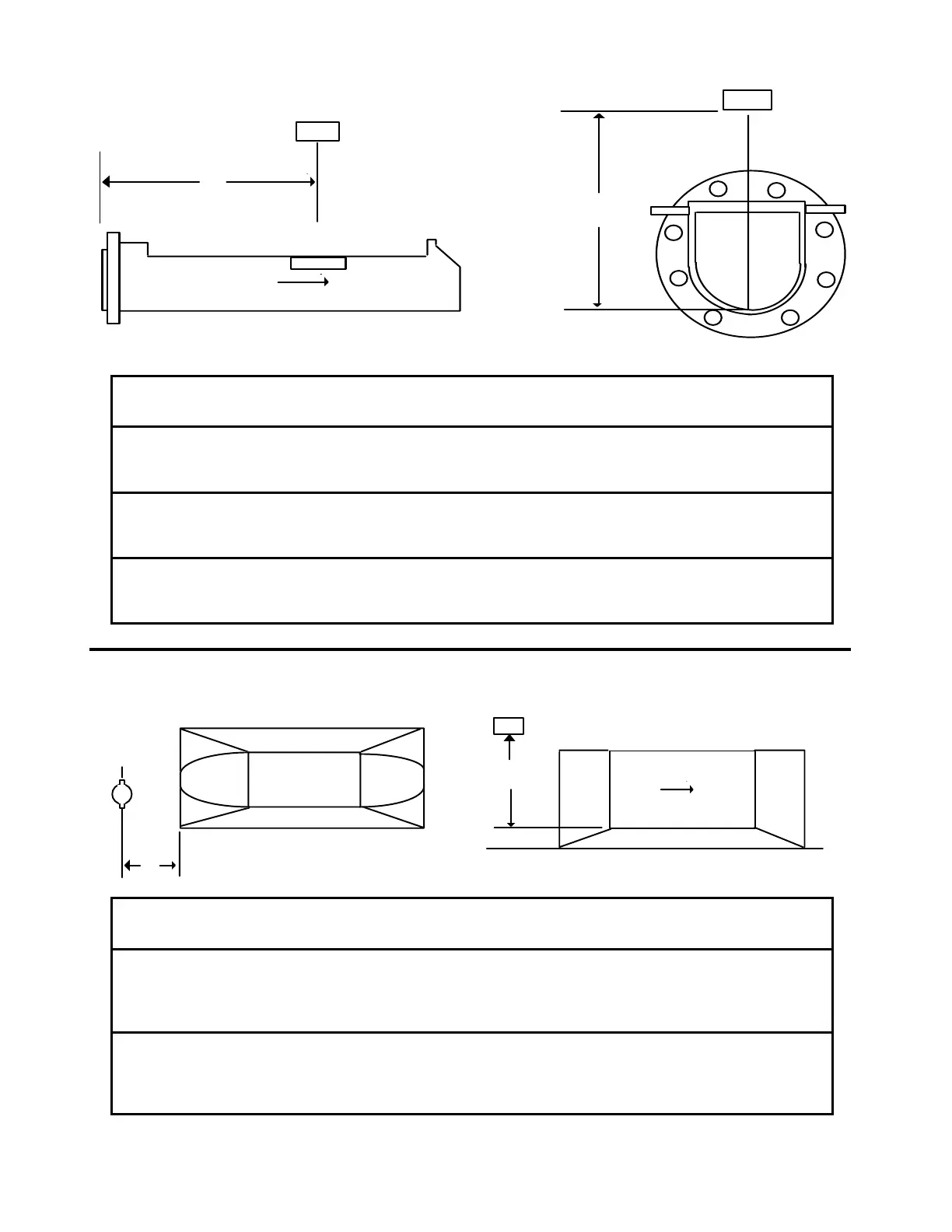

OPEN FLOW NOZZLE INSTALLATION
Vcal
FLOW
H
Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise
(in.) (in.) (in.) Min. Max. Max (in.)
6 21.00 16.79 125 180 4.79
8 23.00 18.66 150 400 6.66
10 25.00 20.77 165 800 8.77
12 29.00 21.55 145 1100 9.55
14 31.00 24.75 85 1600 12.75
16 35.00 25.87 100 2100 13.87
18 38.00 28.16 85 2600 16.16
20 40.00 30.78 90 3700 18.78
24 46.00 35.07 95 7000 23.07
PALMER-BOWLUS FLUME INSTALLATION
Vcal
FLOW
H
Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise
(in.) (in.) (in.) Min. Max. Max (in.)
6 3.00 17.16 130 200 5.16
8 4.00 18.77 145 400 6.77
10 5.00 20.46 175 700 8.46
12 6.00 22.15 200 1100 10.15
15 7.50 24.96 220 2000 12.96
18 9.00 27.13 270 3000 15.13
21 10.50 29.85 300 4500 17.85
24 12.00 32.77 325 6500 20.77
2-7
