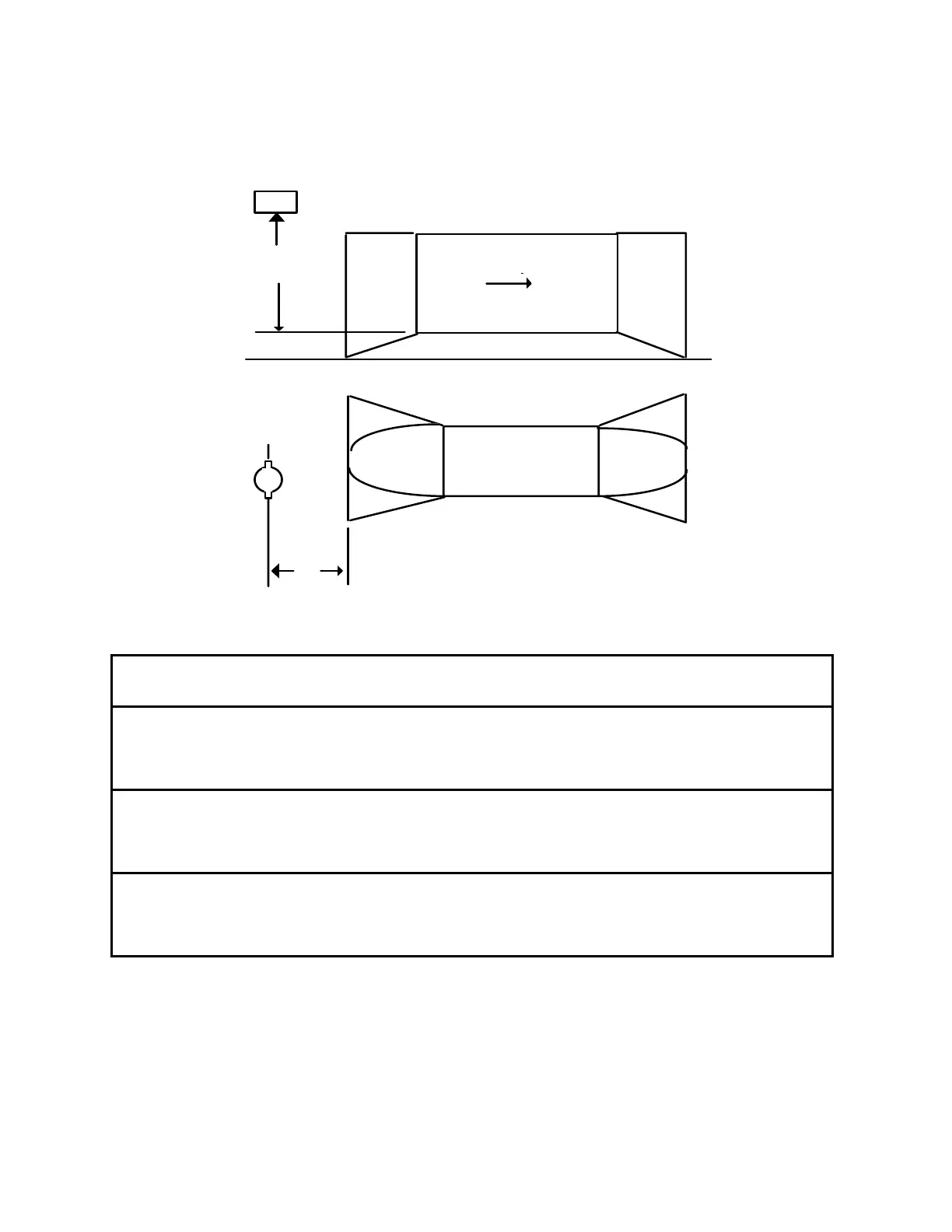

LEOPOLD LAGCO FLUME INSTALLATION
Vcal
FLOW
H
Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise
(in.) (in.) (in.) Min. Max. Max (in.)
6 * 16.91 10 140 4.91
8 * 17.98 135 250 5.98
10 * 20.16 180 500 8.16
12 * 21.06 210 700 9.06
15 * 23.19 250 1200 11.19
18 * 24.77 300 1750 12.77
21 * 28.45 360 3000 16.45
24 * 29.05 400 3600 17.05
30 * 34.84 500 7000 22.84
36 * 37.70 600 10000 25.70
42 * 42.38 675 15000 30.38
48 * 43.48 750 18000 31.48
(*) HORIZONTAL MOUNTING DIMENSIONS; LOCATE SENSOR
JUST UPSTREAM OF CONVERGENCE ON ALL SIZES
2-9
