Register operation Page 4/15
AC_ILR_BA_02_1805
To reset the resettable totalizer, press and hold the TOTAL button and then press and
release the RESET button.
To display 11-digit non-resettable totalizer, while the non-resettable total is
displayed, press and hold the TOTAL button for seconds. The top row displays
the 6 most significant digits; the bottom row displays five least-significant
digits.
NOTE: The non-resettable totalizer normally displays 5 least-significant digits.
2.4. Flow rate
PER MIN is displayed in conjunction with the unit of measure. All flow rates are
calculated in volume unit per minute.
2.5. Battery
The "LBat" indicator will indicate when the battery is approaching end of life. When
the indicator is illuminated, the 2/3AA, 3.0 VDC lithium battery is drained to 10% of
its total capacity and should be changed. Normal battery life is five years.
Note: A 2/3AA, 3.6 VDC battery may also be used as a replacement.

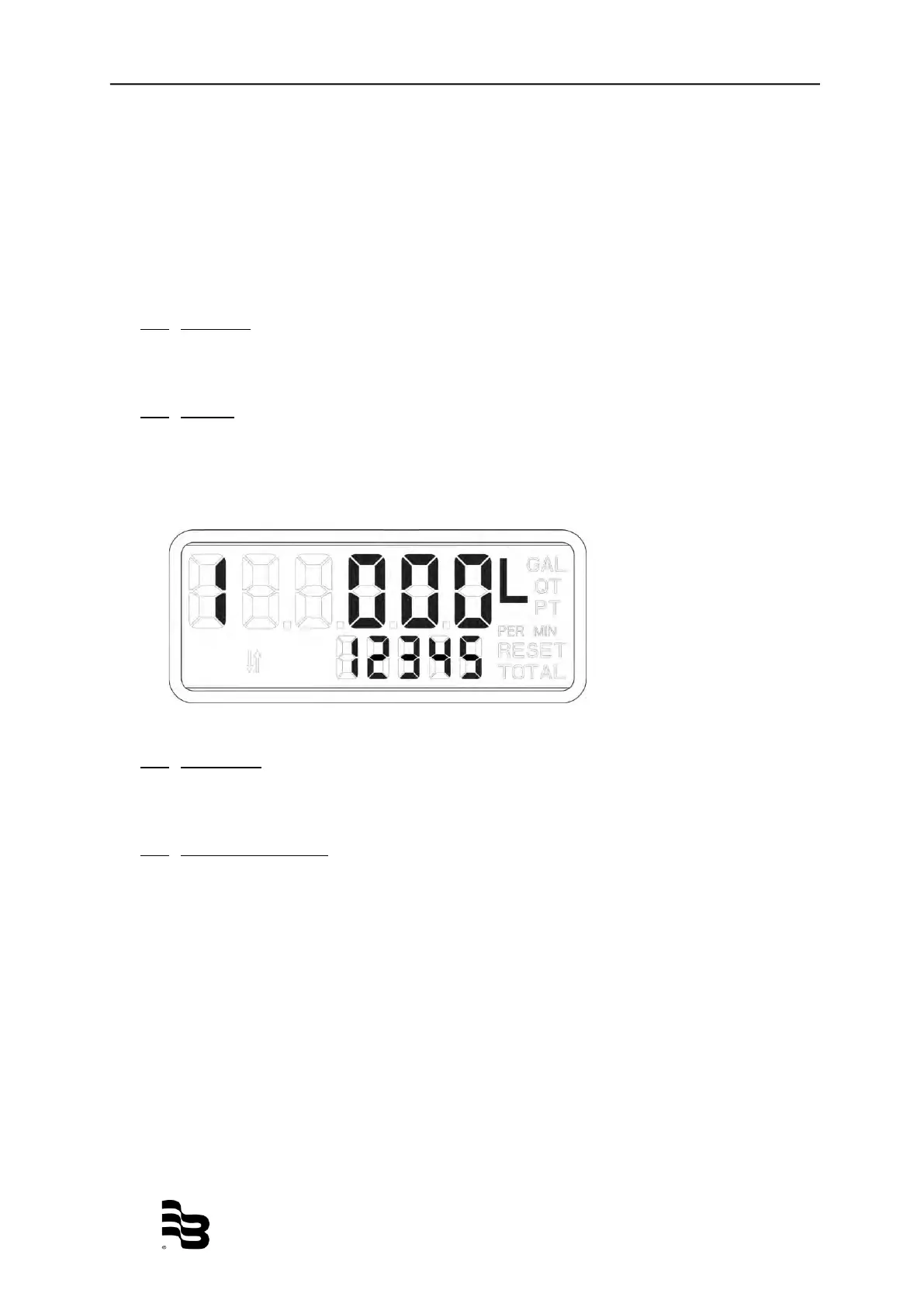

Figure 4: Low battery indicator
2.6. Checksum
To display the firmware checksum, press and hold the RESET button for three
seconds. To return to normal display, release the RESET button.
2.7. Display scale factor
To display the scale factor:
At the same time, press and hold the TOTAL and RESET buttons for two seconds
to display the programmed scale factor. To return to the normal display, release
both buttons.
