Register programming Page 6/15
AC_ILR_BA_02_1805
3.3. Changing the meter pulse rate (for all ILR models with display)
The meter pulse rate (screen is indicated by the “I” on the top row, on the left side)
is the number of pulses per unit of measure as detected by the register. The pulse
rate varies according to the type of attached meter. The bottom row consists of the
5-digit integer value of the meter pulse rate, whereas the top row consists of the 2-
digit decimal value of the meter pulse rate.
The meter pulse rate is entered in pulses per liter if the selected unit of measure is
liters. The meter pulse rate is entered in pulses per gallon if the selected unit of
measure is gallons, quarts or pints.

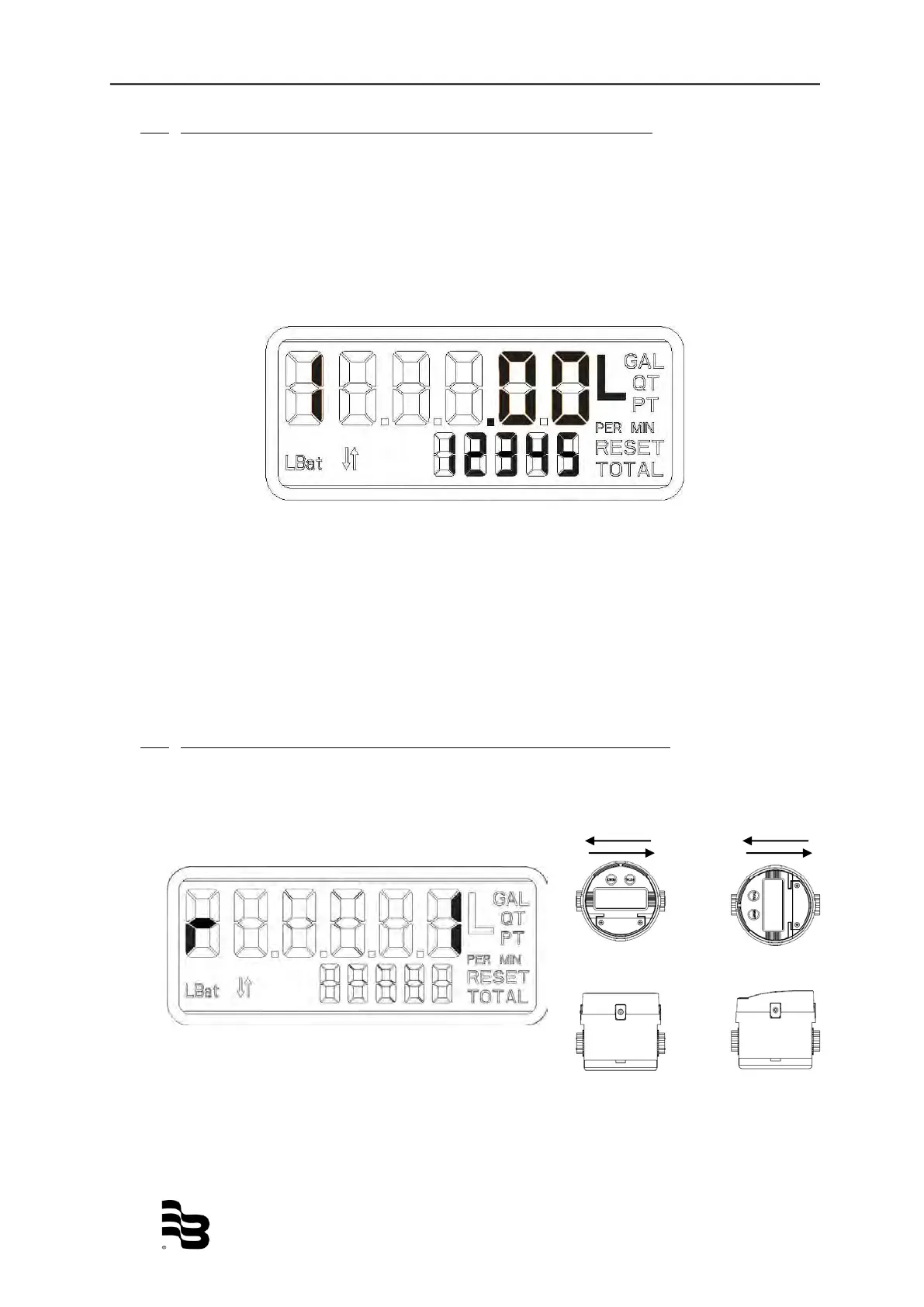

Figure 6: Meter Pulse Rate
1. Press the TOTAL button to select a digit (selected digits flash). Press
RESET to change the selected digit. The pulse rate can be any value
between 00000.01 and 99999.99 on the top row; integer values are
displayed on the bottom row. Example: 10.45 would display .45 on the top
row and 10 would be displayed on the bottom row.
2. When finished adjusting the pulse rate, press and hold the TOTAL button for
one second to advance to the “register orientation” section.
NOTE: Error checking will not allow the user to advance to the next screen.
3.4. Changing the register orientation (for all ILR models with display)
For oval gear meters: Depending on the orientation perpendicular or inline on the
meter. For remote version, this will be set to “o”.
For nutating disc meters (RCDL) set to “o”.
For turbine meters (Vision) set to “o”.
Figure 7: Register orientation
1. Press the RESET button to toggle between available options (“I, for an
inline-to-flow orientation and “P” for a perpendicular-to-flow orientation or “o”
for Remote versions and for the RCDL-nutating disc meters and the Vision
turbine meters).
2. When finished adjusting the register orientation, press and hold the TOTAL
button for one second to advance to the “Default Display” section.
