Register programming Page 7/15
AC_ILR_BA_02_1805
3.5. Changing the display mode (for all ILR models with display)
The display mode screen (indicated by a “d” on the top row, on the left side)
determines the information displayed on the top line of the register during normal
operation. The display mode may be either the totalizer screen or the flow rate
screen.
“C,” indicates the totalizer screen and “F” indicates the flow rate screen. The
totalizer screen is depicted below:

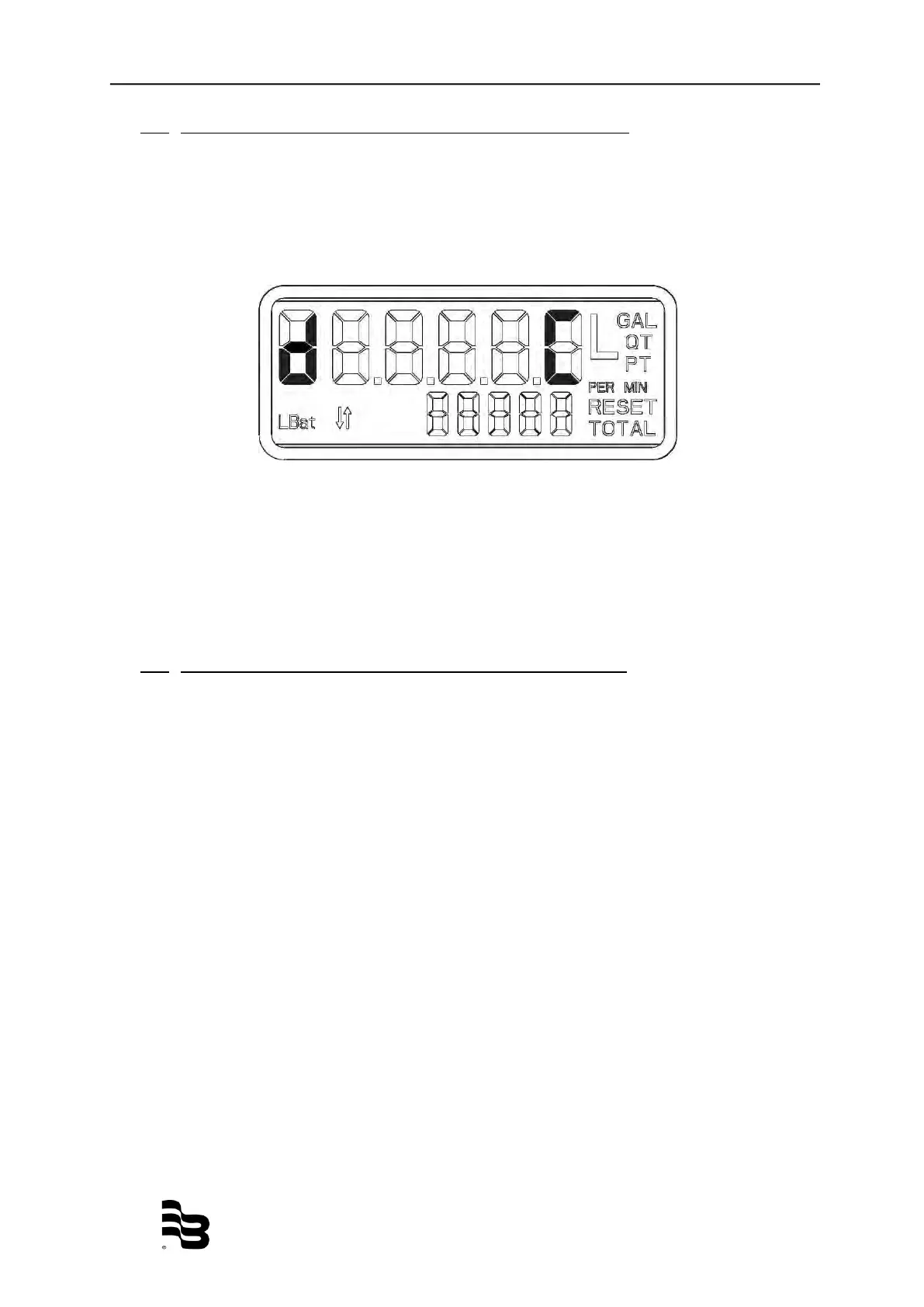

Figure 8: Default display
1. While a letter is flashing on the display, press the RESET button to select
either totalizer or flow rate.
2. Upon completion of this setting, the programming of the industrial standard
register and the industrial dual pulse output is complete. For ILR 710,
ILR701, ILR701T, ILR750 and ILR750T models, see additional programming
parameters.
3.6. Exiting programming mode (for all ILR models with display)
To exit the programing mode:
1. On any screen, press and hold the both the TOTAL and RESET buttons.
The screen will revert back to the programmed scale factor, and then flash.
Following the three flashes, the register display will be blank.
Note: Pressing the TOTAL or RESET buttons will turn the display back on.
