Installation & Operation Manual
Wiring
Wiring Safety
At installation, be sure to comply with the following requirements:
• Disconnect power to the unit before attempting any connection or service to the unit.
• Do not bundle or route signal lines with power lines.
• Keep all lines as short as possible.
• Use twisted pair shielded wire for all output wiring.
• Observe all applicable, local electrical codes.

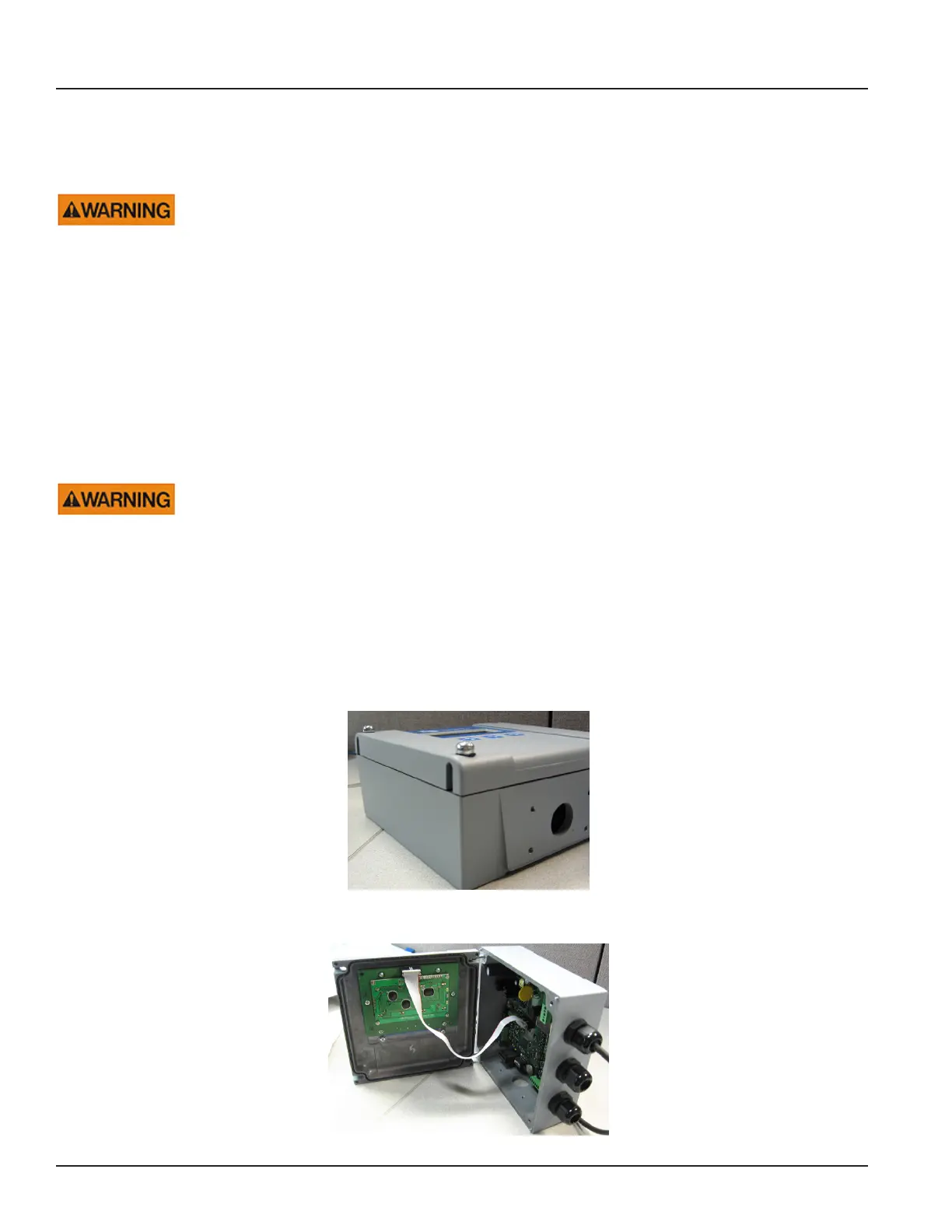

Opening the M-2000 Cover
The M-2000 amplifier's design lets you open the cover without completely removing it.
Cover is attached with display ribbon cable.
To open the cover you will need a blade screwdriver.
Follow these steps:
1. Disconnect power to the unit.
2. Completely remove the two screws from either the left or the right side of
the amplier.
3. Loosen each of the remaining screws so that the round head of the screw clears the top edge of the cover.
4. Lift and pivot the cover into the open position.
