Badger Meter M Series User Manual

Page 18
4-11
Model M-2000 Mag Meter

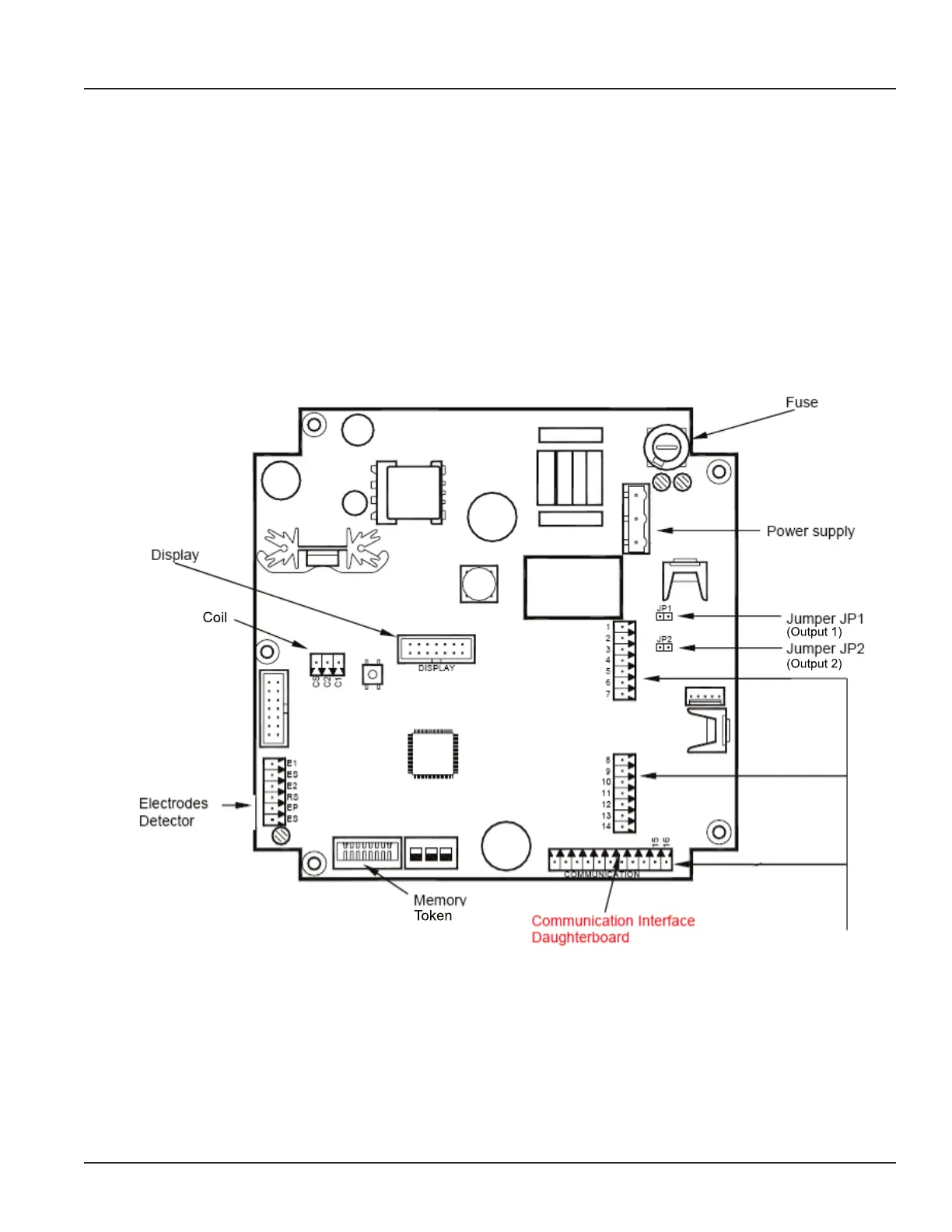

Conguring Input/Output (I/O)
This section describes wiring the following M-2000 inputs/outputs:
• Analog output
• Digital input
• Digital outputs
• Communication
Once the sensor and the amplifier have been wired, wire any inputs and outputs to the M-2000 amplifier.
Do not connect the main power connection until you have made all other wiring connections. Follow all of the safety
precautions and local code to prevent electrical shock and damage to the electronic components.
