DISPLAY MANUAL DP C171.UART
INTRODUCTION
• Name: Intelligent display HMI
• Model: DP C171.UART
• Scope: EN15194 electrical bicycle
• Appearance: the shell is made of PC; The
liquid crystal display is made of hardened
PMMA.

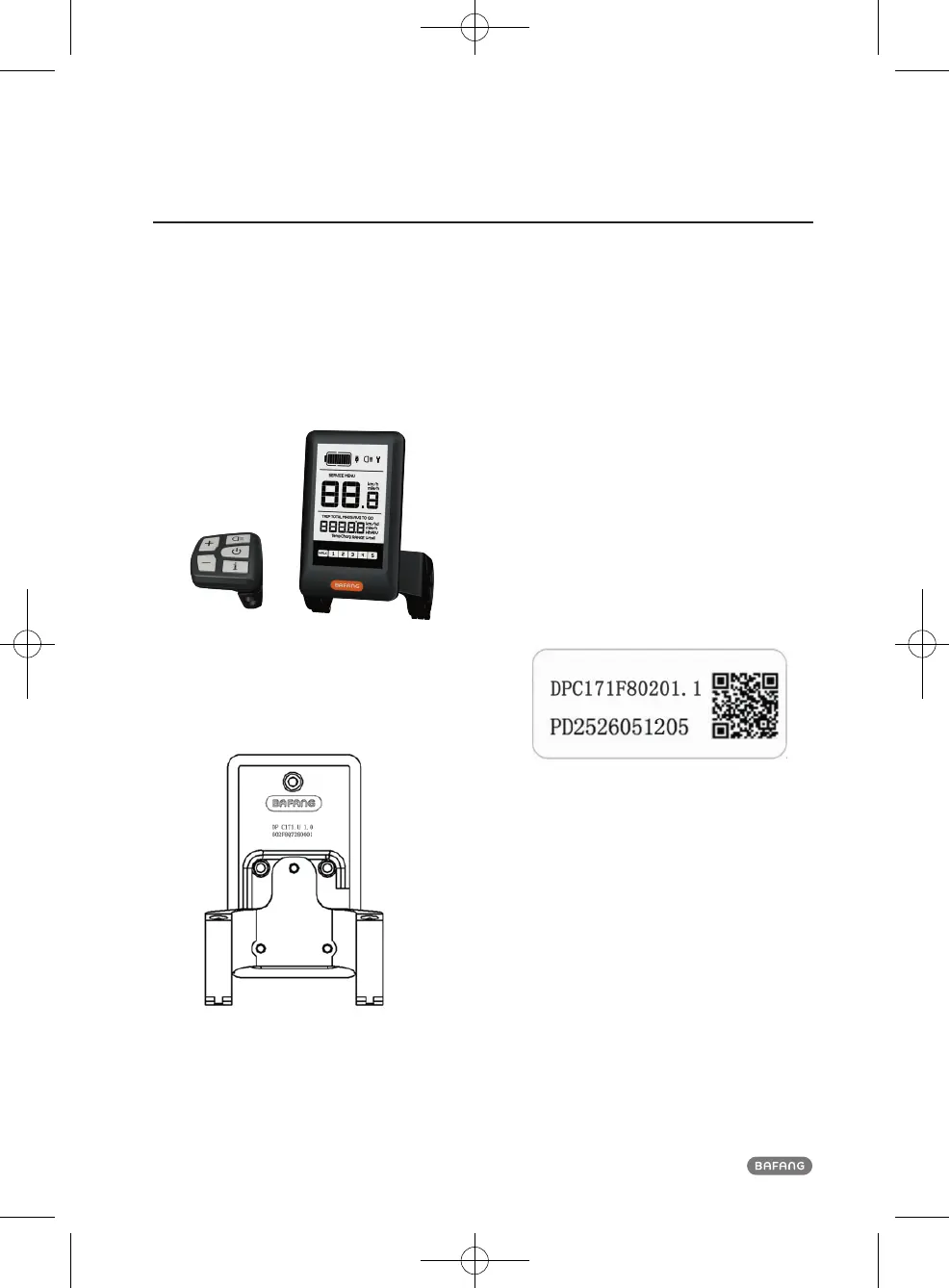

• Numbering on the back of HMI
Number on the middle of display back, num-
ber is divided into up row and down row (as
shown in the figure):
A. First line as below
DP C171.U 1.0
① DP C171.U : BAFANG Display model
② 1.0: Hardware version number
B. Second line as below
602F8Q7280001
① 602: Wire length and connector model
850 M5.2, keypad250
② F8: test device number
③ Q7280001:production date is
July 28th ,2016, serial number is 0001.
please refer to <Instrument labelling
rules> for other detailed description,
the document number is BF-TS-753-
C0-02II.
• Display HMI P type wire label number rule
Number on the middle of P type label, num-
ber is divided into up row and down row
and QR code is at right side (as shown in the
below figure).
The first line:
DPC171F80201.1- Software version
The second line:
PD2526051205 - Parameter code
Content of QR code:
DPC171F80201.1
PD2526051205
DP C171.U 1.0
602F8Q7280001
