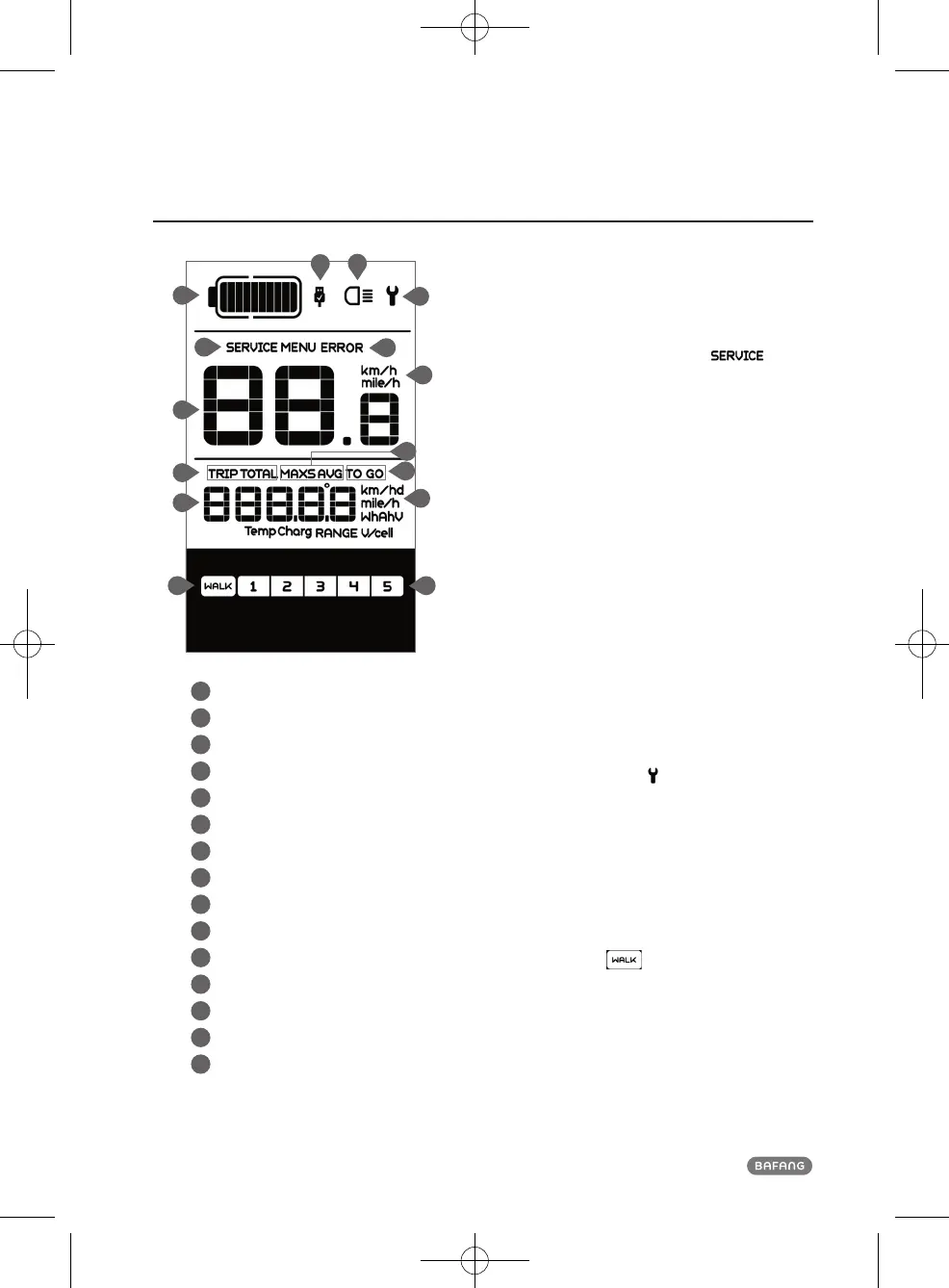

DISPLAY MANUAL DP C171.UART
NORMAL INDICATION AREA
1
Battery capacity indication
2
Maintenace warning
3
Main data indication
4
Trip data
5
Indication for history and battery data
6
Push asisstance
7
USB connection
8
Headlight indication
9
Malfunction warning
10
Error warning
11
Selection of speed unit
12
History of riding speed
13
Remaining range
14
Unit indication
15
Level indication
• Battery capacity indication: 10-segment
battery indication; the voltage that each seg-
ment represents can be customized.
• Maintenance warning: When there is a need
for maintenance the symbol
will be
displayed (riding distance or the number of
battery charge cycles exceed the set value,
function can be deactivated).
• Main data indication: indicate the real-time
speed and error code
• Trip data: the single-trip distance TRIP, the
total distance TOTAL.
• Indication for history and battery data:
indicate the history of riding and battery
real-time data
• Push asisstance: Push and walk assistance
at 6km/h
• USB connection: connect to USB charging
port
• Headlight indication: only shows when
headlight or backlight are on.
• Malfunction warning: When a fault is de-
tected the symbol
will be displayed.
• Error warning
• Selection of speed unit: display of the speed,
km/h or mph.
• Level indication: The chosen level 1–5 will
be displayed; if there is no numeric display,
it means that there is no assistance (by the
motor). If the rider is walking and pushing
the e-bike,
will be displayed.
• History of riding speed: average speed (AVG
km/h), maximum speed (MAXS km/h).
• Remaining range:remaining distance TO GO.
• Distance indication: display of the distance
depending on the setting.
