THE CONTROL PANELS
CBE CONTROL PANELS
CBE control panels consist of separate switching
blocks.

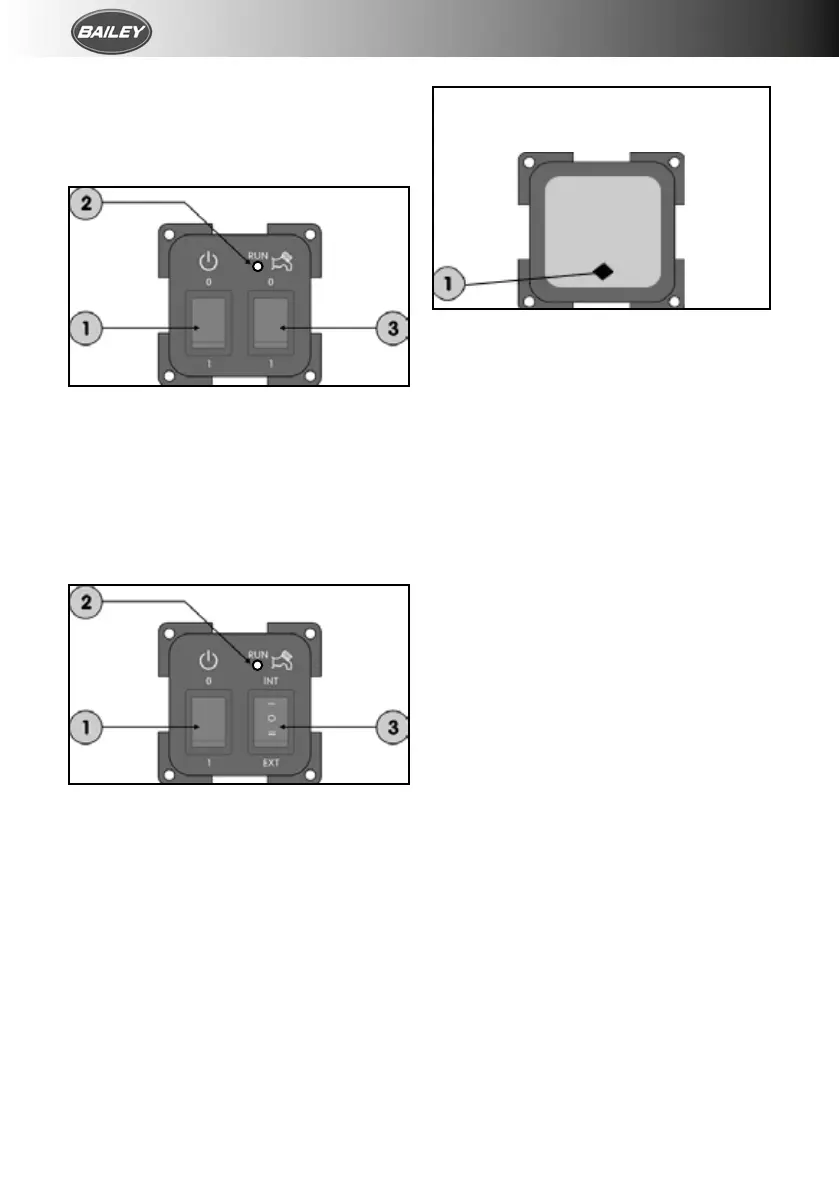

12V AND PUMP CONTROLS (SINGLE AXLES)
1. 12v main switch: 0 = OFF, 1 = ON.
2. LED “pump run”: this LED is lit (yellow) when
the pump is actually running.
3. 12V water pump switch: 0 = OFF, 1 = ON.
12V AND PUMP CONTROLS (TWIN AXLES)
1. 12v main switch: 0 = OFF, 1 = ON
2. LED “pump run”: this LED is lit (yellow)
when the pump is actually running.
3. 12v water pump switch: 0 = OFF, INT=
internal water pump ON; EXT= external
water pump ON.
BATTERY VOLTAGE LCD SCREEN
1. Button to check the voltage (in volts) of the
connected 12v battery.
