HEATING SYSTEMS
START UP

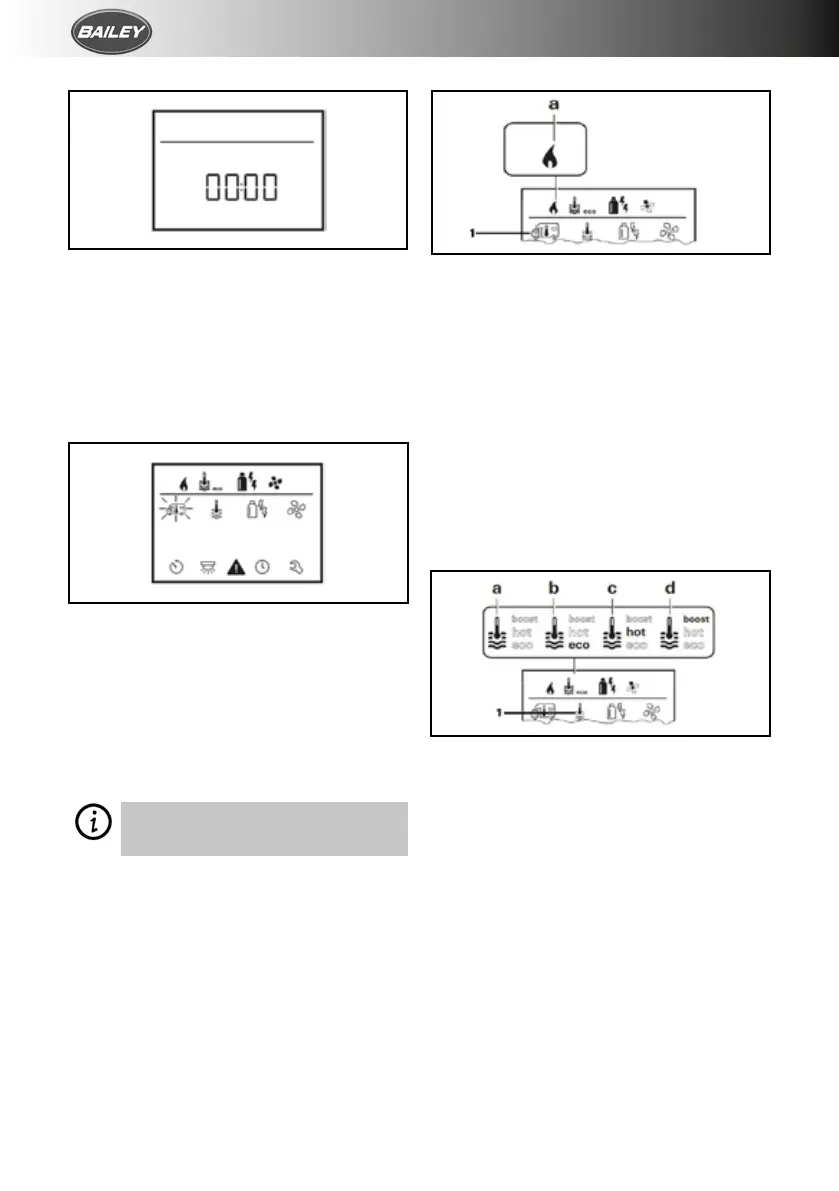

Once connected to the power supply the
control panel will display a start screen. This is
shown after a few seconds.
If no entry is made within a few minutes, the
standby screen is automatically shown again.
The display shows the time and correct room
temperature alternately.
FUNCTIONS
The functions in the menu lines of the control
panel can be selected in any sequence. The
operating parameters are shown in the status
line at the top of the screen above the black
line.
The display shows the setting level. The first
symbol flashes.
Previously set values/operating
parameters become active again after
the system is switched on.
Switch on/return to setting level
• Press the control knob/push button for
longer than 3 seconds or the back button.
Switch off
• Press the control knob/push button for
longer than 3 seconds.
CHANGE THE ROOM TEMPERATURE
1. Use the control knob/push button to
select the vehicle icon.
2. Push knob/push button to access setting
level.
3. Use the control knob/push button to
select the desired temperature.
4. Click the control knob/push button to
confirm the value.
Temperature range 5°C–30°C (1°C steps)
a = Heater status - When visible heater is
switched on.
This symbol will flash until the required room
temperature is reached.
CHANGE THE HOT WATER LEVEL
1. Use the control knob/push button to select
thermometer icon.
2. Click to change to the setting level.
3. Use the control knob/push button to select
the required level.
4. Click the control knob/push button to
confirm the value.
a = Boiler - Warm water boiler is switched on.
b = 40° - Warm water temperature 40°C.
c = 60°C - Warm water temperature 60°C.
d = Boost - Targeted, fast heating of the
content of the boiler. The water temperature is
kept at the higher level (around 62°C).
Once the water temperature is reached, the
room is heated again.
