CIRCUIT BREAKER INSTALLATION
The circuit breaker sub-panel has space for up to 8 single
position or 4 double position circuit breakers. The installer
is responsible for providing circuit breakers of appropriate
ratings. See the table below for a list of the approved
breakers that can be used. This information is also located on
a label inside the enclosure door.
CONTROL ELECTRONICS POWER CONNECTION
The System Control Center requires 120VAC power to operate
the control electronics and the chlorine generator. Wire the
2-position terminal block to an installer supplied 120VAC
breaker with a 20A maximum rating. See below.
The two 10 AMP dimmable 120VAC light circuits are also
powered through this connection. The neutral connection is
factory pre-wired from the GFCI to the neutral bar.
Manufacturer Single Double Twin Quad GFCB Filler Plates
Cutler-Hammer BR BR BRD BRD GFCB BRFP
Murray MP-T MP-T MH-T MH-T MP-GT LX100FP
Siemens QP QP QT QT QPF QF3
Square D HOM HOM HOMT HOMT HOM HOMFP
Thomas & Betts TB TB TBBD TBBQ GFB FP-1C-TB
SUITABLE LISTED BREAKERS
Field installed 20amp max breaker

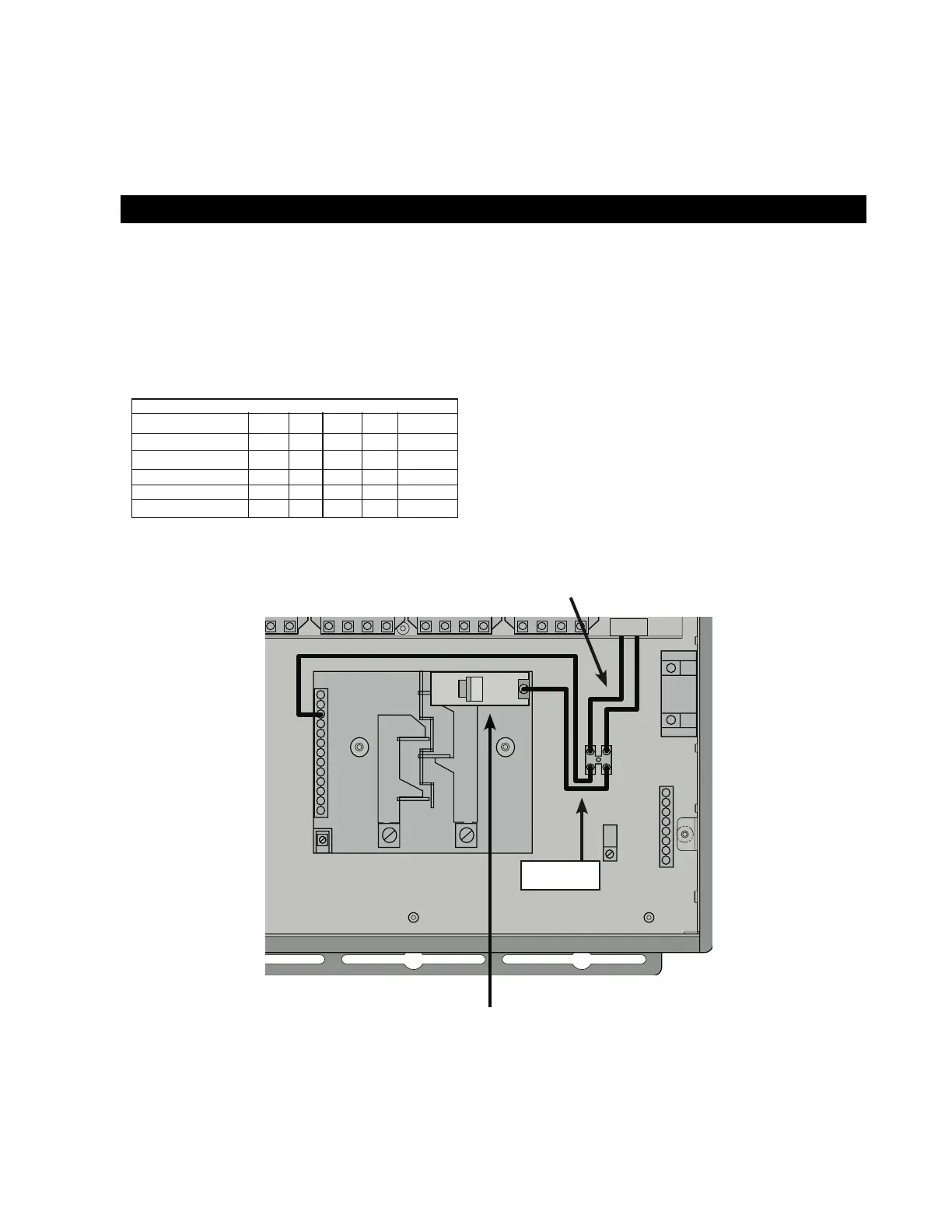

Fig. 15 Control Electronics Power Connection & Field Wiring to Circuit Breaker
68 2468 2468 2468
ON
OFF
field wired
Factory pre-wired
Fig. 14 Circuit Breaker Installation & Suitable Listed
Breakers
