DIP Switch Settings
Set The Dip Switch Settings On The Circuit Board As Shown.
When looking at the DIP switches on the Service Panel, the ON position is to the right.
BEFORE Powering Up the System
IDENTIFY THE DEFAULT CONFIGURATION THAT MOST CLOSELY MATCHES THE PLUMBING AND EQUIPMENT INSTALLED.
NOTE: To add additional equipment or customize the settings, please read the default settings and configuration parameters
listed on the following pages prior to configuration.

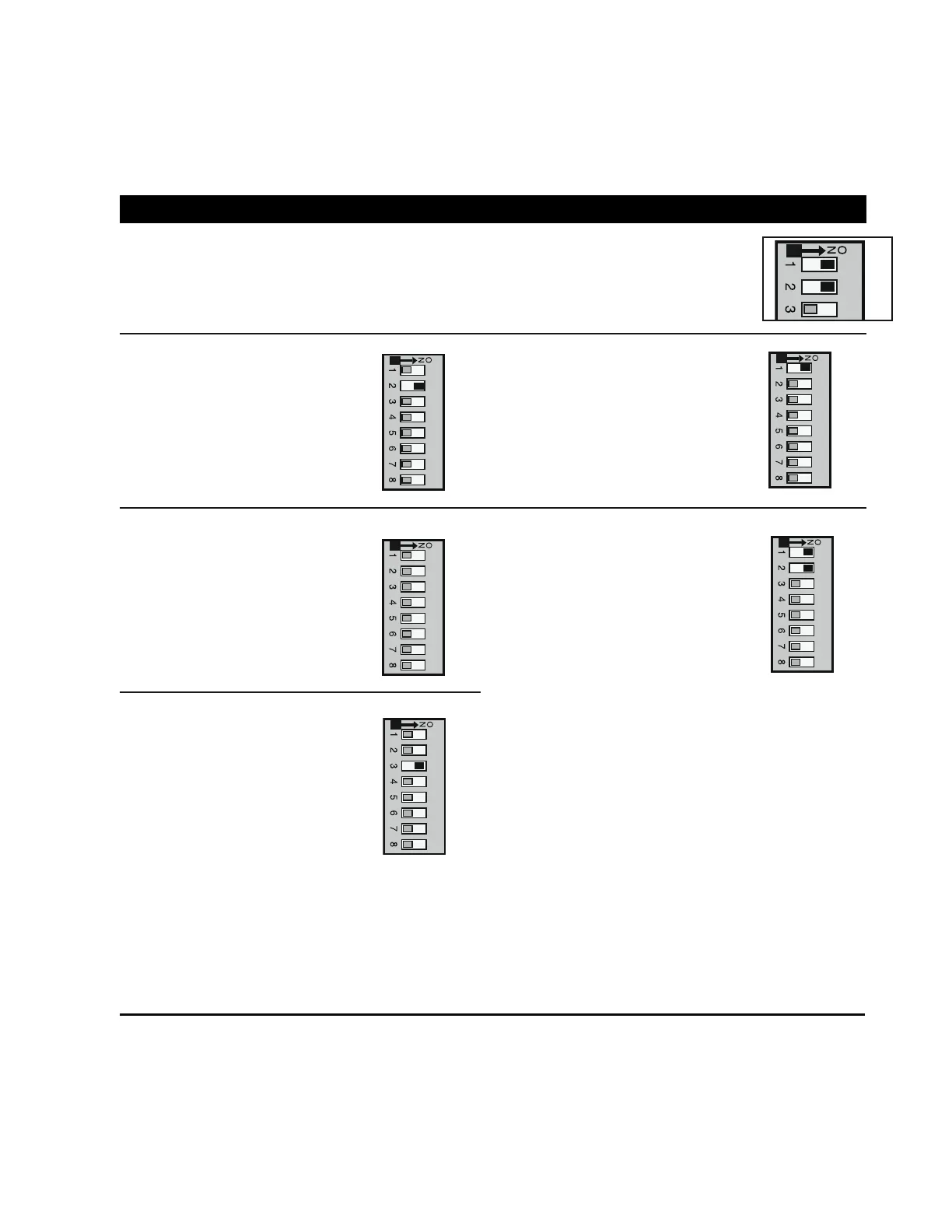

Fig. 31 DIP Switch Setting Configurations
1. POOL/SPA COMBINATION
Filter Pump
Heater
Lights for Pool and Spa
Auxiliary
2 Valve Actuators
2. POOL ONLY
Filter Pump
Heater
2 Separate Lights
Auxiliary
3. POOL AND SPA ARE
SEPARATE BODIES OF WATER
SINGLE-PLUMBED
Filter Pump
Heater
Lights for Pool and Spa
Auxiliary
2 Valve Actuators
4. SPA ONLY
Filter Pump
Heater
2 Separate Lights
Auxiliary
5. SPILLOVER
Filter Pump
Heater
Lights for Pool and Spa
Auxiliary
2 Valve Actuators
DIP SWITCH SETTINGS
