Balluff BIS C-300 Series User Manual

19
19
english
15
Sensing
surface

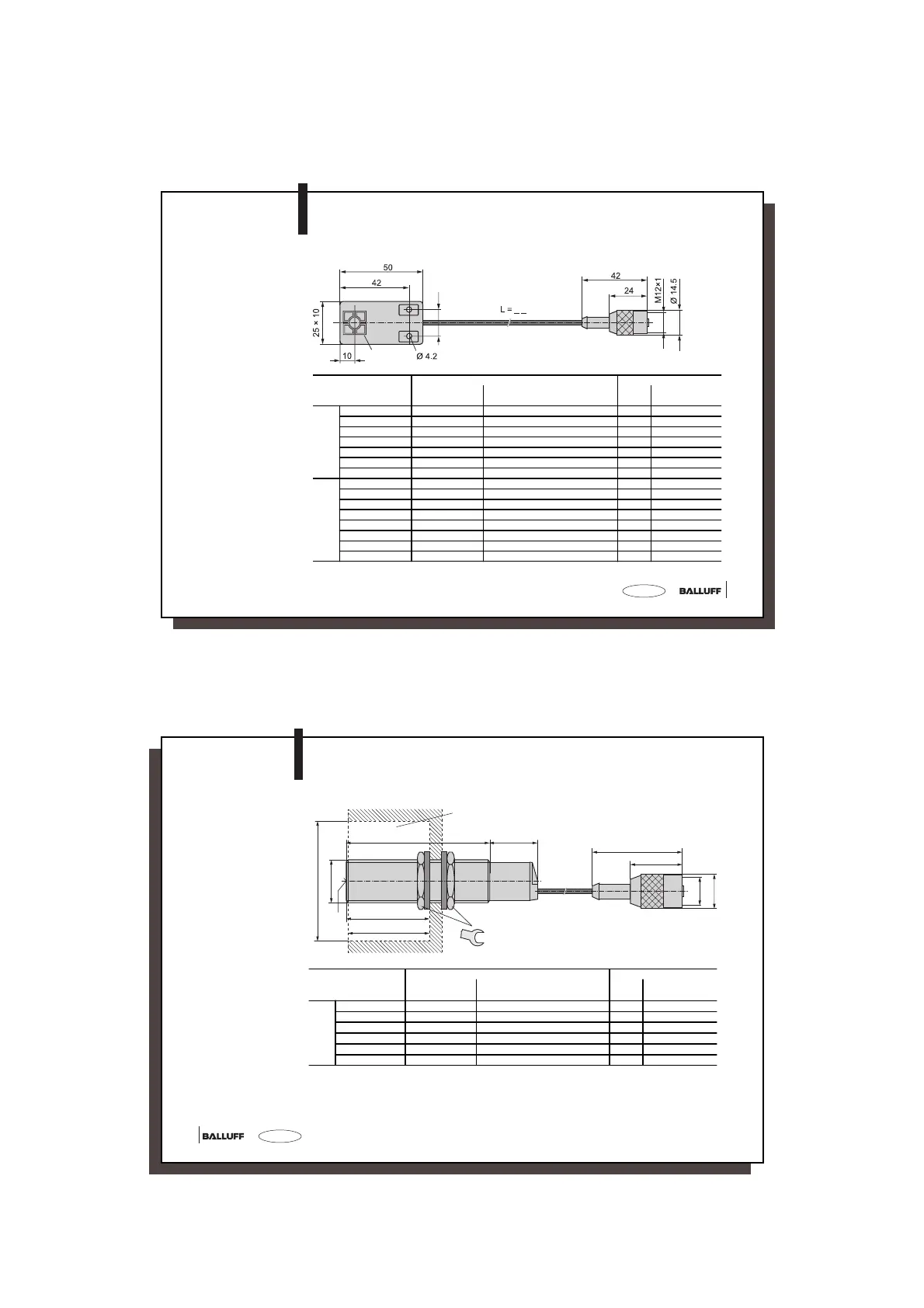

Read/Write Head
BIS C-305-_ _
Dimensions
Standard:
Length _ _
01 = 1 m
05 = 5 m
10 = 10 m
Distances and
Velocities between
Read/Write Head
and matching
Data Carrier
Matching Data Carrier Static Mode (V = 0) Dynamic Mode (V > 0)
Distance [mm] Offset [mm] at a distance [mm] of
Distance
[mm]
Vmax. [m/min]
1)
Read Write 0.7 1 3 5 7 10 Read Write
for
flush
moun-
ting
in
steel
BIS C-100-05/A
2)
0 to 4 0 to 4 ± 3 ± 2 1 8
BIS C-103-_ _/A
2)
0 to 5 0 to 5 ± 4 ± 3 1 10
BIS C-105-_ _/A
2)
0 to 5 0 to 5 ± 4 ± 3 1 10
BIS C-117-05/A
2)
1 to 8 1 to 8 ± 5 ± 4 ± 3 1 to 5 12 to 7 7 to 4
BIS C-121-04/L 0 to 2 0 to 2 ± 2 1 6
BIS C-121-04/L-SA1 0 to 1.2 0 to 1.2 ± 2
BIS C-122-04/L 0 to 2.5 0 to 2.5 ± 3 ± 2 1 8
non-
flush
BIS C-108-_ _/L 0 to 6 0 to 6 ± 8 ± 7 ± 5 1 to 5 20 to 12 12 to 7
BIS C-108-_ _/L-SA2 0 to 6 0 to 6 ± 8 ± 7 ± 5 1 to 5 20 to 12 12 to 7
BIS C-117-05/L 0 to 7 0 to 7 ± 8.5 ± 7.5 ± 6 ± 4 1 to 5 21 to 16 12 to 9
BIS C-117-05/A 0 to 10 0 to 10 ± 6 ± 6 ± 6 ± 5 ± 3 2 to 8 16 to 13 9 to 7
BIS C-128-05/L 0 to 6 0 to 6 ± 8 ± 7 ± 5 1 to 5 20 to 12 12 to 7
BIS C-130-05/L 0 to 7 0 to 7 ± 5 ± 5 ± 4 ± 2 1 to 6 14 to 11 11 to 6
BIS C-130-05/L-SA1 0 to 7 0 to 7 ± 5 ± 5 ± 4 ± 2 1 to 6 14 to 11 11 to 6
BIS C-130-05/L-SA2 0 to 6.2 0 to 6.2 ± 5 ± 5 ± 4 1 to 5 14 to 11 11 to 6
1)
The indicated relative speeds assume a read or write of the first 4 bytes of the data carrier (bytes 0...3).
2)
This data carrier is appropriate for installation in aluminum. Dynamic operation not permitted!
C3-slk_716464_E_1110.p65
20
english20
20
35
[ 35
Ø m 50
60
42
24
Ø 14.5
M12×1
24
M18×1
L=__
Sensing surface
Read/Write Head
BIS C-319-_ _
Distances and
Velocities between
Read/Write Head
and matching
Data Carrier
Clear zone in metal
Matching Data Carrier Static Mode (V = 0) Dynamic Mode (V > 0)
Distance [mm] Offset [mm] at a distance [mm] of
Distance
[mm]
Vmax. [m/min]
1)
Read Write 1 3 5 7 10 Read Write
non-
flush
BIS C-108-_ _/L 0 to 14 0 to 14 ± 12 ± 12 ± 11 ± 11 ± 9 0 to 10 26 to 20 17 to 13
BIS C-117-05/L 0 to 15 0 to 15 ± 13 ± 12 ± 12 ± 11 ± 10 0 to 10 31 to 22 18 to 15
BIS C-130-05/L 0 to 13 0 to 13 ± 9 ± 9 ± 9 ± 8.5 ± 7.5 0 to 10 23 to 19 13 to 11
BIS C-130-05/L-SA1 0 to 13 0 to 13 ± 9 ± 9 ± 9 ± 8.5 ± 7.5 0 to 10 23 to 19 13 to 11
BIS C-130-05/L-SA2 0 to 12 0 to 12 ± 9 ± 9 ± 9 ± 8 ± 6 0 to 9 23 to 19 13 to 11
BIS C-191-_ _/L 0 to 11 0 to 11 ± 9 ± 9 ± 9 ± 8 0 to 8 22 to 20 13 to 11
Dimensions
Standard:
Length _ _
01 = 1 m
05 = 5 m
10 = 10 m
1)
The indicated relative speeds assume a read or write of the first 4 bytes of the data carrier (bytes 0...3).
