27
27
english

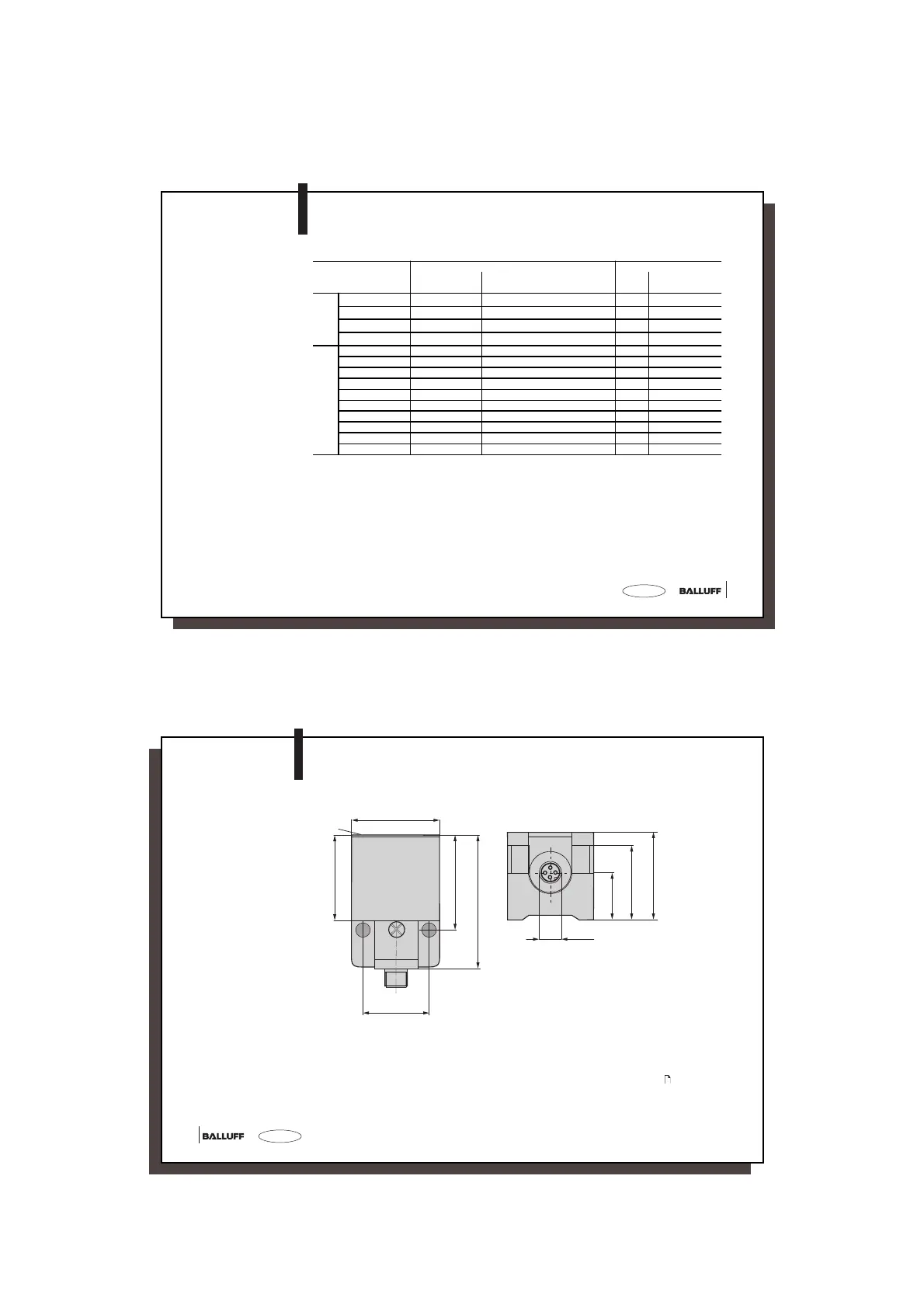

Distances and
Velocities between
Read/Write Head
and matching
Data carrier
Matching Data Carrier Static Mode (V = 0) Dynamic Mode (V > 0)
Distance [mm] Offset [mm] at a distance [mm] of Distance
[mm]
Vmax. [m/min]
1)
Read Write 1 3 5 7 10 15 Read Write
for
flush
moun-
ting
in
steel
BIS C-104-_ _/A 1 to 11 1 to 11 ± 7.5 ± 7 ± 7 ± 7 3 to 7 17 10
BIS C-117-05/A 1 to 12 1 to 12 ± 7.5 ± 7.5 ± 7 ± 6.5 3 to 7 17 to 16 13
BIS C-128-_ _/L 0 to 8 0 to 8 ± 8 ± 7 ± 6.5 ± 5.5 1 to 5 19 to 16 11 to 9
BIS C-130-04/L-SA1 0 to 8 0 to 8 ± 6.5 ± 6 ± 5.5 1 to 5 16 to 14 9 to 8
non-
flush
BIS C-104-_ _/A 0 to 12 0 to 12 ± 7.5 ± 7 ± 7 ± 7 3 to 7 17 10
BIS C-108-_ _/L 0 to 12 0 to 12 ± 10 ± 9 ± 9 ± 8.5 1 to 7 24 to 22 14 to 12
BIS C-108-_ _/L-SA2 0 to 11 0 to 11 ± 10 ± 9 ± 8.5 ± 7.5 1 to 7 24 to 17 16 to 10
BIS C-117-05/L 0 to 13 0 to 13 ± 11 ± 10 ± 10 ± 9.5 1 to 7 27 to 24 15 to 14
BIS C-128-_ _/L 0 to 13 0 to 13 ± 10 ± 10 ± 9 ± 9 1 to 7 24 to 22 14 to 12
BIS C-130-05/L 0 to 11 0 to 11 ± 9 ± 8 ± 7 ± 5 1 to 7 23 to 12 13 to 7
BIS C-130-05/L-SA2 0 to 10 0 to 10 ± 7 ± 8 ± 7 ± 4 1 to 7 23 to 10 13 to 5
BIS C-133-_ _/L 0 to 10 0 to 10 ± 10 ± 9 ± 9 ± 7 1 to 7 24 to 17 14 to 10
BIS C-190-_ _/L 1 to 11 1 to 11 ± 10 ± 9 ± 9 ± 8 ± 6.5 1 to 10 25 to 16 14 to 9
BIS C-191-_ _/L 1 to 10 1 to 10 ± 8 ± 7.5 ± 7 ± 6.5 1 to 7 20 to 16 11 to 9
Read/Write Head
BIS C-323/_ _-S4
(continued)
1)
The indicated relative speeds assume a read or write of the first 4 bytes of the data carrier (bytes 0...3).
C3-slk_716464_E_1110.p65
28
english28
Read/Write Head
BIS C-324/_ _-S4
Dimensions
Standard:
Length _ _
05 = 5 m
10 = 10 m
Compatible
connection cable
1)
1)
BIS C-505-PU-_ _ / BIS C_506-PU-_ _ / BIS C-517-PVC-_ _ / BIS C-518-PVC-_ _
Distances and velocities between read/write head and matching data carrier see the following
.
63
40
20
34
47
40
M12x1
40
30
Sensing
surface
