BPM 450 - 500 - 650 - 800

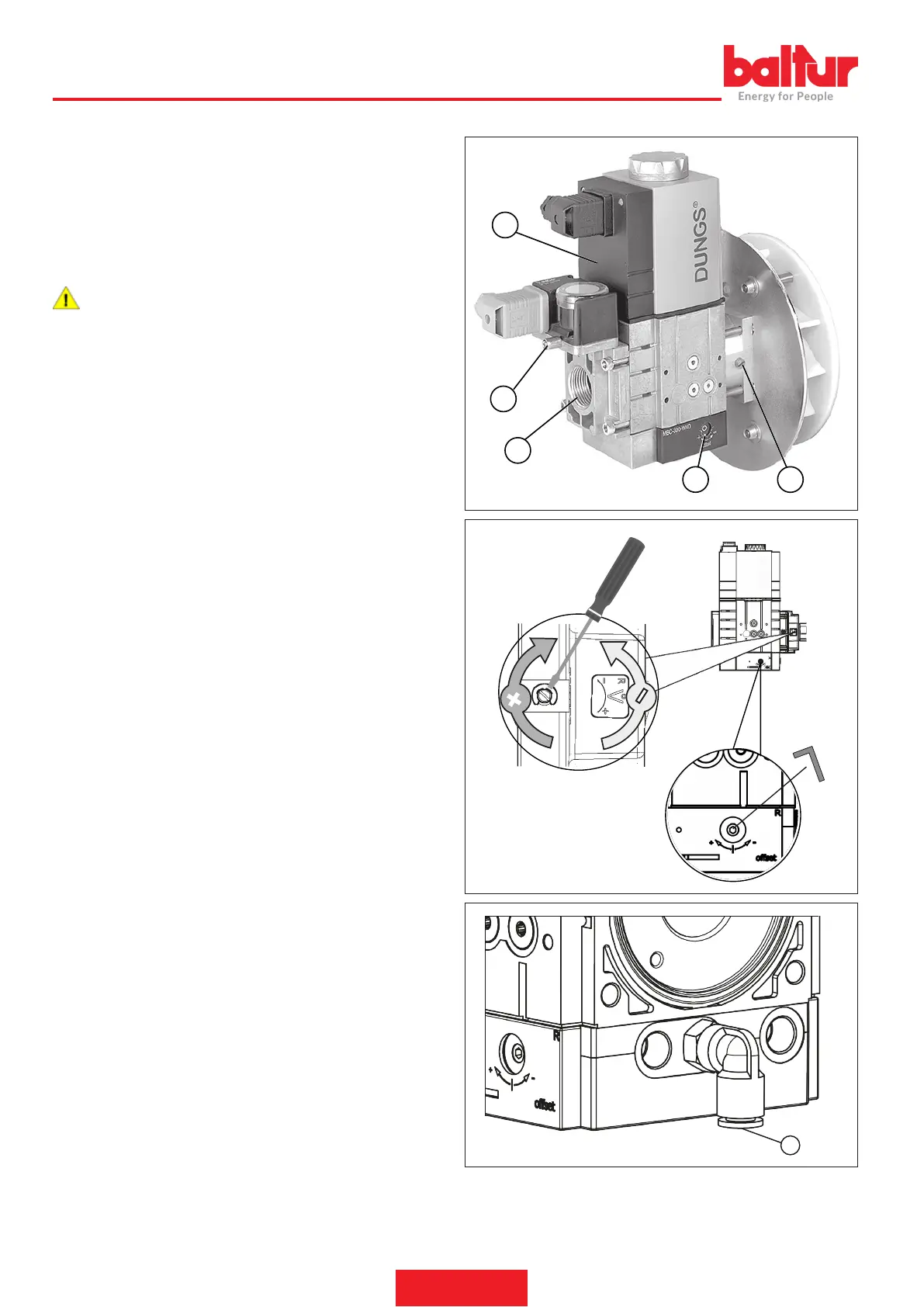

1 Gas solenoid valve
2 Maximum pressure adjustment screw (rotate clockwise to increa-
se and counter clockwise to decrease)
3 Minimum pressure adjustment screw (rotate clockwise to increase
and counter-clockwise to decrease)
4 Gas inlet
5 Gas inlet pressure port
DANGER / ATTENTION
Make sure the air manifold (B) is not obstructed. If so, proceed
with cleaning.
Valv_BPM_450_800
3
4
5
1
2
RegMCB700_BPM
B
PresaPressMBC_700
