MODEL 490 CONTROLS
CONTROLS

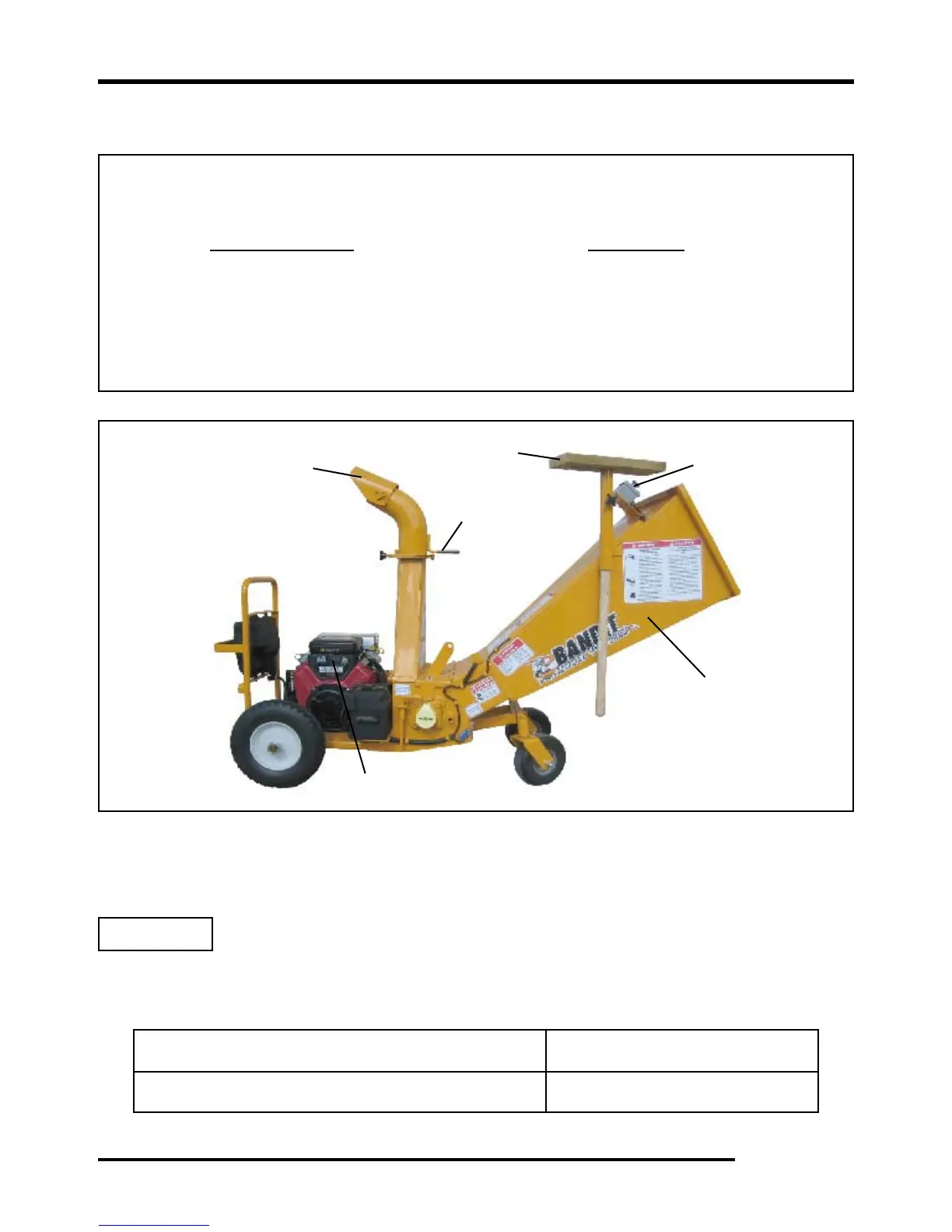

Basic Location of Controls and Adjustments
LOCATION SHOWN NOT SHOWN
1. Infeed Hopper Knives & Hardware
2. Engine Controls Chipper Belts
3. Discharge Flipper
4. Swivel Discharge
5. Wooden Push Paddle
6. Emergency Shut Down Switch
CONTROLS
ENGINE OPERATING SPEEDS
If your chipper is plugging, it is usually caused by allowing the engine to drop below required R.P.M.’s.
Operating the engine at speeds lower than full R.P.M.’s causes your chipper to plug. Always run the chipper
at full engine speed.
NOTICE
Some Current Engine Types
Briggs & Stratton 356447-0066B1 - 18 Hp
Maximum RPM
3600
1
4
3
2
5
6
