401/21
MODEL 75 MAINTENANCE
CHECKING CHIPPER DISC SHAFT LOCK NUTS
1. The shaft lock nuts should be visually inspected
every month.
2. Remove the Top Feedwheel Cover to check the
front shaft lock nut, see Figure 1. This shaft lock
nut secures the disc shaft to the chipper disc.
3. Remove the Cover Plate over the chipper shaft to
check the rear shaft lock nut, see Figure 2. This
shaft lock nut secures the chipper disc and disc
shaft assembly against the front chipper bearing.
4. Check the shaft lock nuts to make sure one of the
tangs of the tang washer is still there and bent
over into one of the slots on the shaft lock nut.
5. Check to make sure the shaft lock nuts are not
loose.
6. Check to make sure there is no slop or space
between the shaft lock nut, the tang washer, and
the spacer ring.
7. If a problem is found contact the nearest,
authorized Bandit dealer or Bandit Industries.
Before attempting any type of maintenance,
disengage clutch, wait for the disc to come to a complete
stop, turn o engine, remove the ignition key, make
sure the ignition key is in your possession, install the
disc lock pin, and disconnect the battery.
SAFETY INSTRUCTIONS

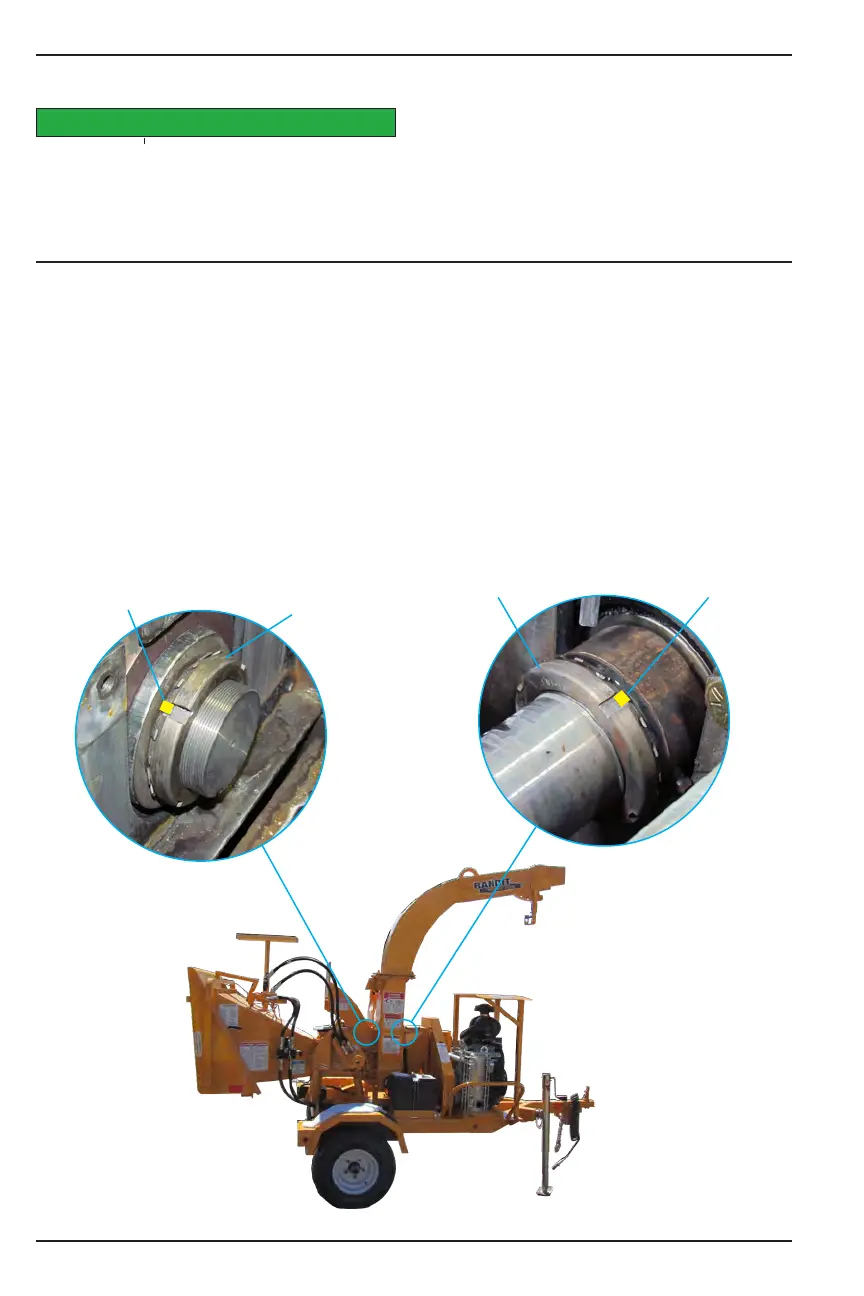

Figure 1
Figure 2
Shaft
Lock Nut
Shaft
Lock Nut
Tang
Tang
