Bandit 75 - Hydraulic Schematic (Dual Feedwheels); Dual Feedwheel Component List

741/21
MODEL 75 REPLACEMENT PARTS
# Part Number Description
1
See Pages
80 - 83
Hydraulic Tank
2
900-3900-07 Hydraulic Tank Strainer
3
900-3900-09 Filter Head
900-3900-10 Filter
4
** Hydraulic Pump
# Part Number Description
5
See Page 75 Autofeed Valve
6
See Page 75 In-Line Pressure Check Kit
7
See Page 76 Feedwheel Control Valve
8
See Page 77 Flow Divider
9
900-3973-15 Top Feedwheel Hydraulic Motor
10
900-3972-05
Bottom Feedwheel Hydraulic
Motor

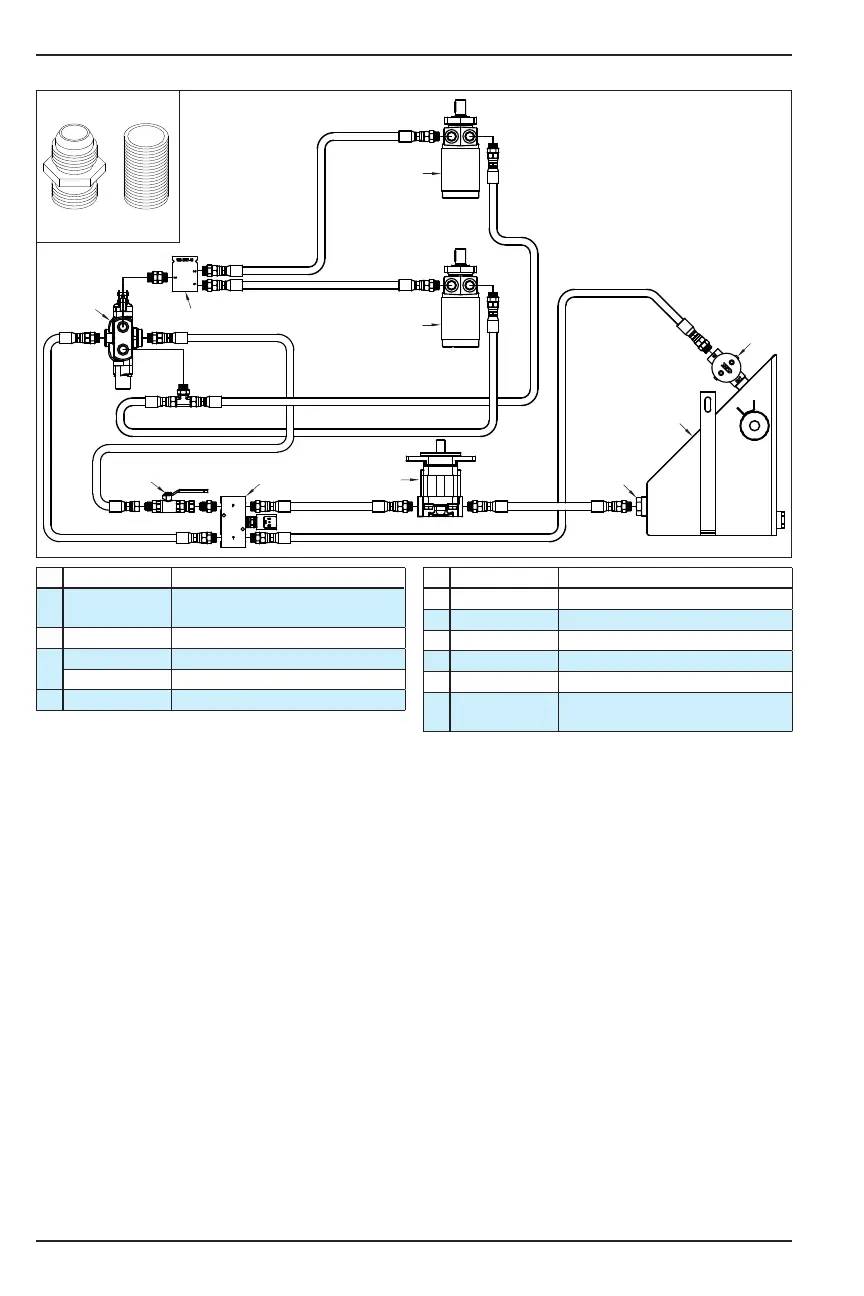

HYDRAULIC SCHEMATIC (DUAL FEEDWHEELS)
Examples of
straight ttings.
PIPE
FITTING
JIC / SAE
O-RING
10
9
8
7
6
5
4
1
2
3
