MODEL 75 REPLACEMENT PARTS

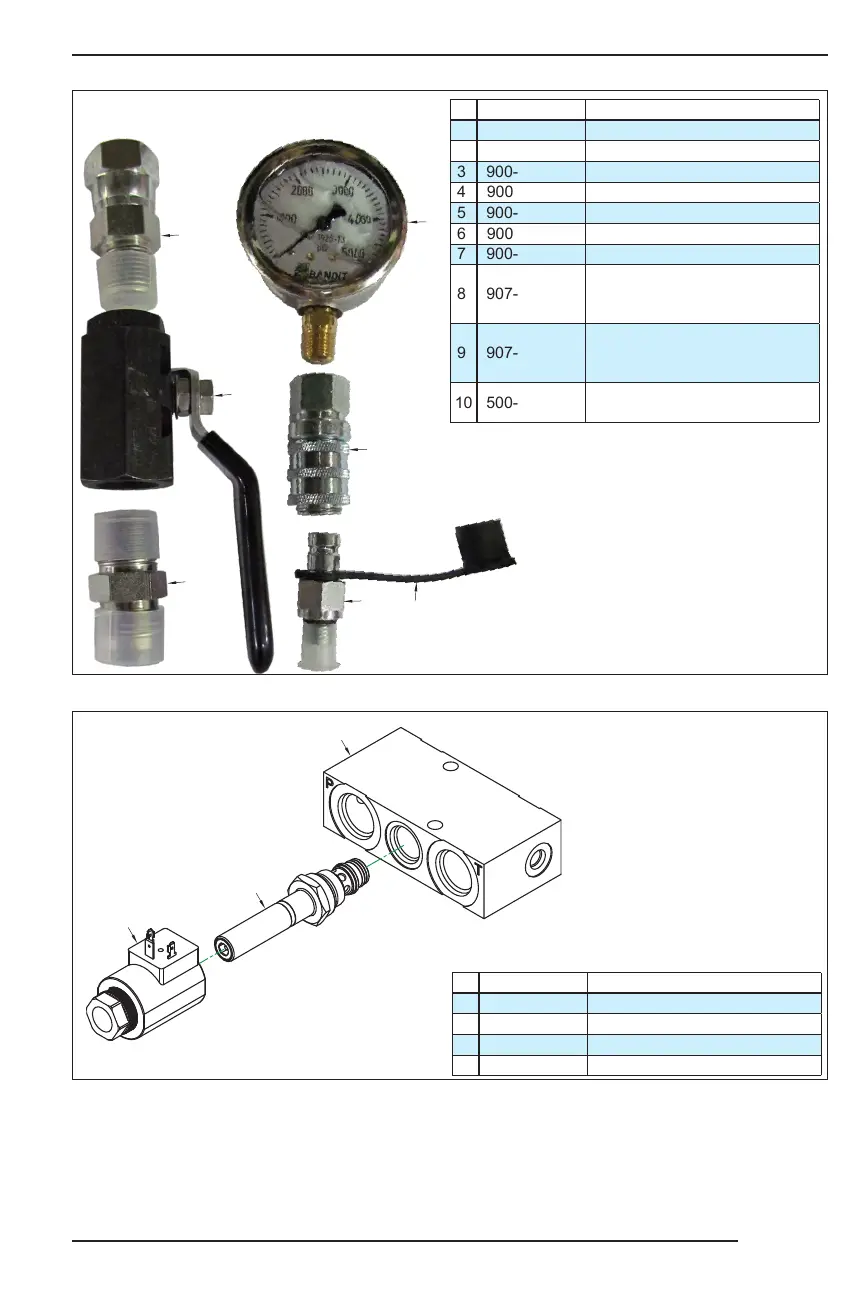

IN-LINE HYDRAULIC PRESSURE CHECK KIT
# Part Number Description
1
900-3920-73 5000 PSI Gauge
2
900-3929-34 Quick Coupler
3
900-3914-42 Test Nipple
4
900-3911-47 Rubber Cap for Test Nipple
5
900-3924-86 Fitting - JIC
6
900-3926-11 Ball Valve
7
900-3922-14 Fitting - Hose
8
907-1000-08
In-Line Pressure Check Kit -
Single Feedwheel
(Includes 1 - 7)
9
907-1000-09
In-Line Pressure Check Kit -
Dual Feedwheel
(Includes 1 - 7)
10
500-0000-43
Gauge & Quick Coupler Only
(Includes 1 & 2)
Torque Autofeed Cartridge Nut to a maximum of 4 to 6 ft.-lbs. (5 to 8 Nm) and install Loctite 243.
Over torque will cause damage and will also void warranty.
AUTOFEED VALVE
# Part Number Description
1
900-3977-37 Autofeed Valve Block Only
2
900-3947-37 Autofeed Solenoid Only
3
900-3947-38 Dump Cartridge Only
4
500-0000-84 Autofeed Valve Assembly
1
2
3
7
6
4
5
1
2
3
