MINI-ARRAY
®
InstructionManual
System Overview
1.2 System Components
1.2.1 Emitter and Receiver Models

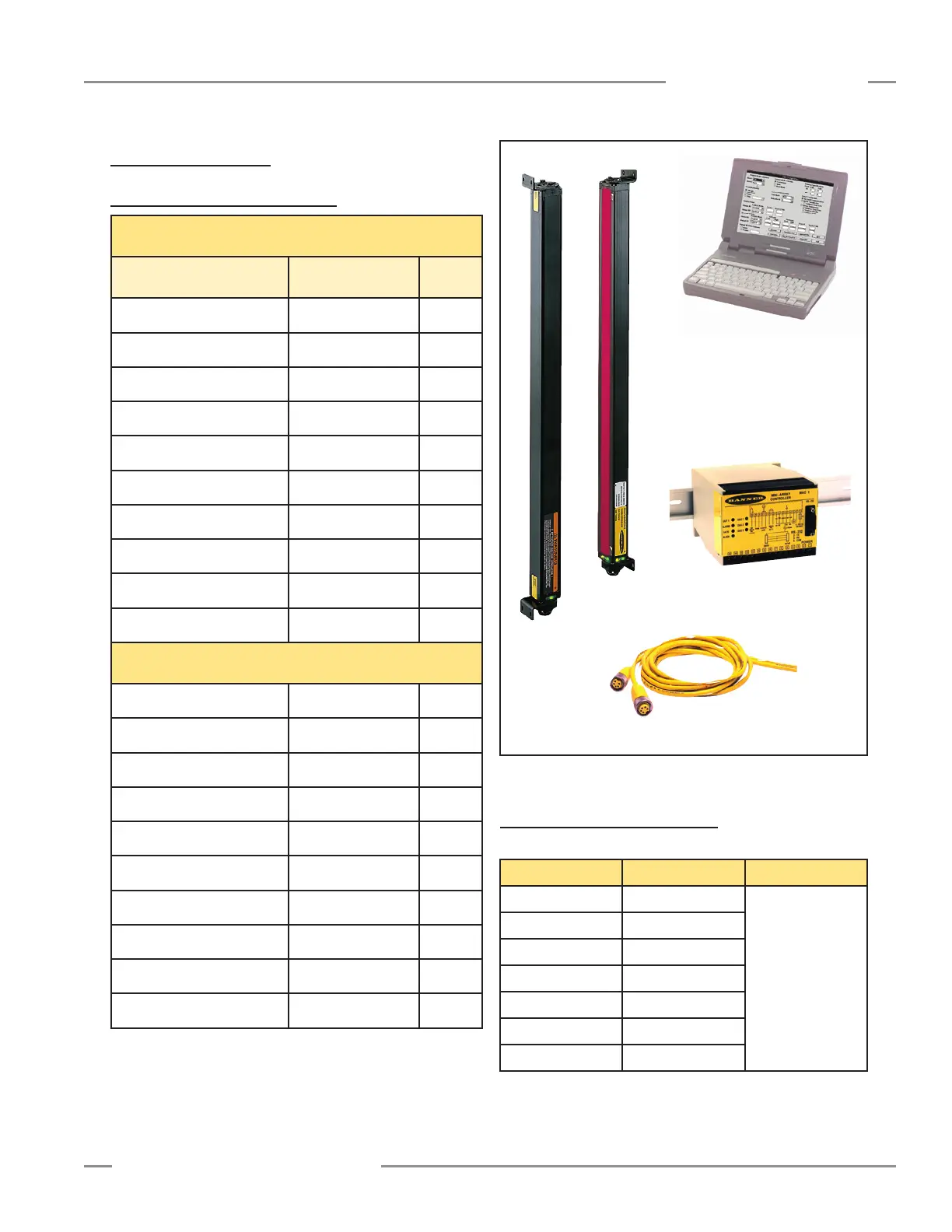

Figure 1-3. MINI-ARRAY system components
Quick-Disconnect
Cables
DIN-Rail-Mountable
Control Module
User-Supplied PC
Configure and monitor the System
with the supplied software and
a PC-compatible computer (see
Section 1.1.4).
Emitter Receiver
1.2.2 Controller-to-Sensor Cables
2requiredpersystem
19.1 mm (3/4") beam spacing – 16 beams/foot
Emitter / Receiver
Models
Array Length
Total
Beams
BMEL616A / BMRL616A
133mm(5.25") 8
BMEL1216A / BMRL1216A
286mm(11.25") 16
BMEL1816A / BMRL1816A
438mm(17.25") 24
BMEL2416A / BMRL2416A
591mm(23.25") 32
BMEL3016A / BMRL3016A
743mm(29.25") 40
BMEL3616A / BMRL3616A
895mm(35.25") 48
BMEL4216A / BMRL4216A
1048mm(41.25") 56
BMEL4816A / BMRL4816A
1200mm(47.25") 64
BMEL6016A / BMRL6016A
1505mm(59.25") 80
BMEL7216A / BMRL7216A
1810mm(71.25") 96
9.5 mm (3/8") beam spacing – 32 beams/foot
BMEL632A / BMRL632A
143mm(5.62") 16
BMEL1232A / BMRL1232A
295mm(11.62") 32
BMEL1832A / BMRL1832A
448mm(17.62") 48
BMEL2432A / BMRL2432A
600mm(23.62") 64
BMEL3032A / BMRL3032A
752mm(29.62") 80
BMEL3632A / BMRL3632A
905mm(35.62") 96
BMEL4232A / BMRL4232A
1057mm(41.62") 112
BMEL4832A / BMRL4832A
1210mm(47.62") 128
BMEL6032A /BMRL6032A
1514mm(59.62") 160
BMEL7232A / BMRL7232A
1819mm(71.62") 192
Model Length QD Connector
QDC-515C
4.6m(15')
5-pinMini-style
straight
QDC-525C
7.6m(25')
QDC-550C
15.2m(50')
MAQDC-575C
22.7m(75')
MAQDC-5100C
30.3m(100')
MAQDC-5125C
37.9m(125')
MAQDC-5150C
45.5m(150')
