Banner AG4soft Software Instruction Manual

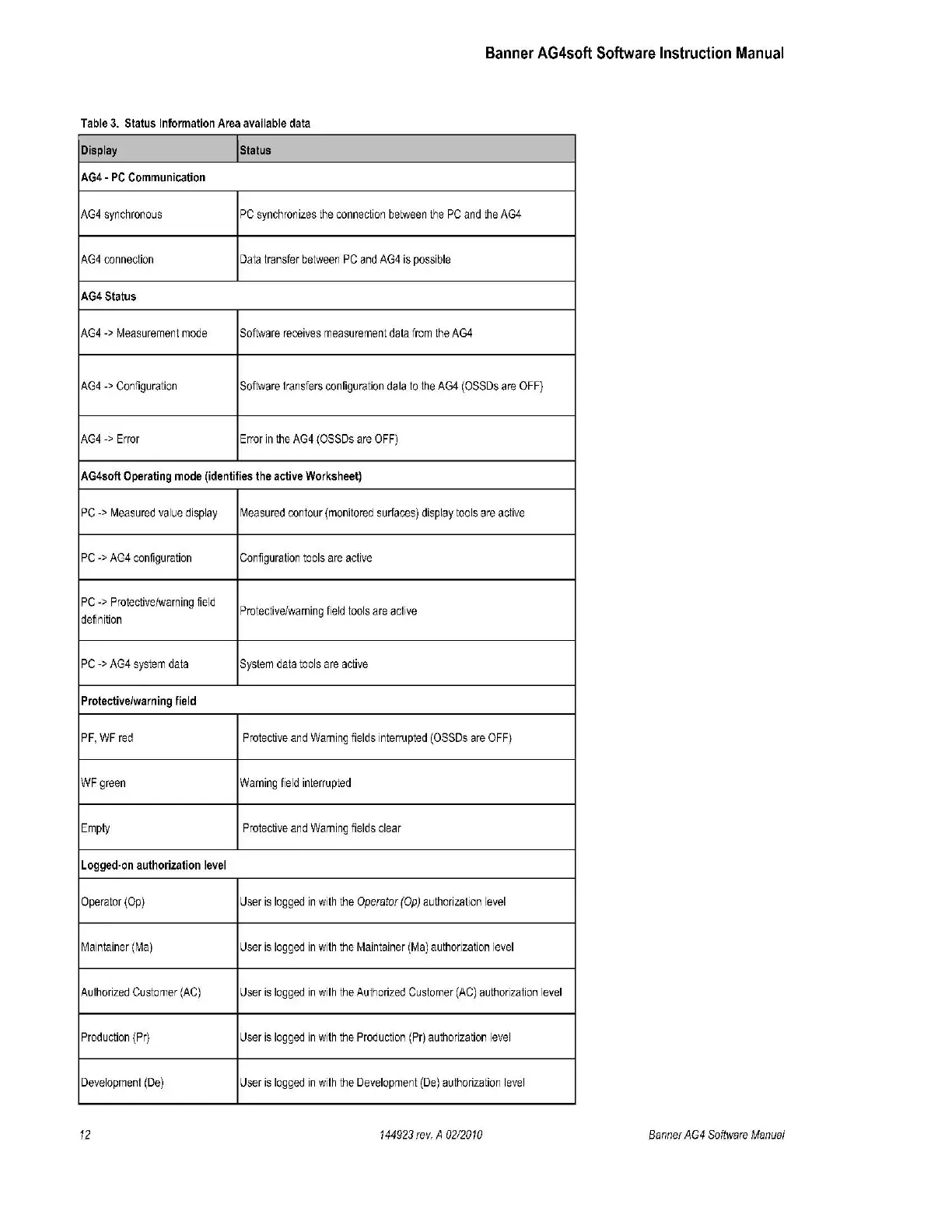

Table 3. Status Information Area available data
Display Status
AG4 ·PC Communication
AG4 synchronous PC synchronizes the connection between the PC and the AG4
AG4 connection Data transfer between PC and AG4 is possible
AG4 Status
AG4 -> Measurement mode
Software receives measurement data from the AG4
AG4 -> Configuration Software transfers configuration data to the AG4 (OSSDs are OFF )
AG4 ->Error Error in the AG4 {OSSDs are OFF)
AG4soft Operating mode (identifies the active Worksheet)
PC-> Measured value display Measured contour ( monitored surfaces) display tools are active
PC -> AG4 configuration Configuration tools are active
PC -> Protective/warning field
Protective/warning field tools are active
definition
PC-> AG4 system data
System data tools are active
Protective/warning field
PF, WF red
Protective and Warning fields interrupted (OSSDs are OFF)
WF green Warning field interrupted
Empty Protective and Warning fields clear
Logged-on authorization level
Operator (Op)
User is logged in with the Operator (Op) authorization level
Maintainer {Ma) User is logged in with the Maintainer (Ma) authorization level
Authorized Customer (AC)
User is logged in with the Authorized Customer (AC) authorization level
Production {Pr) User is logged in with the Production (Pr) authorization level
Development (De) User is logged in with the Development (De) authorization level
12
144923 rev. A 0212010
Banner AG4 So~ware Manual
