Banner AG4soft Software Instruction Manual

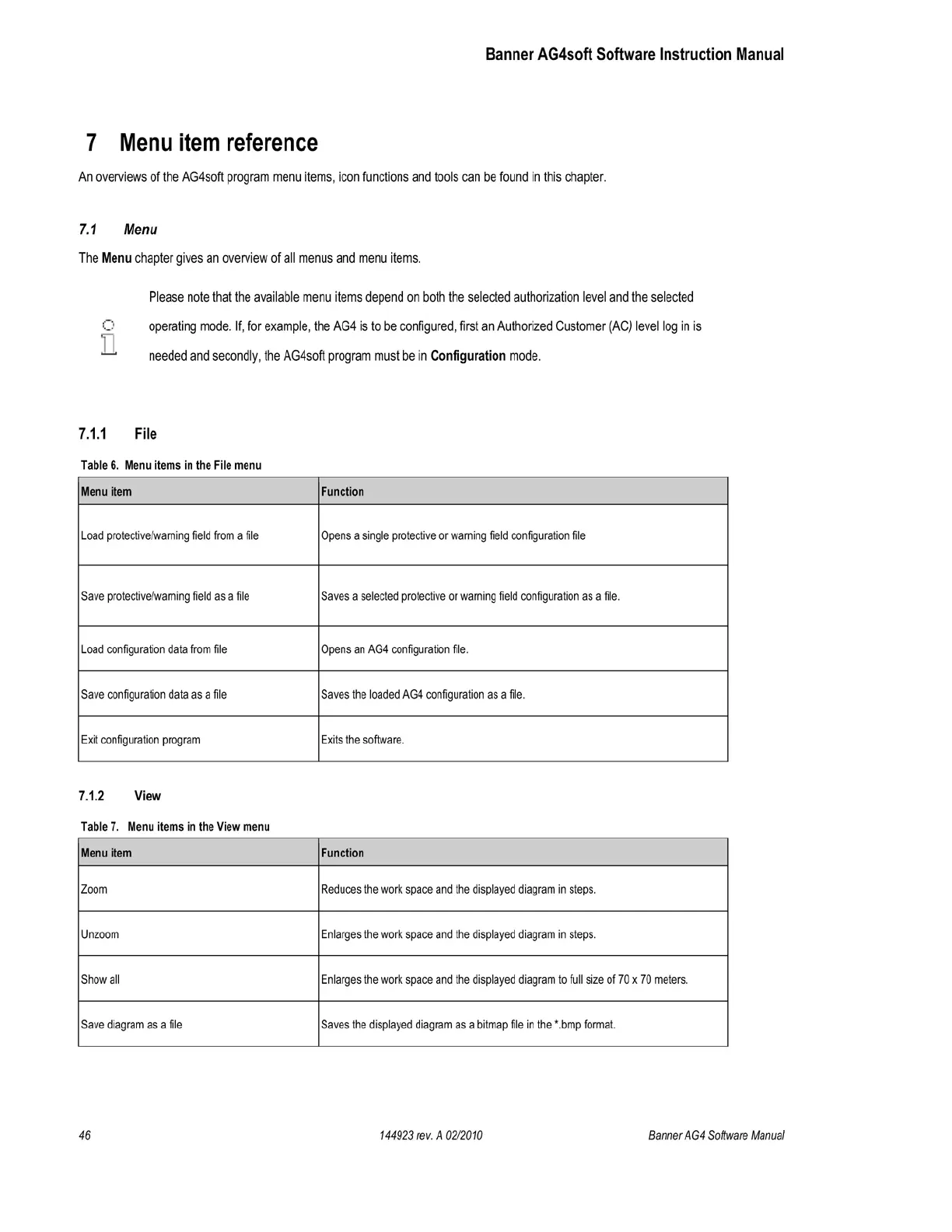

7 Menu item reference
An overviews of the AG4soft program menu items , icon functions and tools can be found in this chapter.
7.1 Menu
The Menu chapter gives an overview of all menus and menu items.
0
'fl
Please note that the available menu items depend on both the selected authorization level and the selected
operating mode . If, for example, the AG4 is to be configured, first an Authorized Customer (AC) level log in is
needed and secondly , the AG4soft program must be in Configuration mode.
7.1.1 File
Table 6. Menu items in the File menu
Menu item Function
Load protective /w arning field from a file
Opens a single protective or warning field configuration file
Save protective / warning field as a file Saves a selected protective or warning field configuration as a file.
Load configuration data from file Opens an AG4 configuration file.
Save configuration data as a file Saves the loaded AG4 configuration as a file.
Exit configuration program Exits the software .
7.1.2 View
Table 7. Menu items in the View menu
Menu item Function
Zoom Reduces the work space and the displayed diagram in steps.
Un zoom Enlarges the work space and the displayed diagram in steps.
Show all Enlarges the work space and the displayed diagram to full size of 70 x 70 meters.
Save diagram as a file Saves the displayed diagram as a bitmap file in the *.bmp format.
46 144923 rev . A 02 1 2010 Banner AG4 Software Manual
