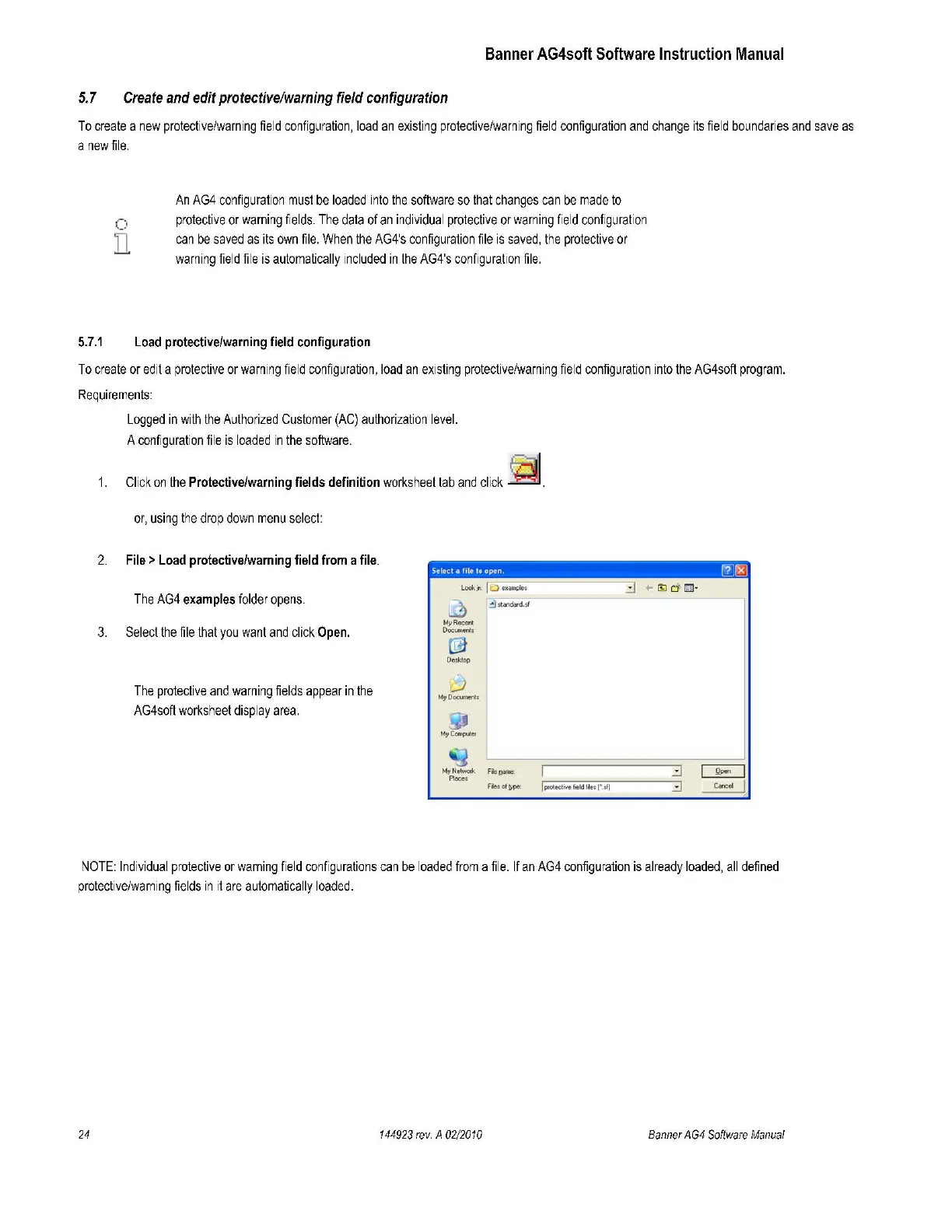

5. 7 Create and edit protective/warning field configuration
To create a new protective/warning field configuration, load an existing protective / warning field configuration and change its fie ld boundaries and save as
a new file.
0
Tl
An AG4 con fi guration must be loaded into the software so that changes can be made to
protective or warning fields. The data of an individual protecti ve or warning field configuration
can be saved as its own file. When the AG4's configuration file is saved, the protective or
warning field file is automatically included in the AG4's config u ration file.
5.7.1 Load protective/warning field configuration
To create or edit a protective or warning field configuration, load an existing protective/warning field configuration into the AG4sofl program.
Requirements:
1.
Logged in with the Aut h orized Customer (AC) authorization level.
A configuration file is loaded in the software.
Click on the Protective/warning fields definition worksheet tab and cl ick ~ .
or, using the drop down menu select:
2. File> Load protective/warning field from a file.
Select a hie to open. L7) [8]
The AG4 examples folder opens.
3. Select the file that you want and click Open.
The protective and warning fields appear in the
AG4sofl worksheet display area.
look " I o • ........,
L0
;:J .. ando<d.sf
My Reem
D°"""""''
OJ
De sktop
~
My Ooo.ments
SJ
My~er
MyNetwoik
Piao ..
Fie[.!o¥1le :
Fleoolll<>«
3
+- i!Jd lm!l ·
~
' ""ectNe,..., ,., r. UJ 3
~
NOTE: Individual protective or warning field configurations can be loaded from a file. If an AG4 configuration is already loaded, al l defined
protective/warning fields in it are automatically loaded.
24 1 44 9 23 rev. A 02/2010 Ba nner A G4 So ftwar e Ma nu al
