Banner AG4 Series Original Instructions

Banner AG4soft Software Instruction Manual

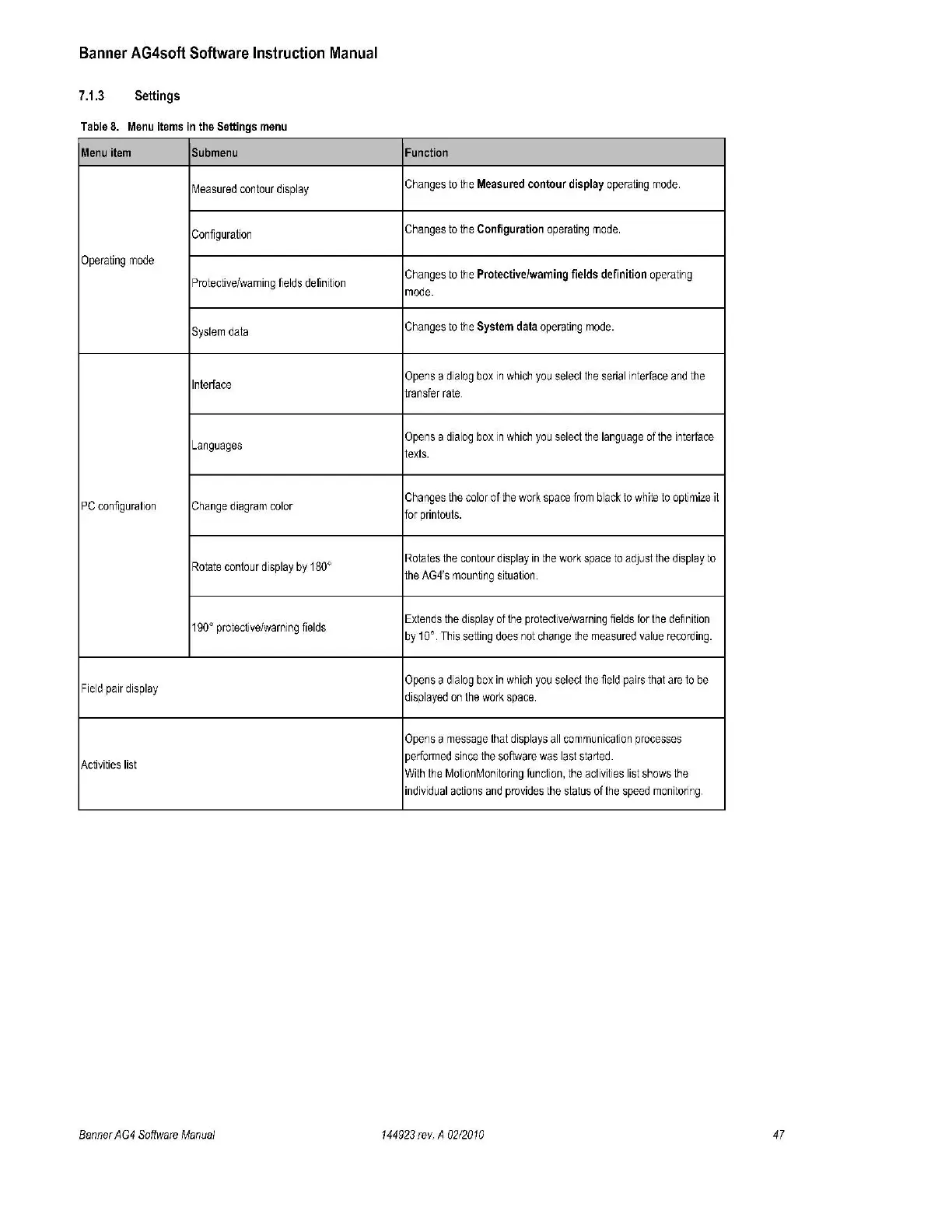

7 .1.3 Sett in gs
Table 8. Menu items in the Settings menu
Menu item Submenu Function
Measured contour display
Changes to the Measured contour display operating mode.
Configuration
Changes to the Configuration operating mode.
Operating mode
Protective/warning fields definition
Changes to the Protective/warning fields definition operating
mode.
System data
Changes to the System data operating mode.
Interface
Opens a dialog box in which you select the serial interface and the
transfer rate.
Languages
Opens a dialog box 1n which you select the language of the interface
texts.
PC configuration Change diagram color
Changes the color of the work spaoe from black to white to optimize it
for printouts.
Rotate contour d 1splay by 180°
Rotates the contour display in the work space to adjust the display to
the AG4's mounting situation.
190° protective/warning fields
Extends the display of the protective/warning fields for the definition
by 10° This setting does not change the measured value recording.
Field pair display
0 pens a dialog box in which you select the field pairs that are to be
displayed on the work space.
Opens a message that displays all communication processes
Activities list
performed since the software was last started.
With the MotionMonitoring function, the activities list shows the
individual actions and provides the status of the speed monitoring
Banner A G4 Software Manual
144923 rev , A 021201 O
47
