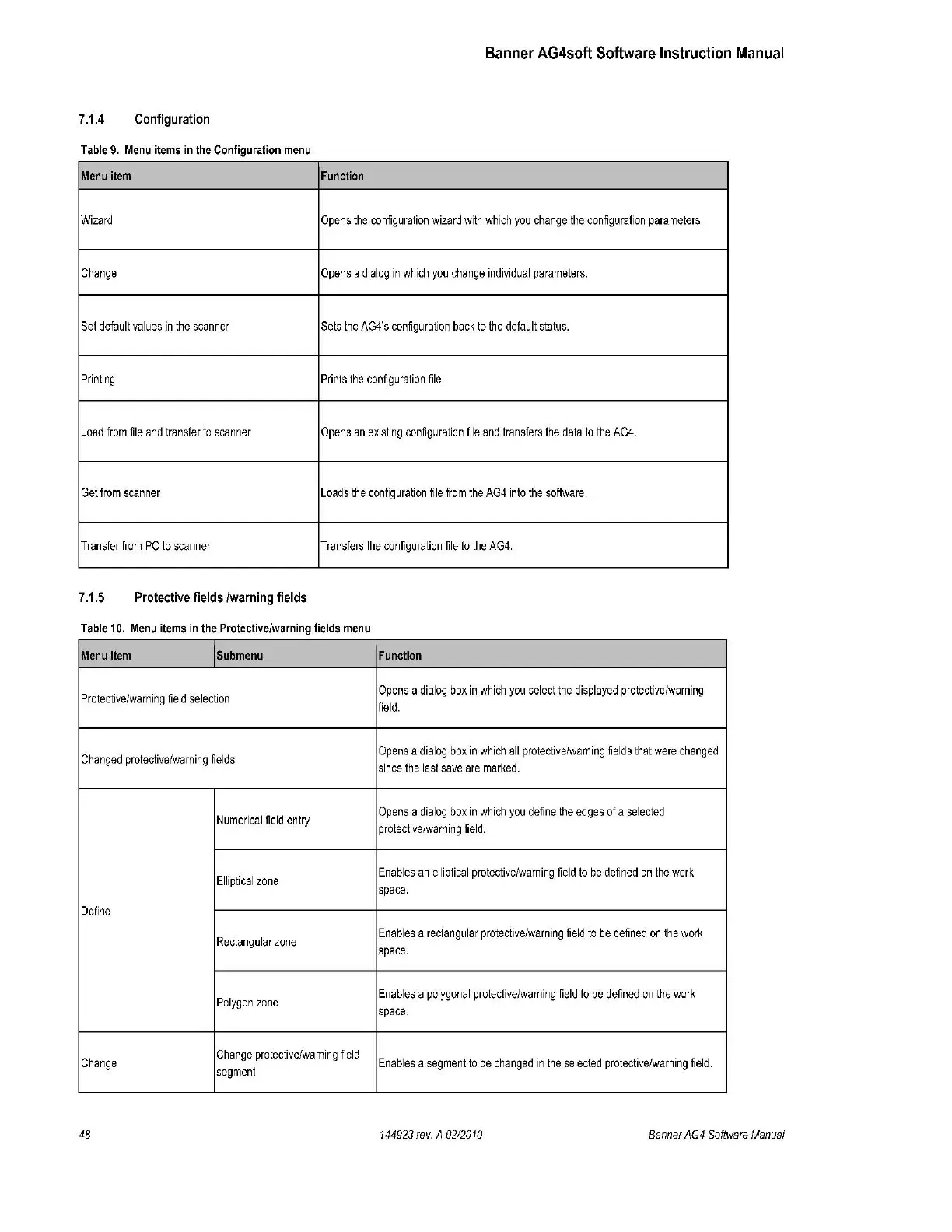

7 .1.4 Configuration
Table 9. Menu items in the Configuration menu
Menu item Function
Wizard Opens the configuration wizard with which you change the configuration parameters.
Change Opens a dialog in which you change individual parameters.
Set default values in the scanner Sets the AG4's conf1gurat1on back to the default status.
Printing Prints the configuration file.
Load from file and transfer to scanner Opens an existing configuration file and transfers the data to the AG4.
Get from scanner Loads the configuration file from the AG4 into the software.
Transfer from PC to scanner Transfers the configuration file to the AG4.
7 .1.5 Protective fields /warning fields
Table 10. Menu items in the Protective/warning fields menu
Menu item Submenu Function
Protective/warning field selection
Opens a dialog box in which you select the displayed protective/warning
field.
Changed protective/warning fields
Opens a dialog box in which all protective/warning fields that were changed
since the last save are marked.
N umer1cal field entry
Opens a dialog box in which you define the edges of a selected
protective/warning field.
Elliptica I zone
Enables an elliptical protective/warning field to be defined on the work
space.
Define
Rectangular zone
Enables a rectangular protective/warning field to be defined on the work
space .
Polygon zone
Enables a polygonal protective/warning field to be defined on the work
space
Change
Change
protective/warning field
Enables a seg men! to be changed 1 n the selected protective/warning field
segment
48
144923 rev. A 0212010
Banner AG4 So~ware Manual
