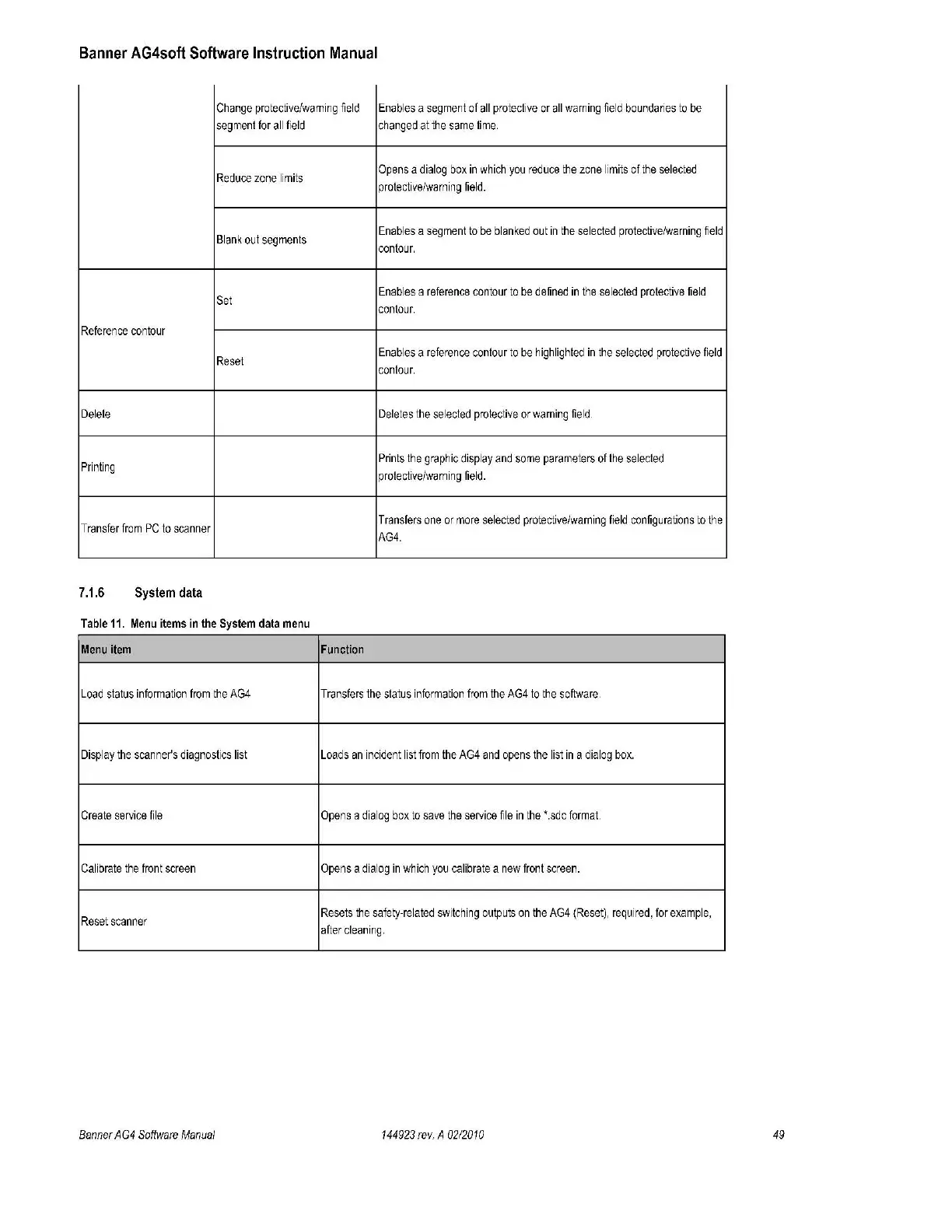

Banner AG4soft Software Instruction Manual
Change protective/wa ming field Enables a segment of all protective or all warning field boundaries to 0e
segment for all field
c hang ed at the same time.
Reduce zone limi ts
Opens a dialog box in which you reduce the zone limits of the selected
protective/warning field.
Blank out segments
Enables a segment to be blanked out in the selected protective/warning field
contour .
Set
Enables a reference contour to 0e defined in the selected protective field
c ontour
Reference contour
Reset
Enables a reference contour to 0e highlighted in the selected protective field
c ontour
Delete Deletes the selected protective or wa rning field.
Printing
Prints the graphic display and some parameters of the sele c ted
protecti v e/warning field.
Transfer from PC to scanner
Transfers o ne or mo re selected prote c tive / warning field c onfigurations to the
AG4.
7 .1.6 System data
Table 11. Menu items in the System data menu
Menu item Function
Load status information from the AG4 Transfers the status information from the AG4 to th e sof t ware.
Display the scanner's diagnostics list Loads an incident list from th e AG4 and opens the list in a dialog box.
Create service file Opens a dialog box to save the service file in the *.sdc format.
Calibrate the front screen Opens a dialog in which you calibrate a new front screen.
Reset scanner
Resets the safety-related switching outputs on the AG4 {Reset), required, for example,
after cleaning
Banner A G4 Software Manual
144923 rev , A 021201 O
49
