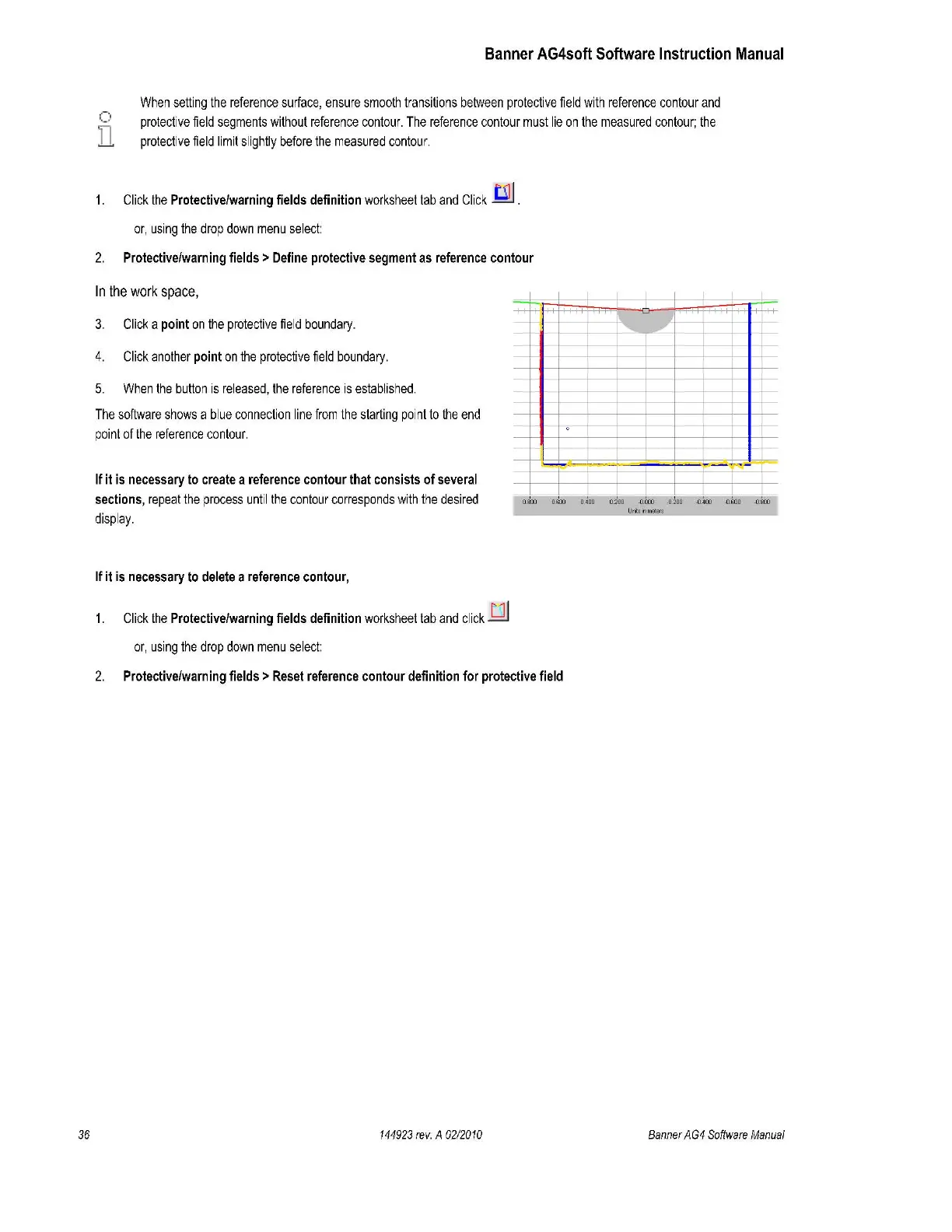

Banner AG4soft Software Instruction Manual
0
'il
When setting the reference surface, ensure smooth transitions between protective field with reference contour and
protective field segments without reference contou r. The reference contour must lie on the measured contour; the
protective field limit slightly before the measured contou r.
1.
Click the Protective/warning fields definition worksheet tab and Click ~ .
or, using the drop down menu select:
2. Protective/warning fields> Define protective segment as reference contour
In the work space,
3. Click a point on the protective field boundary.
4. Click another point on the protective field boundary.
5. When the button is released, the reference is established.
The software shows a blue connection line from the starting po i nt to the end
point of the reference contour.
I
J
I
- · ~ -
If it is necessary to create a reference contour that consists of several
sections, repeat the process unti l the contour co r responds with the desired
disp l ay.
:---+--.- - , -----+- , ---< , c----+- , -·- ,- - .
0.900 0. 600 0.400 0.200 ·0.000 ·0.200 -0 ..4 00 ·0.600 -0.900
Uritt
WI meter~
If it is necessary to delete a reference contour,
1. Click the Protective/warning fields definition worksheet tab and click _gj
or, using the drop down menu select:
2. Protective/warning fields> Reset reference contour definition for protective field
144923 rev . A 0 212010 Banner AG4 Software Manua l
