Banner R-GAGE T30R User Manual

specific distance, ignoring objects beyond this distance (background suppression). Or the sensor can be taught a reference
point to detect the presence or absence of an objects (retroreflective).

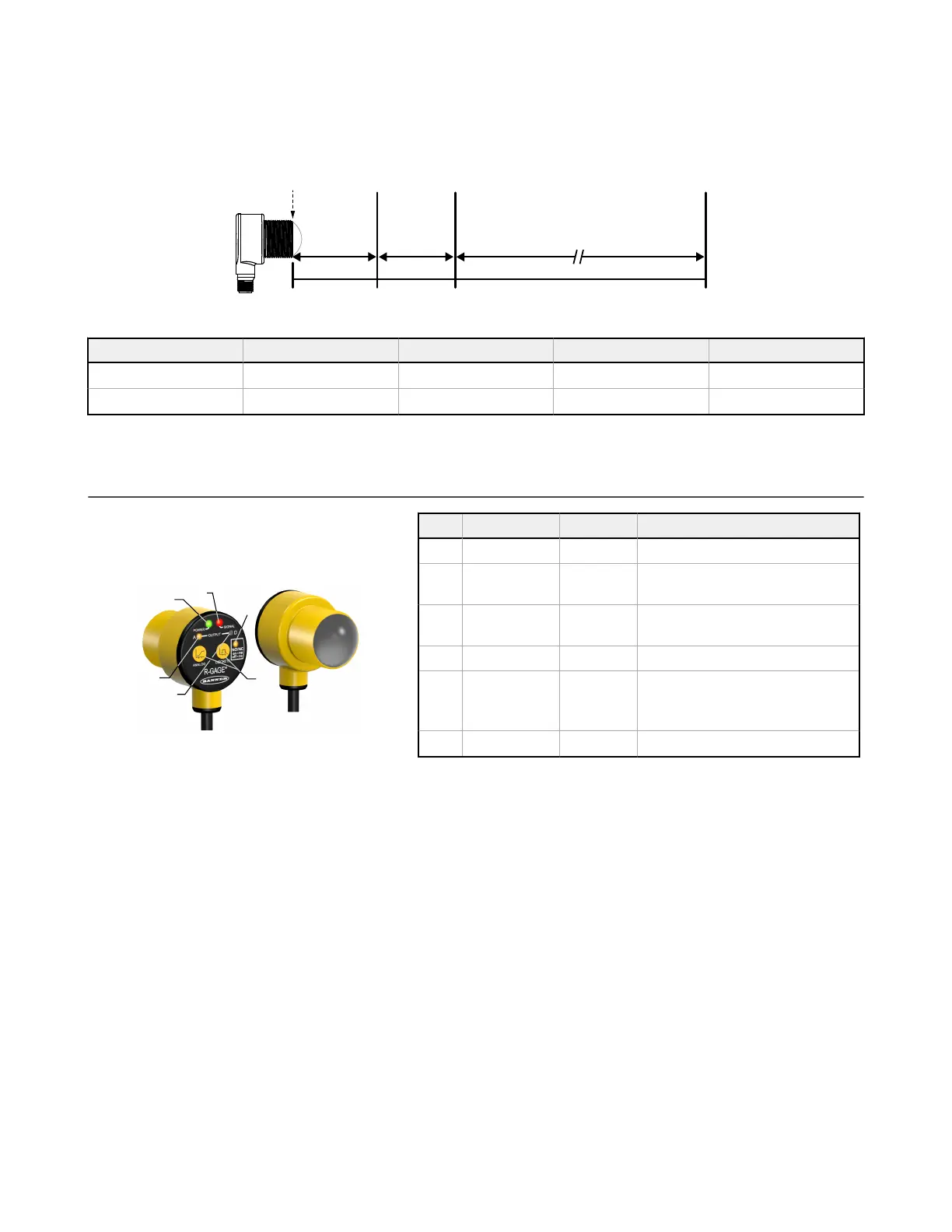

Figure 1. Sensing Range
D0
Measurement
Reference Point
D1 D2 D3
Sensing Range
Reliable detection and
measurement of stationary
and moving objects
Detection
possible, but
not reliably
Reliable
detection
possible
Model D0 (m) D1 (m) D2 (m) D3 (m)
T30R-1515 Models 0 0.15 0.30 15
T30R-4545 Models 0 0.30 NA 10
1.3 Features and Indicators
Figure 2. T30R Features
1
2
5
63
4
LED Color Description
1 Power Green Power ON
2
Signal
Strength
Red
Flashes in proportion to the signal
strength
3 Output 1 Amber
Target is within the taught analog
span or discrete output status
4 Output 2 Amber Discrete output status
5 NO/NC Amber
Normally open/normally closed
status of discrete output
Dual discrete models have two LEDs
6 n/a n/a Output Teach buttons
Signal Strength and the Indicator LEDs
Signal Strength LED
Off: The signal strength less than one.
Flashing: The flashing is in proportion to the signal strength. The frequency increases as the signal strength
increases from greater than 1× the user-selected signal strength threshold to 4× the signal strength threshold.
On: The signal strength is greater than 4× the user-selected signal strength threshold.
Output LEDs
Indicate that a target is present within the taught range and the signal strength is above the required signal strength
threshold.
R-GAGE
®
T30R Sensor
4 www.bannerengineering.com - Tel: + 1 888 373 6767
