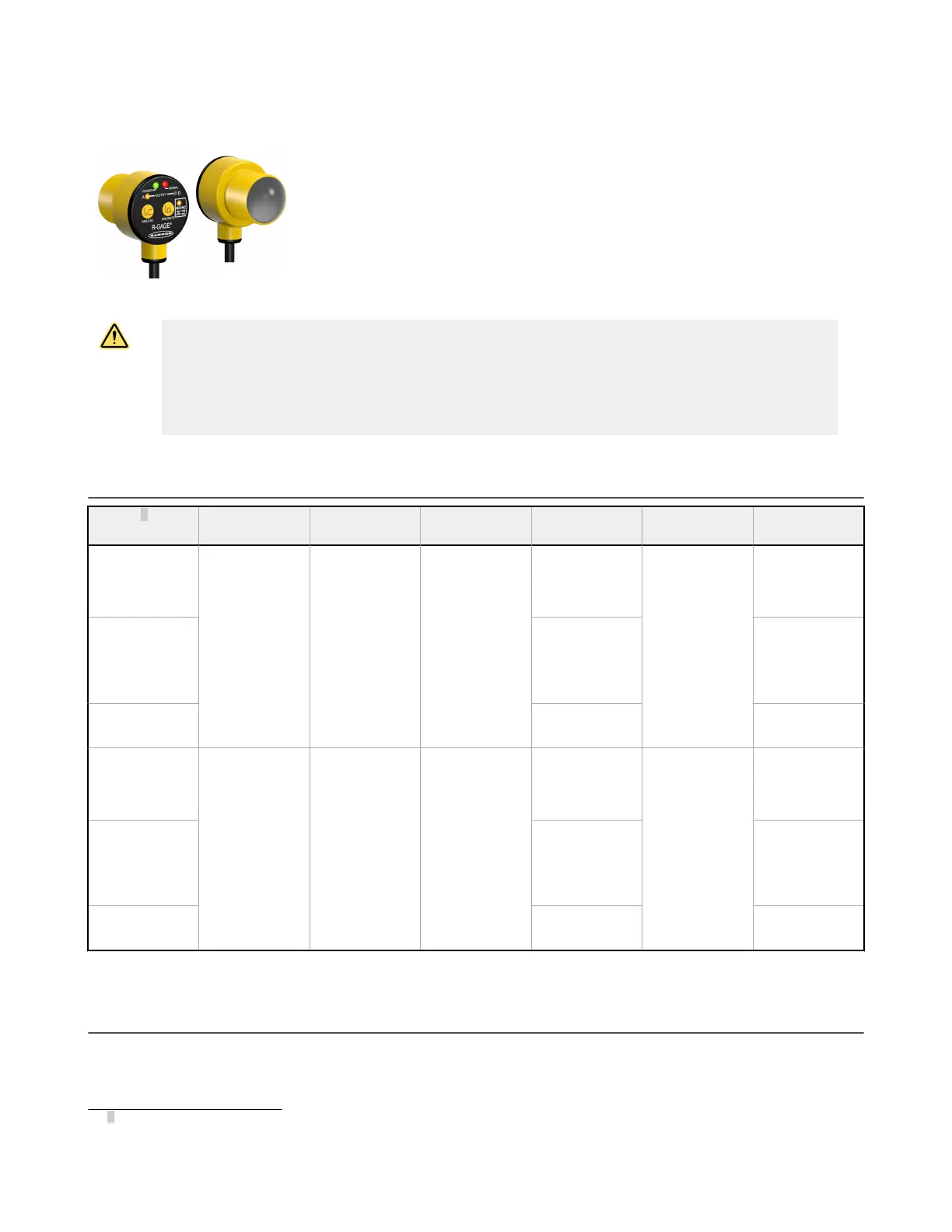

1 Product Description
Radar-Based Sensors for Detection and Measurement of Moving and Stationary Targets
• FMCW radar detects moving and stationary objects
• Adjustable sensing field—ignores objects beyond setpoint
• Easy setup and configuration of range, sensitivity, and output using the Banner
Radar Configuration Software
• Sensing functions are immune to wind, fog, steam, and temperature changes and
resistant to rain and snow
• Compact, rugged IP67 housing withstands harsh environments
WARNING:
• Do not use this device for personnel protection
• Using this device for personnel protection could result in serious injury or death.
• This device does not include the self-checking redundant circuitry necessary to allow its use in
personnel safety applications. A device failure or malfunction can cause either an energized (on)
or de-energized (off) output condition.
1.1 Models
Models
1
Beam Pattern Maximum Range Connection Supply Voltage Telecom
Approved
Output
T30R-1515-KIQ
15 x 15 degrees 15 m (49.2 ft)
Integral M12/
Euro-style quick
disconnect
10 V DC to 30 V
DC
Telecom
approved for US,
Europe, UK,
Australia, and
New Zealand
Analog current
(4 mA to 20 mA
and 1 NPN/PNP
discrete)
T30R-1515-KUQ
12 V DC to 30 V
DC
Analog voltage
(0 V to 10 V or
0.5 V to 4.5 V,
and 1 NPN/PNP
discrete)
T30R-1515-KDQ
10 V DC to 30 V
DC
Dual discrete
(NPN/PNP)
T30R-4545-KIQ
45 x 45 degrees 10 m (32.8 ft)
Integral M12/
Euro-style quick
disconnect
10 V DC to 30 V
DC
Telecom
approved for US,
Europe, UK,
Australia, and
New Zealand
Analog current
(4 mA to 20 mA
and 1 NPN/PNP
discrete)
T30R-4545-KUQ
12 V DC to 30 V
DC
Analog voltage
(0 V to 10 V or
0.5 V to 4.5 V,
and 1 NPN/PNP
discrete)
T30R-4545-KDQ
10 V DC to 30 V
DC
Dual discrete
(NPN/PNP)
1.2 Overview
The T30R is an industrial radar sensor that uses high frequency radio waves from an internal antenna. It detects high-
dielectric targets, such as metal or large amounts of water, and lower-dielectric materials, such as wood, rock, or organic
material. The sensor can be configured with software, IO-Link, remote input wires, or push buttons to sense objects up to a
1
Integral 5-pin M12 quick disconnect models are listed. To order the 150 mm (6 in) PUR cable model with a M12/Euro-style quick
disconnect, replace the suffix 'Q" with "QP" in the model number. For example, T30R-1515-KIQP.
R-GAGE
®
T30R Sensor
