BAOFENG

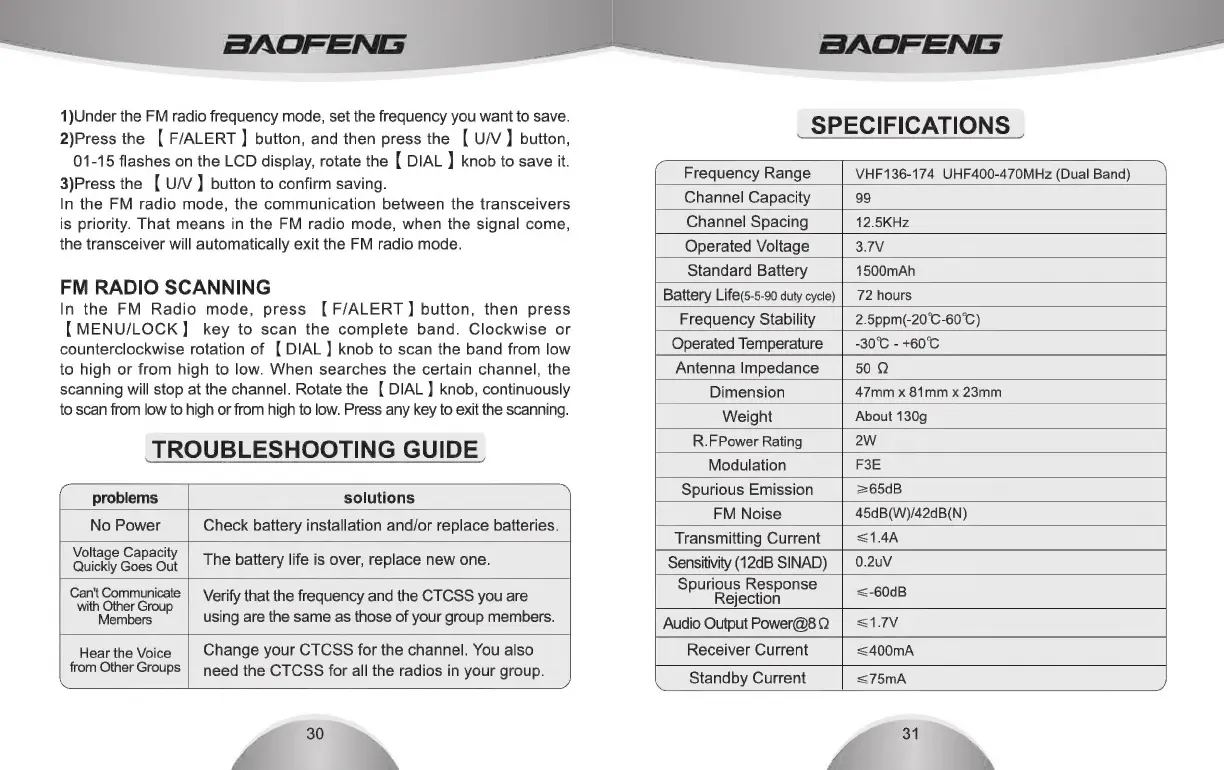

1)Under the FM radio frequency mode, set the frequency you want to save.
2)Press the [ F/ALERT ] button, and then press the [ U/V ] button,
01-15 flashes on the LCD display, rotate the [ DIAL } knob to save it.
3)Press the [ U/V ] button to confirm saving.
In the FM radio mode, the communication between the transceivers
is priority. That means in the FM radio mode, when the signal come,
the transceiver will automatically exit the FM radio mode.
FM RADIO SCANNING
In the FM Radio mode, press [F/ALERT] button, then press
{ MENU/LOCK] key to scan the complete band. Clockwise or
counterclockwise rotation of { DIAL] knob to scan the band from low
to high or from high to low. When searches the certain channel, the
scanning will stop at the channel. Rotate the [ DIAL] knob, continuously
to scan from low to high or from high to low. Press any key to exit the scanning.
TROUBLESHOOTING GUIDE
problems solutions
No Power Check battery installation and/or replace batteries.
Voltage Capacity wee
Quickly Goes Out The battery life is over, replace new one.
Can't Communicate | Verify that the frequency and the CTCSS you are
with Other Group :
Members using are the same as those of your group members.
Hear the Voice Change your CTCSS for the channel. You also
from Other Groups | need the CTCSS for all the radios in your group.
30
BAOFENG
SPECIFICATIONS
Frequency Range
VHF 136-174 UHF400-470MHz (Dual Band)
Channel Capacity
99
Channel Spacing 12.5KHz
Operated Voltage 3.7V
Standard Battery 1500mAh
Battery Life(5-5-90 duty cycle) | 72 hours
Frequency Stability 2.5ppm(-20°C-60'°C)
Operated Temperature -30T - +60°C
Antenna Impedance 50 Q
Dimension 47mm x 81mm x 23mm
Weight About 130g
R.FPower Rating 2W
Modulation [Fale
Spurious Emission =>65dB
FM Noise 45dB(W)/42dB(N)
Transmitting Current <1.4A
Sensitivity (12dB SINAD) 0.2uV
sia os lie <-60dB
Audio Output Power@8Q | <1.7V
Receiver Current <400mA
Standby Current <75mA
