Baofeng UV-3R+ - Installation of Accessories; Antenna Installation; Belt Clip Installation

Li-ion Battery Drop-in Charging Tray
Optional Accessories
Cigarette-Lighter Adapter Data Cable(VGA)
BAOFENG
CO Lf”
Hand Strap

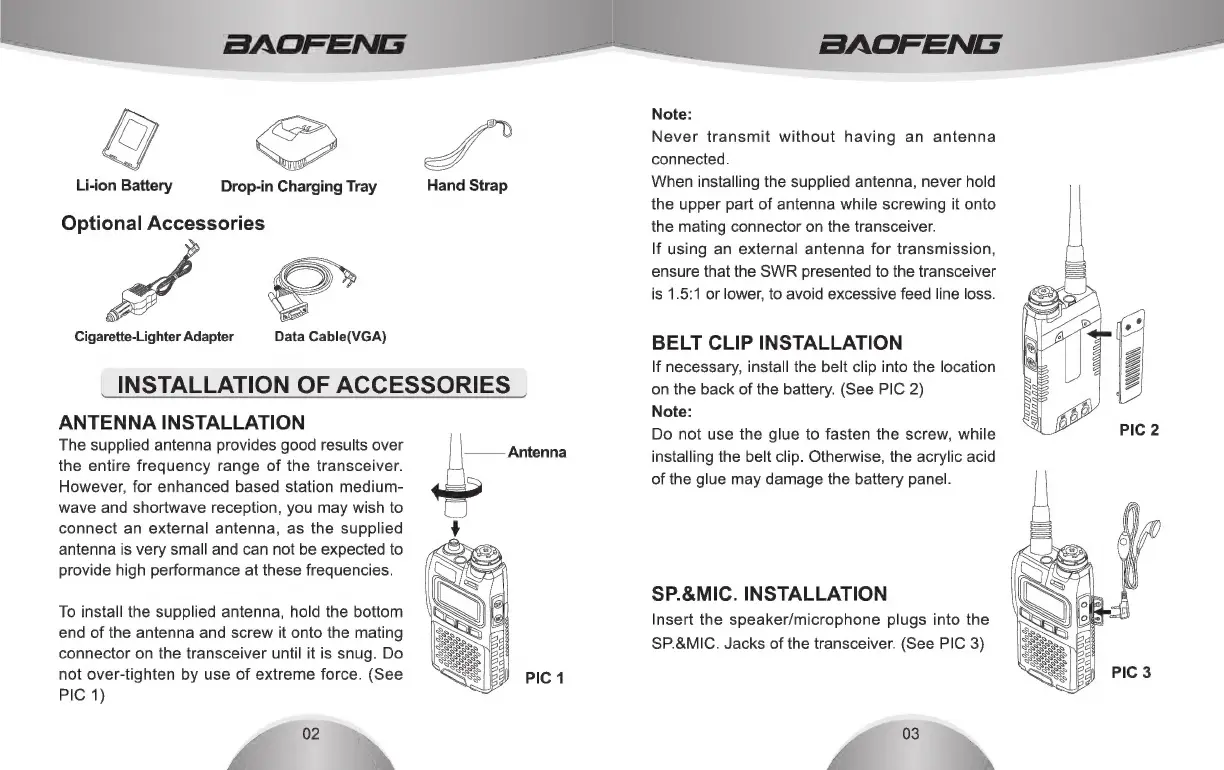

INSTALLATION OF ACCESSORIES
ANTENNA INSTALLATION
The supplied antenna provides good results over
the entire frequency range of the transceiver.
However, for enhanced based station medium-
wave and shortwave reception, you may wish to
connect an external antenna, as the supplied
antenna is very small and can not be expected to
provide high performance at these frequencies.
To install the supplied antenna, hold the bottom
end of the antenna and screw it onto the mating
connector on the transceiver until it is snug. Do
not over-tighten by use of extreme force. (See
PIC 1)
yF 6 Cté<‘( SY
Antenna
AOR ENG
Note:
Never transmit without having an antenna
connected.
When installing the supplied antenna, never hold
the upper part of antenna while screwing it onto
the mating connector on the transceiver.
If using an external antenna for transmission,
ensure that the SWR presented to the transceiver
is 1.5:1 or lower, to avoid excessive feed line loss.
BELT CLIP INSTALLATION
If necessary, install the belt clip into the location
on the back of the battery. (See PIC 2)
Note:
Do not use the glue to fasten the screw, while
installing the belt clip. Otherwise, the acrylic acid
of the glue may damage the battery panel.
SP.&MIC. INSTALLATION
Insert the speaker/microphone plugs into the
SP.&MIC. Jacks of the transceiver. (See PIC 3)
PIC 2
