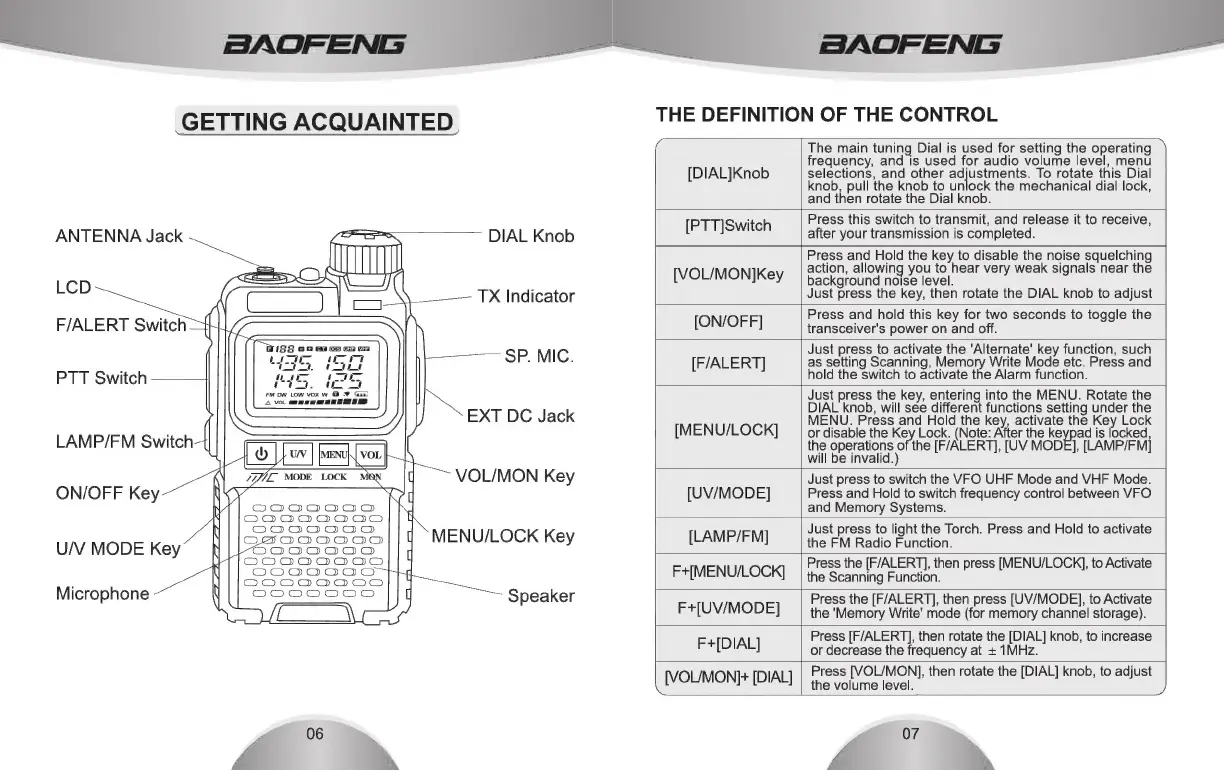

GETTING ACQUAINTED
ANTENNA Jack DIAL Knob
LCD TX Indicator
F/ALERT Switch
SP. MIC.
PTT Switch ——| ac fe
ie EXT DC Jack
LAMP/FM Switch
ON/OFF Key
U/V MODE Key
Microphone
| ALO UV | |MENU\| VOL
(GIL, MODE LOCK MON
06
VOL/MON Key
MENU/LOCK Key
Speaker
BAOFENG
THE DEFINITION OF THE CONTROL
[DIAL]Knob
The main tuning Dial is used for setting the operating
frequency, and is used for audio volume level, menu
selections, and other adjustments. To rotate this Dial
knob, pull the knob to unlock the mechanical dial lock,
and then rotate the Dial knob.
[PTT]Switch
Press this switch to transmit, and release it to receive,
after your transmission is completed.
[VOL/MON]Key
Press and Hold the key to disable the noise squelching
action, allowing you to hear very weak signals near the
background noise level.
Just press the key, then rotate the DIAL knob to adjust
[ON/OFF]
Press and hold this key for two seconds to toggle the
transceiver's power on and off.
[F/ALERT]
Just press to activate the ‘Alternate’ key function, such
as setting Scanning, Memory Write Mode etc. Press and
hold the switch to activate the Alarm function.
[MENU/LOCK]
Just press the key, entering into the MENU. Rotate the
DIAL knob, will see different functions setting under the
MENU. Press and Hold the key, activate the Key Lock
or disable the Key Lock. (Note: After the keypad is locked,
the operations of the [F/ALERT], [UV MODE], [LAMP/FM]
will be invalid.)
[UV/MODE]
Just press to switch the VFO UHF Mode and VHF Mode.
Press and Hold to switch frequency control between VFO
and Memory Systems.
[LAMP/FM]
Just press to light the Torch. Press and Hold to activate
the FM Radio Function.
F+[MENU/LOCK]
Press the [F/ALERT], then press [MENU/LOCK], to Activate
the Scanning Function.
F+[UV/MODE]
Press the [F/ALERT], then press [UV/MODE], to Activate
the 'Memory Write’ mode (for memory channel storage).
F+[DIAL]
Press [F/ALERT], then rotate the [DIAL] knob, to increase
or decrease the frequency at + 1MHz.
[VOL/MONI [DIAL]
Press [VOL/MON], then rotate the [DIAL] knob, to adjust
the volume level. 4
