2. Place the cleaner in vertical position on the
caddy base with the rear tracks on the caddy
side wedges (see Figure 21).
3. Loosely coil the power cable starting at the
cleaner and moving toward the connection
point at control unit. Store the cable by
wrapping it around the hook located on the
front of the caddy (see Figure 21).
4. Disconnect the cable from the control unit and
coil loosely around the caddy hook.
5. If you removed the control unit from the
caddy, replace it by aligning the bottom of the
control unit with the caddy notch, hook it onto
the caddy, then press rmly in place until you
hear a "click".

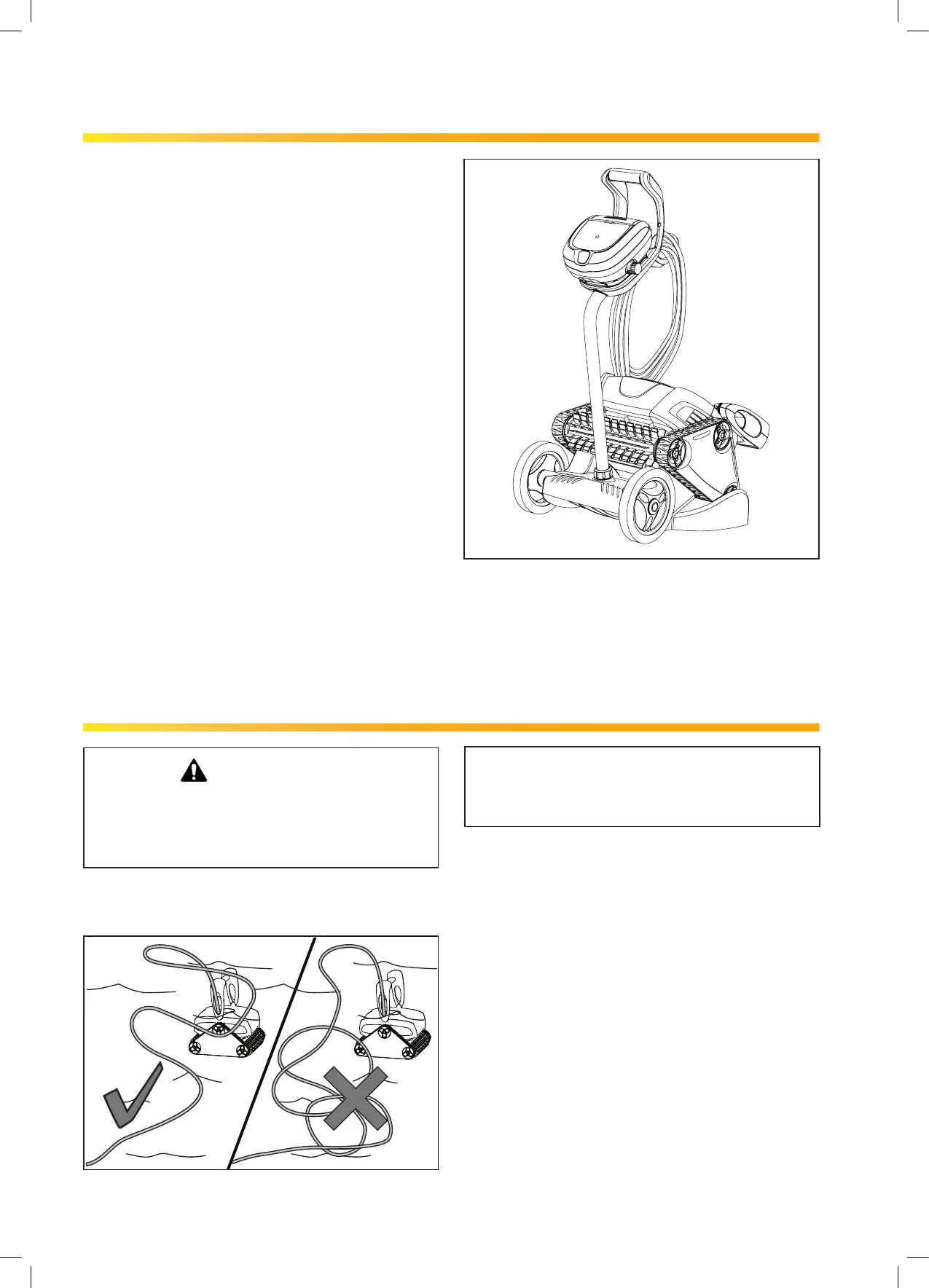

Figure 21. Cleaner Stored Correctly on Caddy
Section 4. Maintenance
WARNING
To avoid electric shock and other hazards which
could result in permanent injury or death, disconnect
(unplug) the cleaner from the power source before
performing any cleaning and maintenance.
4.1 Cord Tangling
Figure 22. Correct Floating Cable
Section 3. Operation
IMPORTANT
The floating cable may become tangled if correct
procedure is not followed after each cleaning cycle.
After every cleaning cycle:
1. Unplug the oating cable from the Control
box.
2. Remove the cleaner from the pool and
untangle all kinks and coils in the oating
cable starting at the cleaner head (Figure 23).
3. Plug the oating cable back into Control box
and store cleaner out of direct sunlight for next
use.
12 H670900_REVA
