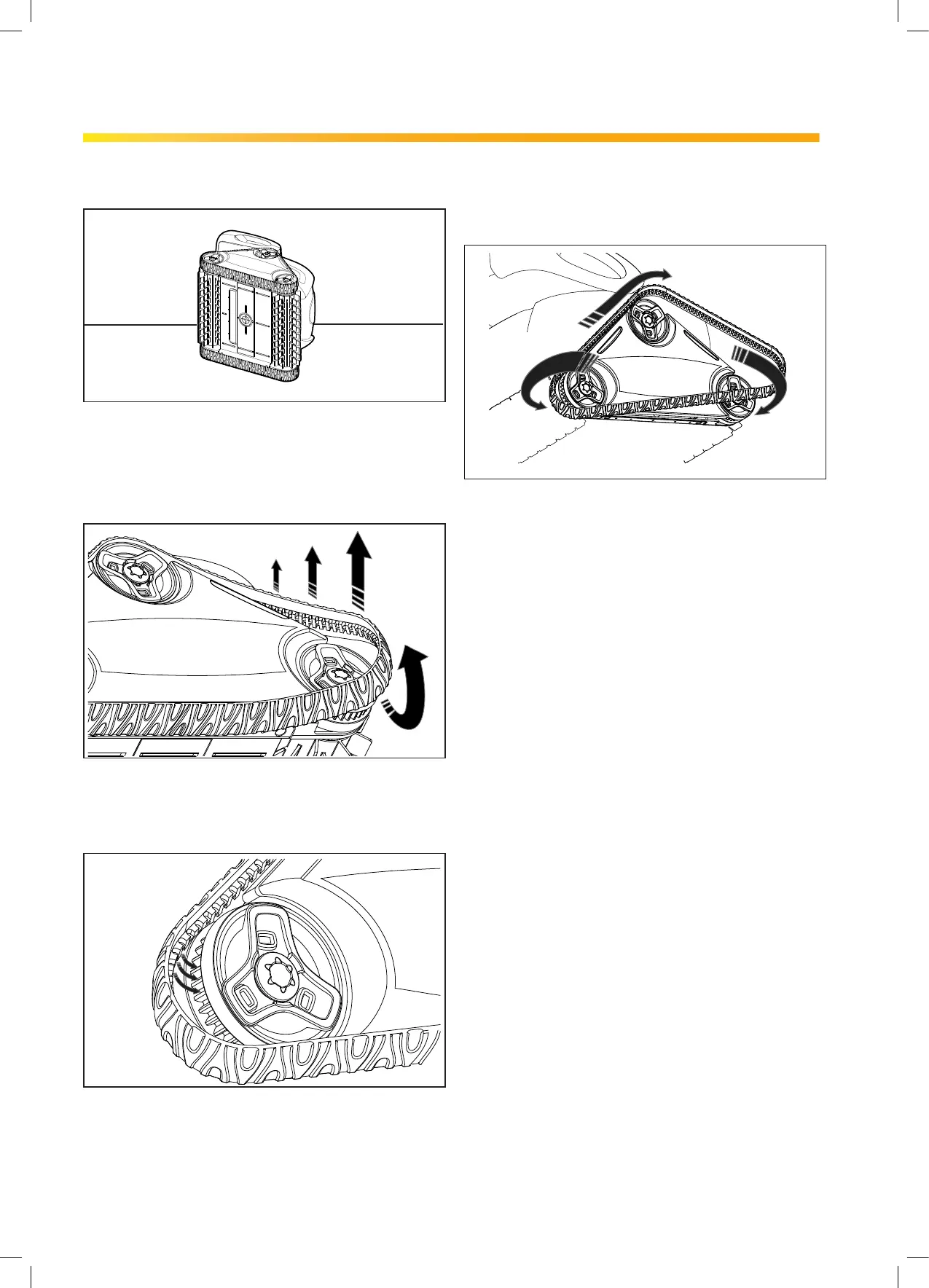

4.3 Replacing the Track
1. Stand the cleaner on its side (Figure 29).
Figure 29. Stand Cleaner on its Side
2. Starting at one of the wheels, pull on the inside
of the track to separate the tire lip from the
wheel. See Figure 30. Remove the track from
the cleaner.
Figure 30. Pull the Track Over Wheels to Remove
3. To install a new track, place the inside rib of
the track into the groove in the rst wheel. See
Figure 31.
Figure 31. Position Track into Wheel Grooves
1
4. Stretch the track around the second wheel, then
pull over the last wheel (see Figure 32). Push
and position the rib of the track so that the track
is seated properly in the groove of the wheel.
1
3
2
Figure 32. Stretch Track Around Wheels
5. Verify the rib of the track is positioned properly
within the groove of each of the three wheels
and under the track guide. If necessary, turn the
wheels gently to seat the track.
Section 4. Maintenance
14 H670900_REVA
