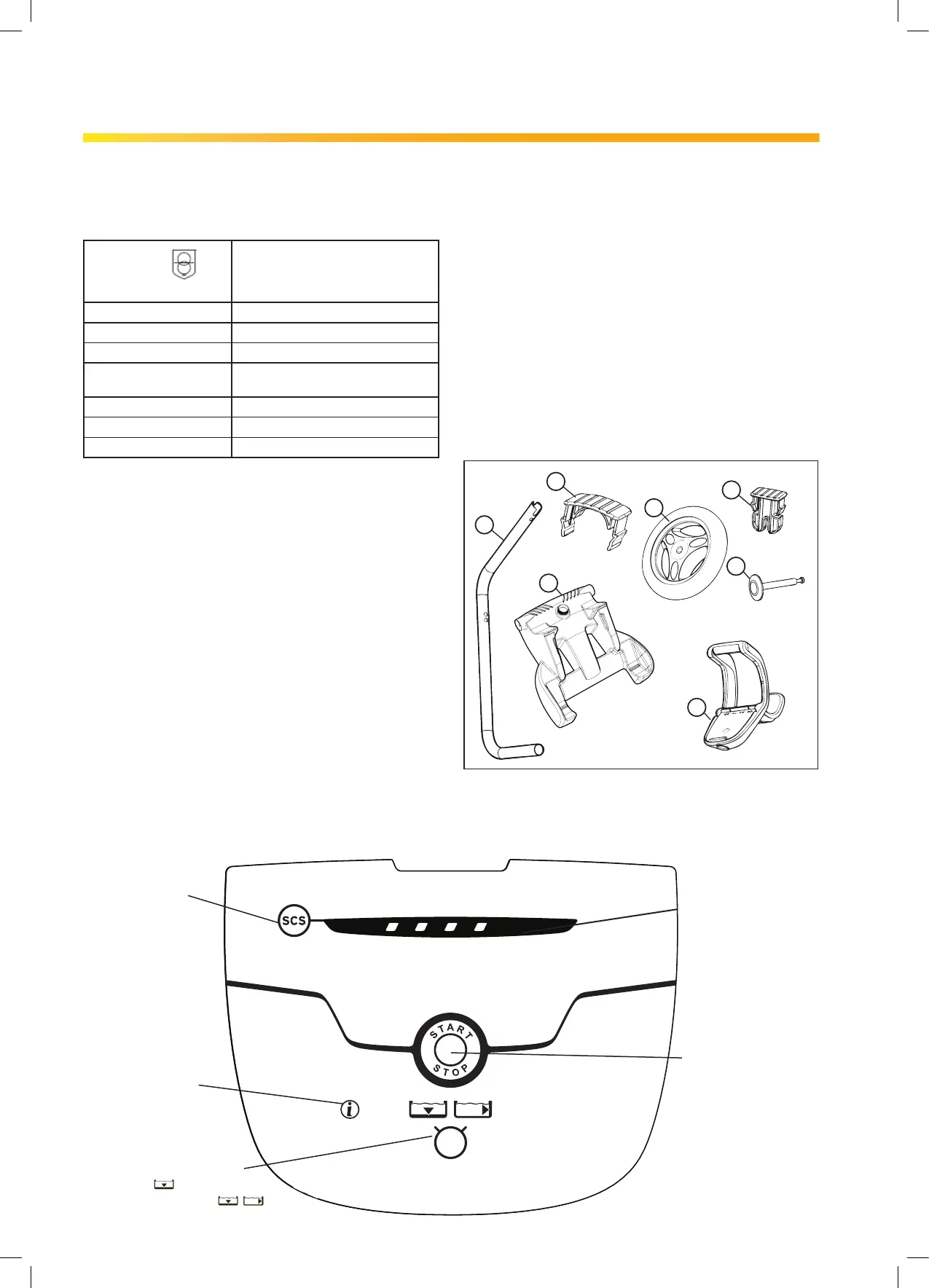

baracuda Captura Plus - Getting Started

2.1 GeneralSpecications
The general specications for the cleaner are as
follows:
Control box
supply
voltage
220-240 VAC, 50 Hz; short circuit-proof
safety isolating type
Supply voltage 30 V DC
Installed load 150 W max
Cable length 15m (50 ft)
Cleaner size
(WxDxH)
41 x 42 x 25 cm
Weight of Cleaner 9 kg
Filtration All-purposeltercanister
Cycle lengths Variable programming
This cleaner is a double-insulated product. A double-
insulated electrical appliance is one which has been
designed in such a way that it does not require a
safety connection to ground. The basic requirement
for double-insulation is that no single failure will
result in dangerous voltage becoming exposed so
that it might cause an electric shock and that this
is achieved by having two (2) layers of insulating
material surrounding live parts or by using reinforced
insulation. Therefore, devices having double-insulated
construction, such as this cleaner, do not require a
grounded (three-prong) plug.
2.2 Unpacking
The packaging should contain the following items:
• Baracuda
®
Robotic Cleaner
• Floating Cable
• Control box
• Transport and storage caddy assembly components
(Figure 1)
(a) handle frame
(b) support blocks (x 2)
(c) wheels (x 2)
(d) wheel locking clips (x 2)
(e) wheel axle / hubcap (x 2)
(f) base unit
(g) caddy handle
A
x 2
B
C
D
x 2
x 2
E
x 2
F
G
Figure 1. Transport Caddy Assembly
Components
Section 2. Getting Started
SURFACE CONTROL SYSTEM
1 2 3 4ROUGH SMOOTH
Select Cleaning Surface
• Floor
• Floor and Walls
Start/Stop
Cleaner
Cleaner Error
Indicator
Surface Control
System (SCS)
for wall cleaning
(rough to smooth
surfaces)
LEDs indicating
pump strength for
SCS
2.3 Cleaner Control Box
4 H670900_REVA
