2.5 Connecting the Control Unit to the
Caddy
1. Align the bottom of the control unit with the
notch at bottom of the control unit hook on the
caddy (Figure 8).

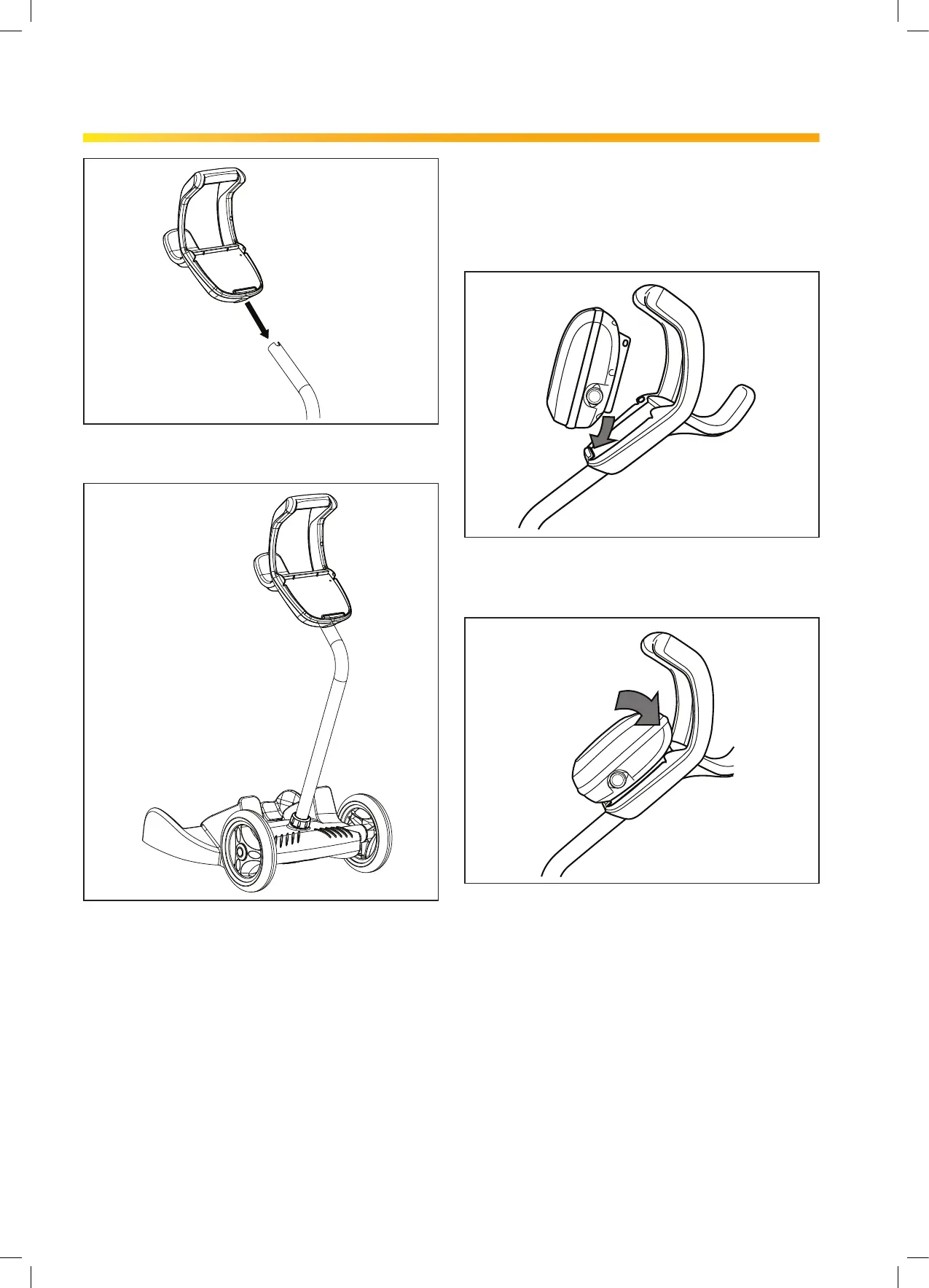

Figure 8. Align Control Unit on Caddy Hook
2. Press control unit onto the caddy hook until it
snaps and locks into position (Figure 9).
Figure 9. Attach the Control Unit onto Caddy
Section 2. Getting Started
Figure 6. Attach Caddy Handle
Figure 7. Fully Assembled Transport Caddy
