2.1 Main Components
Naming Conventions
Left
Right
Back
Front
Top

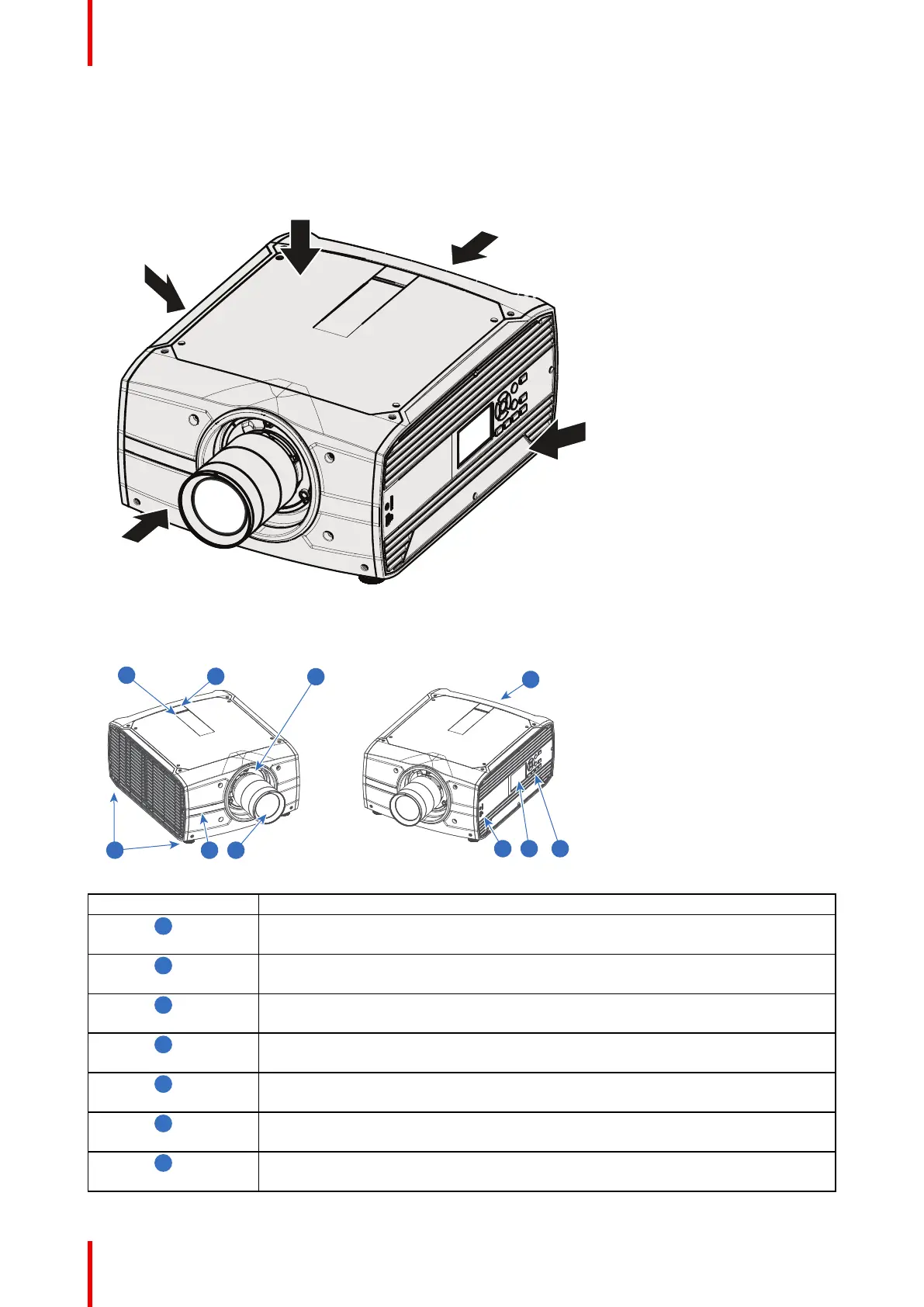

Image 2-1
Projector Items Overview
76
35
1
5
2
4
9
8
Image 2-2
Item No.
Item Description
1
1
LED Warning Indicator
1
2
Adjustable Feet
1
3
Lens
1
4
Lens Holder
1
5
IR Receiver. For receiving remote control signals
1
6
LCD Display
1
7
Keypad Panel. Used for local operation of the projector.
Getting to know the projector.
