601–0443 /03 Balder 29

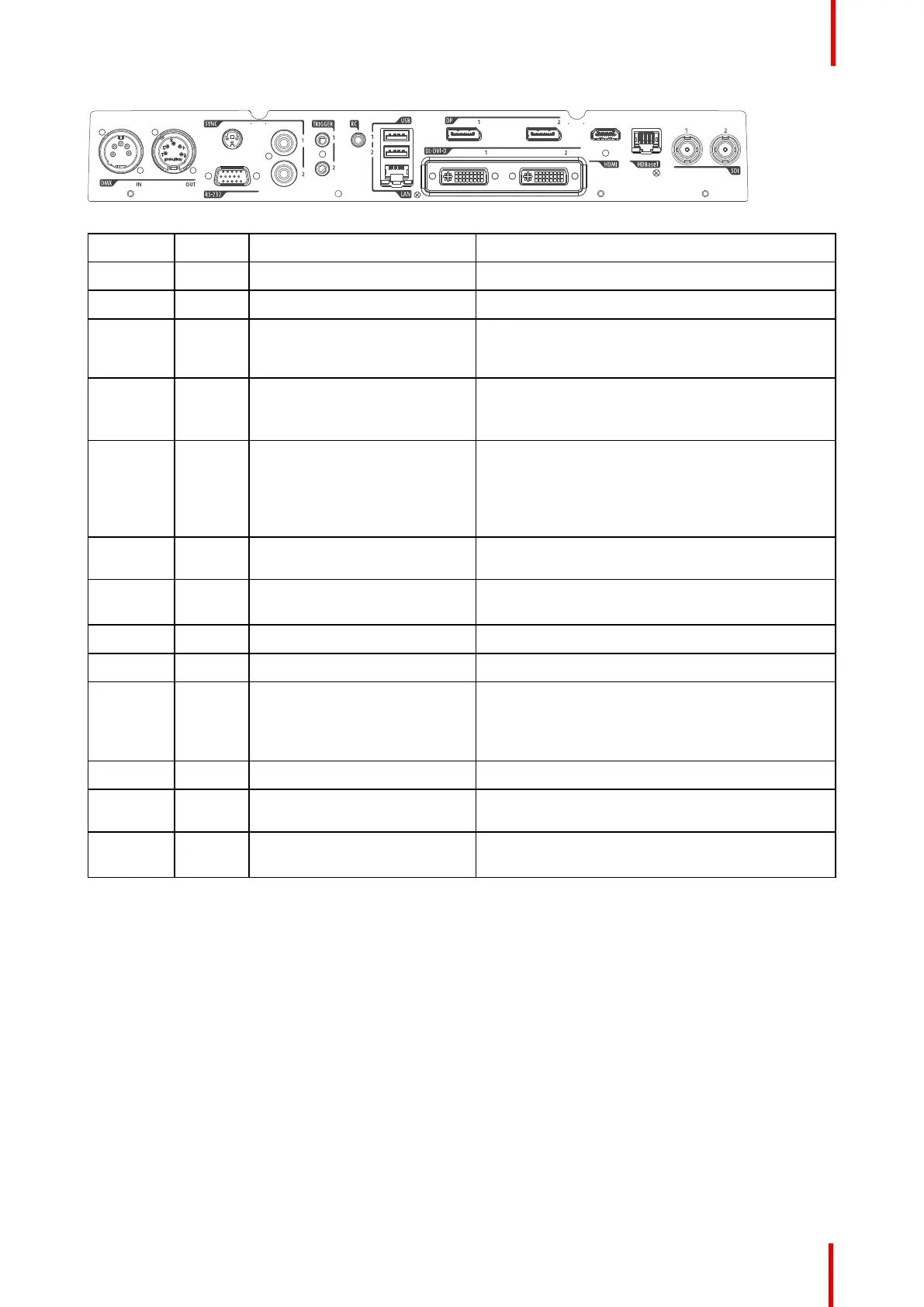

Image 2-10
Name Pcs
Description Purpose
DMX IN 1 DMX 512 input For Projector Control
DMX OUT 1 DMX 512 output For Projector Control
RS-232 1 9–pin DB9 connector For Projector Control. Allows for wired remote
control and monitoring of many projector functions
used in installation environments
Sync 3 BNC Sync Port IN/OUT;
Bidirectional mini-DIN (1x 3D
sync Out, and 2x Sync In/Out)
For Projector ControlThis is mainly used in multiple
projector installations with requirement of
synchronization between the units
Trigger 3 (one in
front,
two on
rear
panel)
12VDC - 0,5A (6W) For Controlling Peripherals, like motorized
screens, curtains etc. Give 12V output when
projector are switched on. NOTE Disconnect the
projector power cable before connecting or
removing the trigger cable
RC 1 Jack connector for wired
remote
For Projector Control
USB 3 USB 2.0 type A, 4 pin( 2x Rear
and 1x Front)
For Software upgrade
LAN 1 Standard RJ45 connector For Projector Control
DP 2 Standard display port For Projector Input
DL-DVI-D 2 Dual DVI-I 1.0 (DVI_D
Functionallity).
For Projector Input. These connectors can also be
used to form one uniform image by feeding half of
the image into each connector. HDCP compliant
for sources up 165 Mhz
HDMI 1 Standard HDMI 2.0 For Projector Input
HDBaseT 1 Standard RJ45 8P8C
Connector
For Projector Control
SDI 2 SDI1 is Input, SDI 2 is pass
through. (out)
For Projector Input
2.11 Color Wheels
About
The Balder Projector is delivered with a standard Color wheel, that is suitable for most applications.
Other colorwheels are available upon request.
Consult Barco sales office or a service partner in order to find the most suitable colorwheel for the specific
application.
2.12 Color Wheel Type
Identifying the installed color wheel
The installed color wheel can be identified in the Home / Status menu.
Getting to know the projector.
To Next Page
