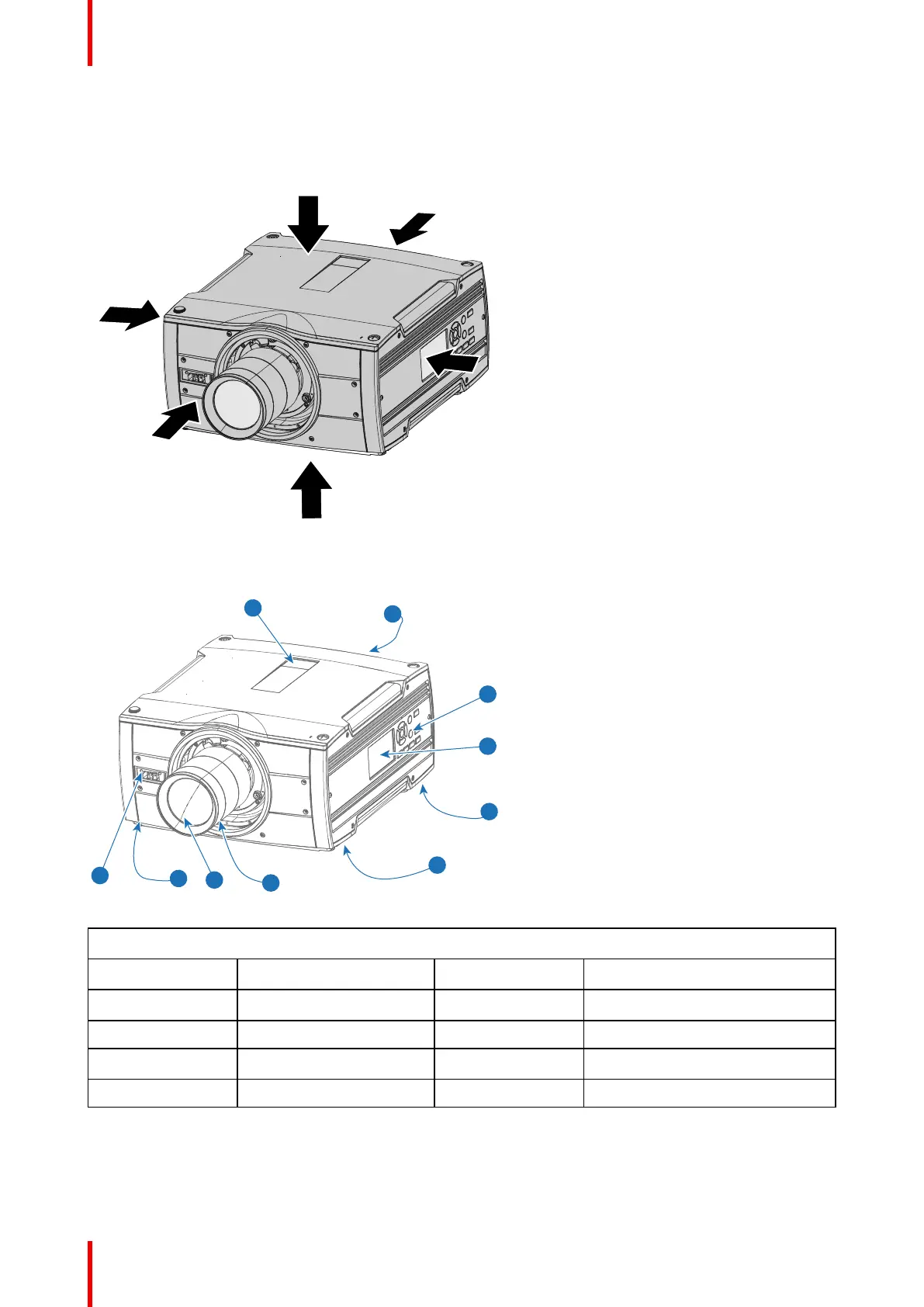

2.1 Location of the main exterior components.
Defining of surfaces
Fron t
Right
Left
Back
Top
Bottom
Image 2–1
Main Components
4
1
7
8
5
2
6
3
5
5
Image 2–2
Main exterior components matrix
Item Number
Component
Item Number
Component
1 IR Receiver top 5 Projector feet (x4)
2 IR Receiver front 6 LCD Panel
3 Lens 7 Key Pad
4 Lens release handle 8 Back Panel / Connectors
